ABB XV C724 BE102 3BHE009017R0102 | VLSCD Board Price Advantage

Overview

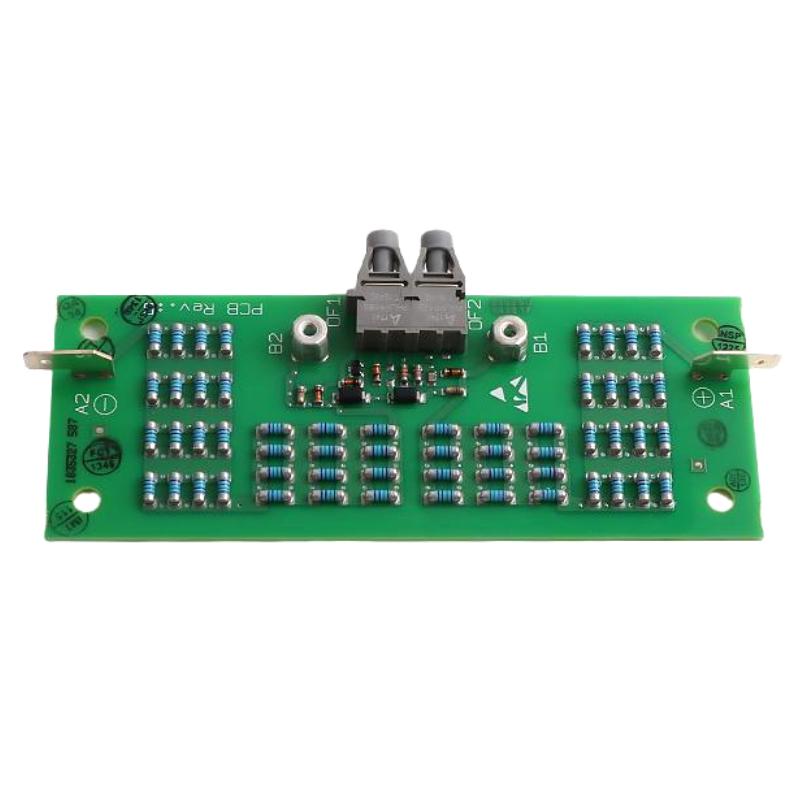

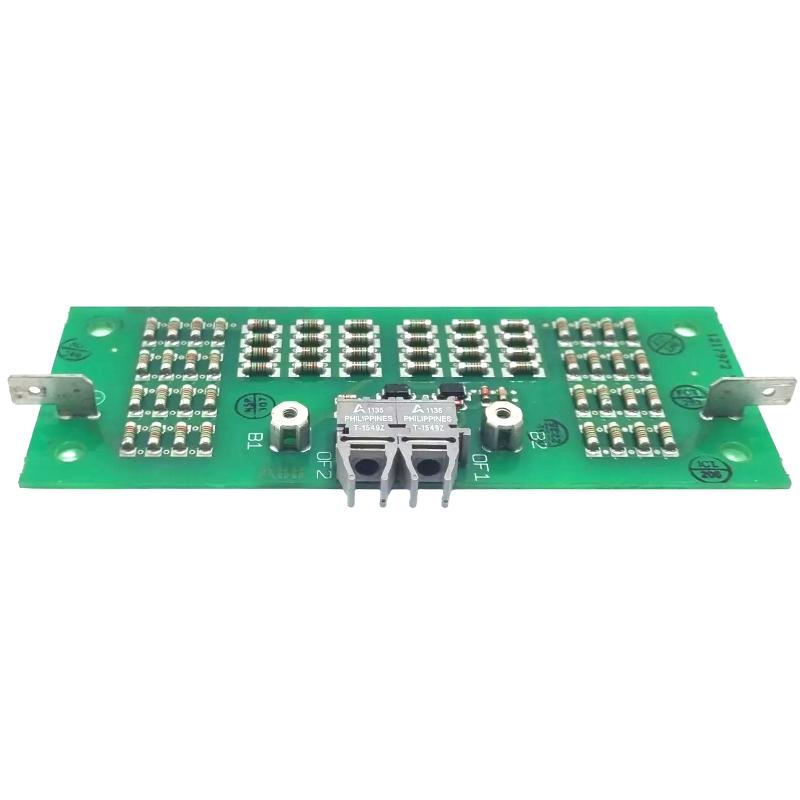

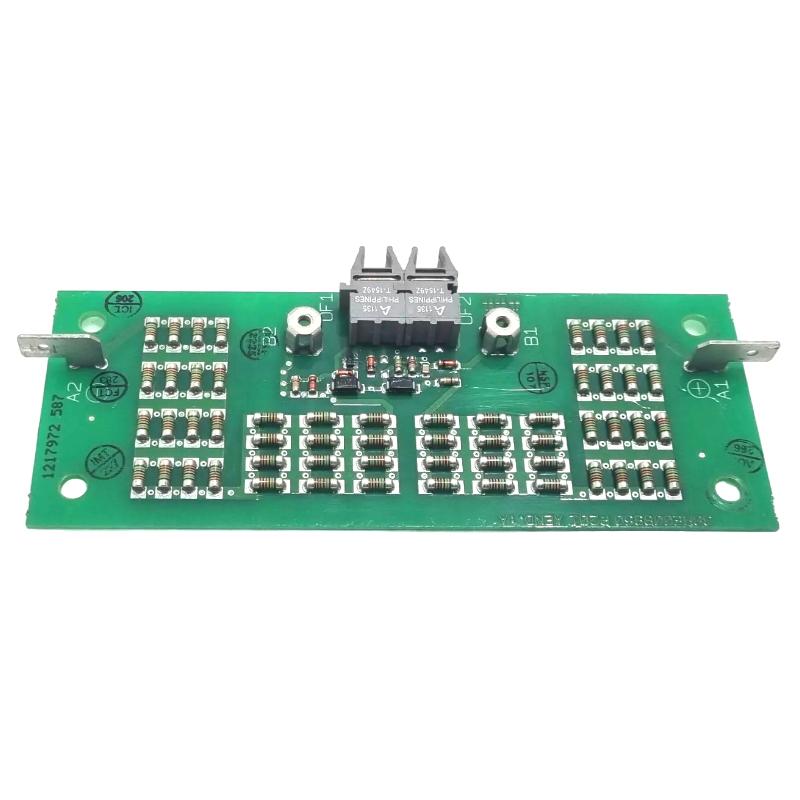

The ABB XV C724 BE102 (3BHE009017R0102) is a voltage‑level short‑circuit detection (VLSCD) printed circuit board designed for industrial drive and automation systems. It continuously monitors voltage levels in critical circuits, detects short‑circuit conditions at high speed, and triggers protective actions to safeguard equipment.

General Information
Brand: ABB
Country of Origin: Sweden
Model: XV C724 BE102
Part Number: 3BHE009017R0102
Series: XV Series Boards
Product Type: VLSCD Board (Coated)
Application: Medium‑/high‑voltage drives, ACS2000/ACS5000/ACS6000 systems, industrial automation fault protection

Power Specifications
Nominal Supply Voltage: 24 V DC
Input Voltage Range: 24 V DC up to 550 V DC (for monitored circuit)
Output Current Capability: Up to approx. 2 A for detection circuit
Protection Features: Over‑voltage and short‑circuit protection, rapid fault detection (response time <10 µs), conformal coating for harsh environments

Communication & Interface
Function: Monitors circuit voltage levels and issues fault signals when short‑circuit is detected
Interface Type: Plug‑in board format compatible with backplane systems in ABB drives
Diagnostics: Built‑in self‑test, status indicator support, fault event signalling to higher‑level control modules

Environmental
Operating Temperature: –40 °C to +85 °C
Storage Temperature: –40 °C to +100 °C
Humidity: 5% to 95% RH (non‑condensing)
Installation: System rack or drive cabinet environment, coated board variant suited for dusty/humid conditions

Dimensions & Weight
Dimensions (L × W × H): Approx. 100 × 130 × 180 mm
Weight: Approx. 0.8 kg

Factory-sealed brand-new goods, quick response, and transparent prices.
