Overview

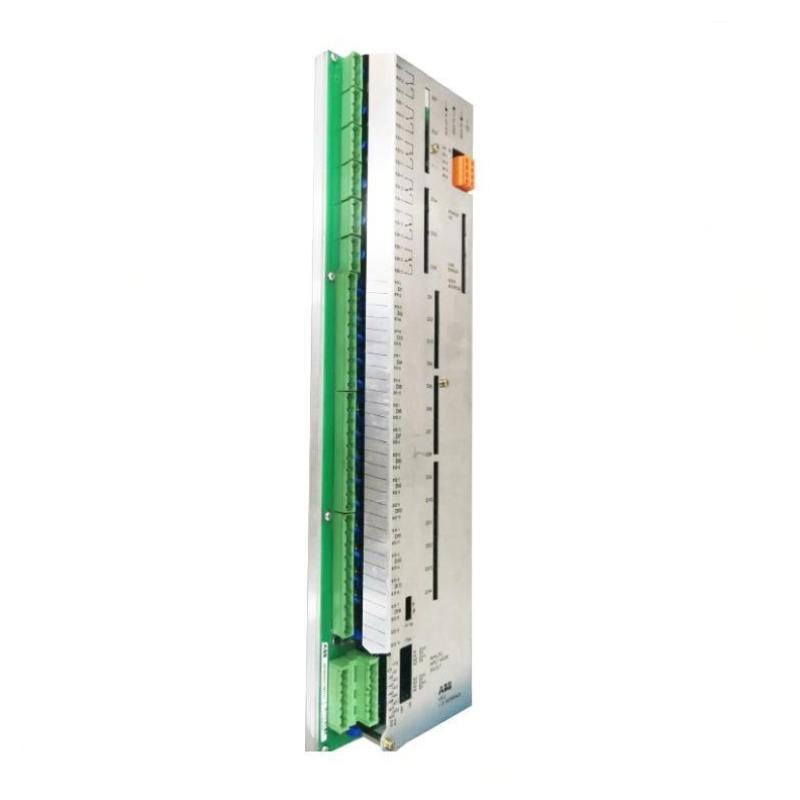

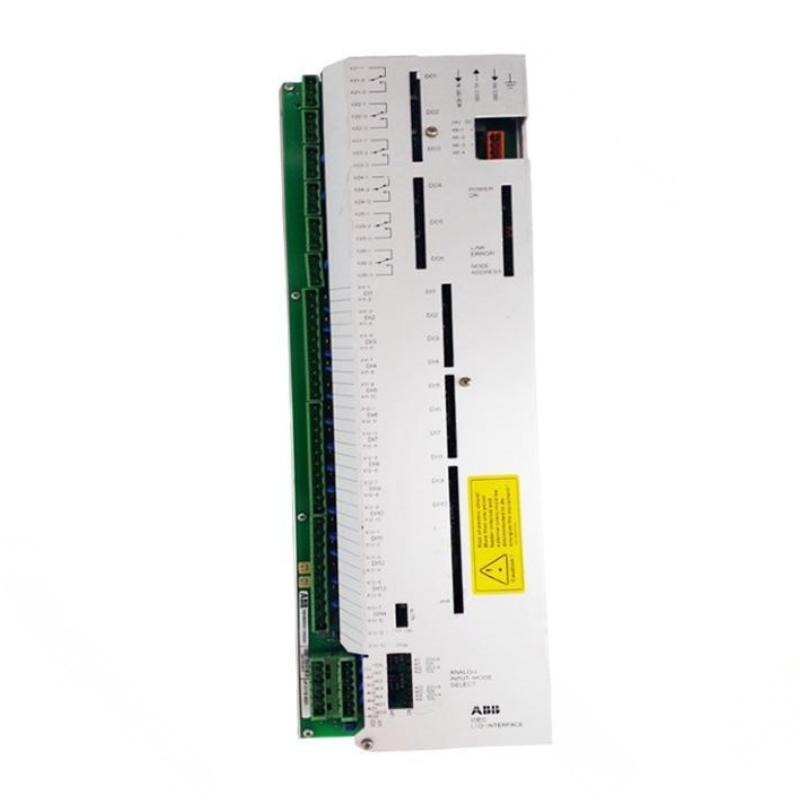

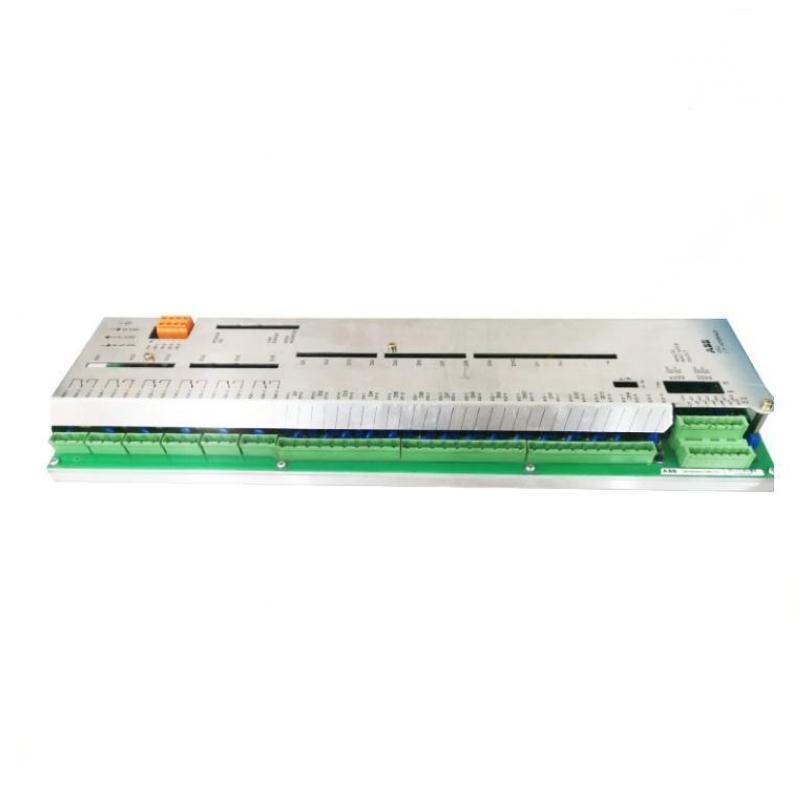

The ABB 3BSE034364R312 is an analog input module within the S800 I/O system. It accepts multiple analog inputs, converts them to process values, and interfaces with programmable controllers for industrial automation.
General Information
Part Number: 3BSE034364R312
Brand / Country of Origin: ABB / Sweden
Product Type: Analog Input Module
Series: S800 I/O
Power Specifications
Rated Supply Voltage: Provided through S800 rack backplane
Power Consumption: Typical for S800 analog modules
Input Signal Types: Supports current, voltage, RTD, and thermocouple inputs depending on configuration
Communication & Interface
Interface Type: S800 bus backplane connection
Channels: Multiple analog channels per module
Diagnostics: Includes per-channel fault detection and module status reporting
Compatibility: Compatible with ABB S800 I/O racks and controllers
Environmental
Operating Temperature: 0 °C to +55 °C
Storage Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (when mounted in enclosure)
Dimensions & Weight
Dimensions (L × W × H): 45 × 102 × 119 mm
Weight: Approx. 0.22 kg
