Overview

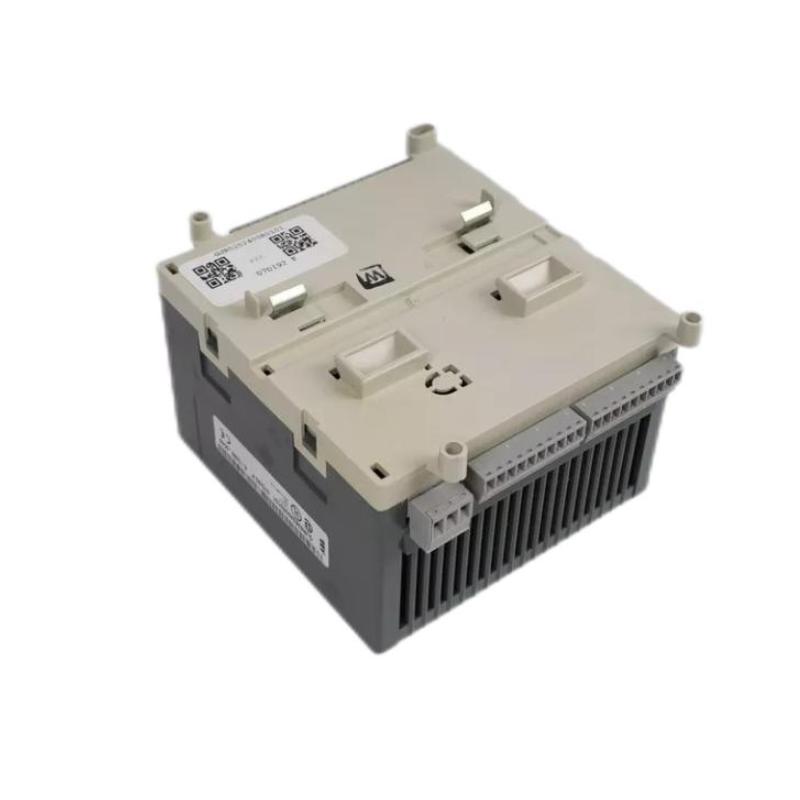

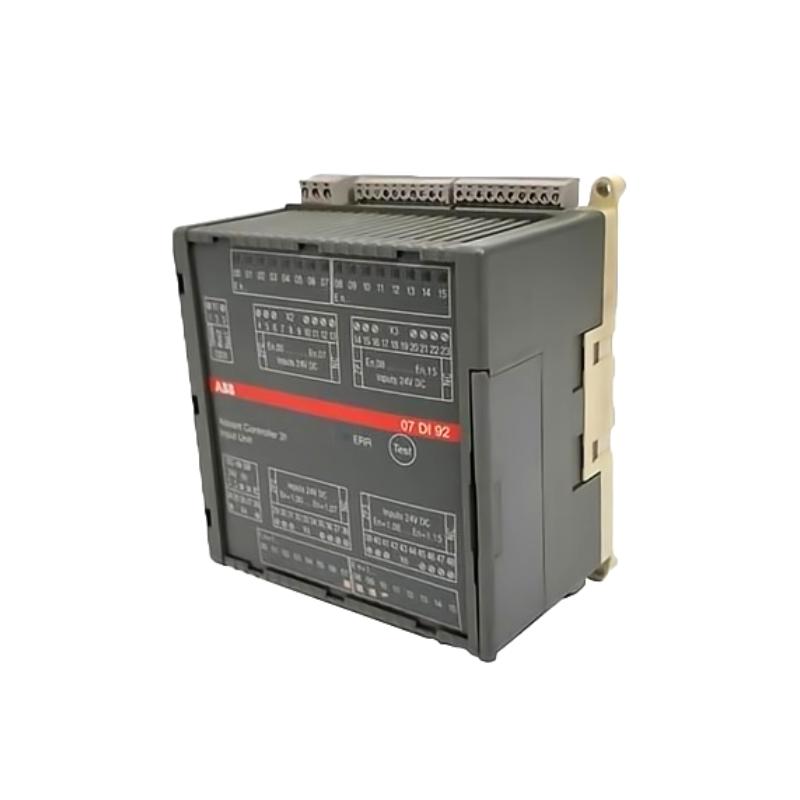

The ABB 07DI92 GJR5252400R4101 is a digital input/output module designed for the Advant Controller 31 system. It manages discrete field signals and ensures efficient data transfer in automation systems.
General Information
Part Number: GJR5252400R4101
Brand / Country of Origin: ABB / Sweden
Product Type: Digital Input/Output Module
Series: Advant Controller 31 (AC31)
Power Specifications
Rated Supply Voltage: 24 V DC
Input Signal Type: Discrete 24 V DC inputs
Channel Count: Typically 32 inputs in four isolated groups
Protection: Galvanic isolation between channel groups and system electronics
Communication & Interface
Interface Type: Backplane bus connection within AC31 rack
Signal Connections: Discrete input/output terminals with status LEDs
Diagnostics: Per‑channel fault indication and module health monitoring
Compatibility: Compatible with ABB AC31 I/O racks and system modules
Environmental
Operating Temperature: 0 °C to +55 °C
Storage Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in enclosure
Dimensions & Weight
Dimensions (L × W × H): 120 × 140 × 85 mm
Weight: 0.59 kg
