Overview

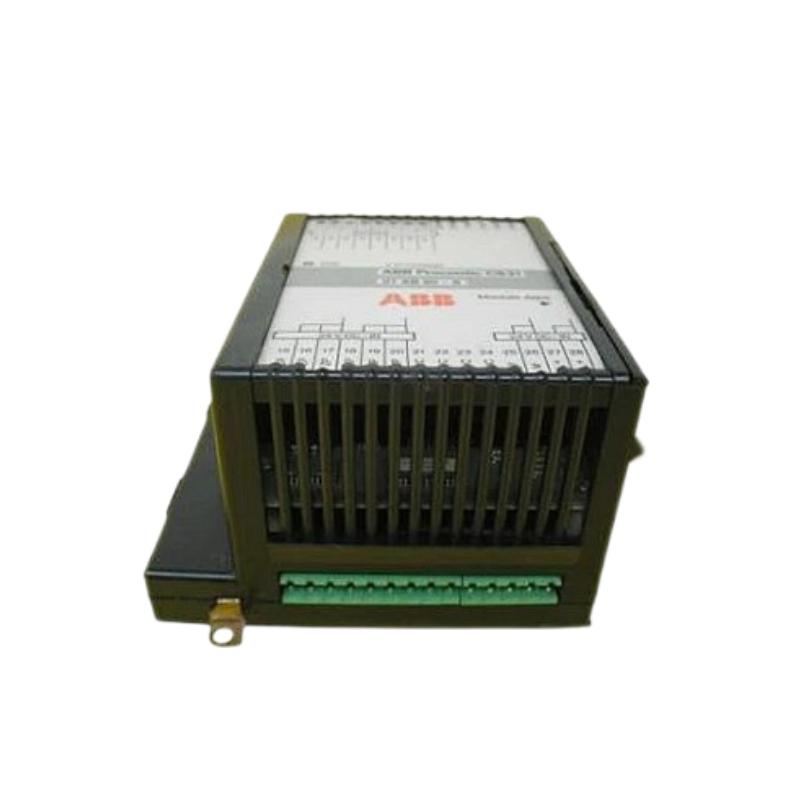

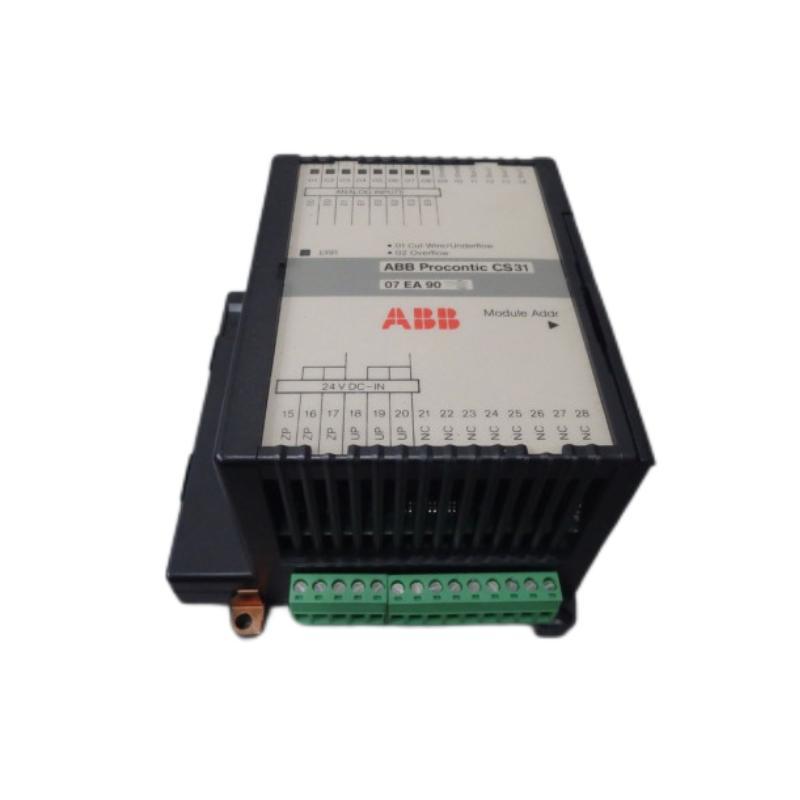

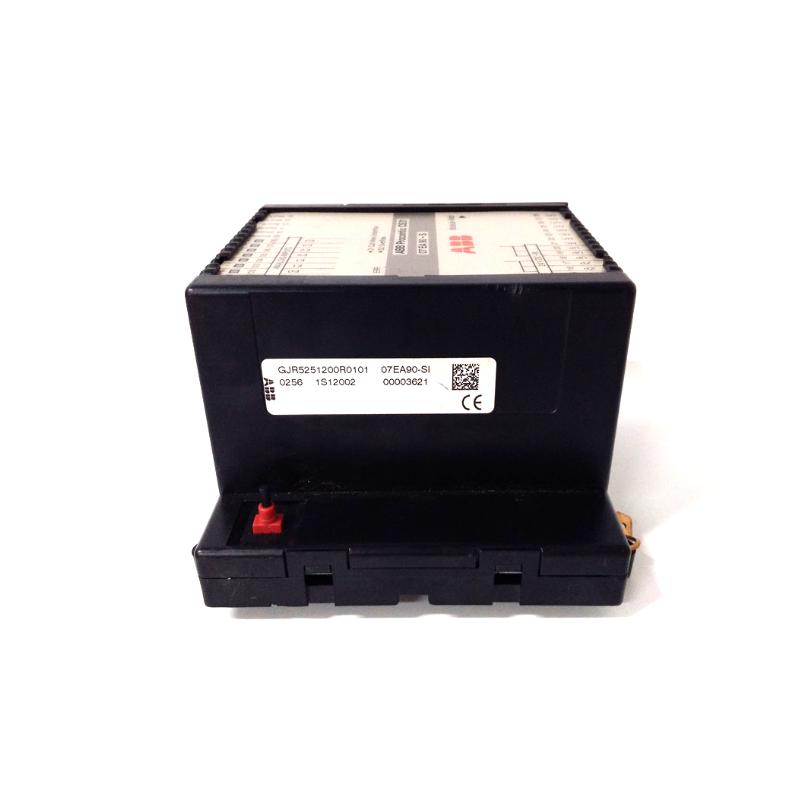

The ABB 07EA90 GJR5251200R0101 is an analog input module designed for ABB’s automation I/O systems. It converts a variety of sensor signals into digital data to support precision control and monitoring applications.
General Information
Part Number: GJR5251200R0101
Brand: ABB
Country of Origin: Sweden
Product Type: Analog Input Module
Series: Advant / CS31 I/O
Power Specifications
Rated Supply Voltage: 24 V DC (nominal)
Supported Signal Types: 0–10 V, 4–20 mA, and other analog input types
Accuracy: Approx. ±0.5% full scale
Input Impedance: Approximately 100 kΩ for voltage signals
Communication & Interface
Interface Type: Backplane bus connection for module‑to‑rack communication
Input Channels: Multiple analog input channels per module (configuration dependent)
Diagnostics: Supports channel‑based fault detection and status reporting
Compatibility: Compatible with ABB CS31 rack systems and signal termination units
Environmental
Operating Temperature: 0 °C to +55 °C
Storage Temperature: −25 °C to +75 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 in cabinet installation
Dimensions & Weight
Dimensions (L × W × H): 120 × 140 × 85 mm (approximate)
Weight: 0.59 kg
