Overview

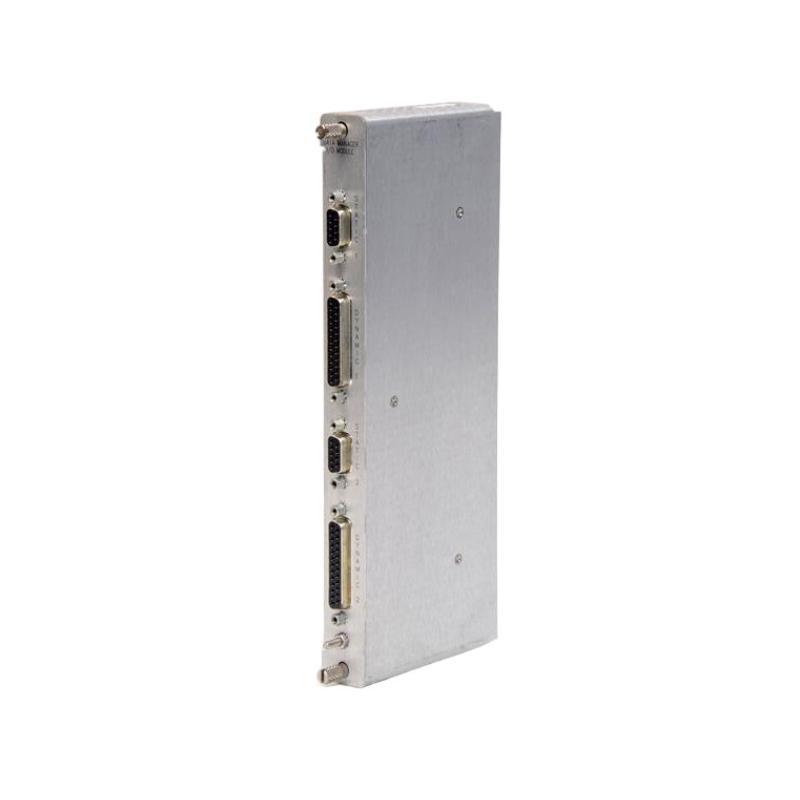

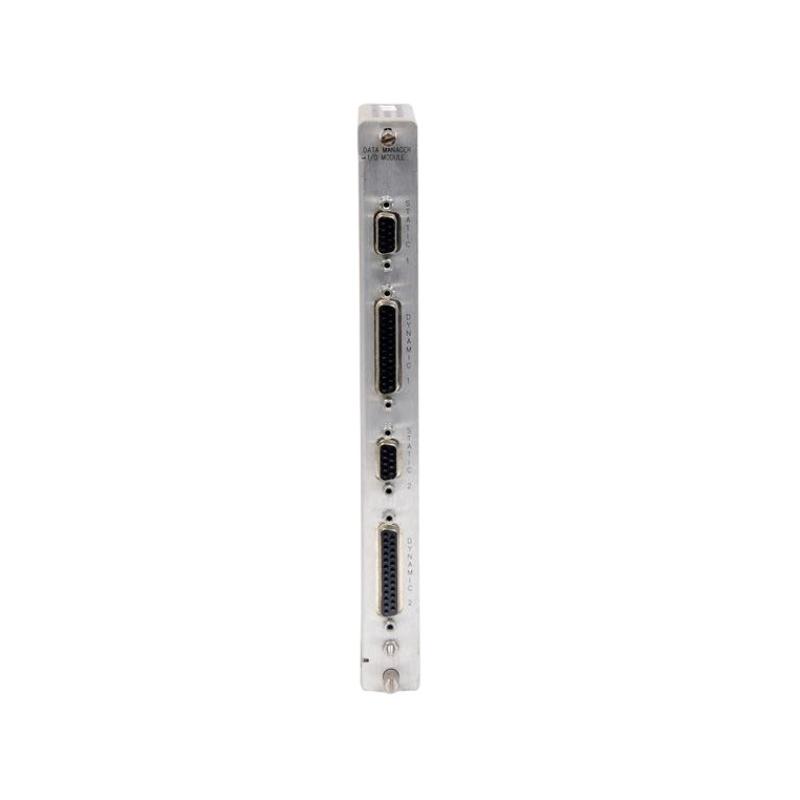

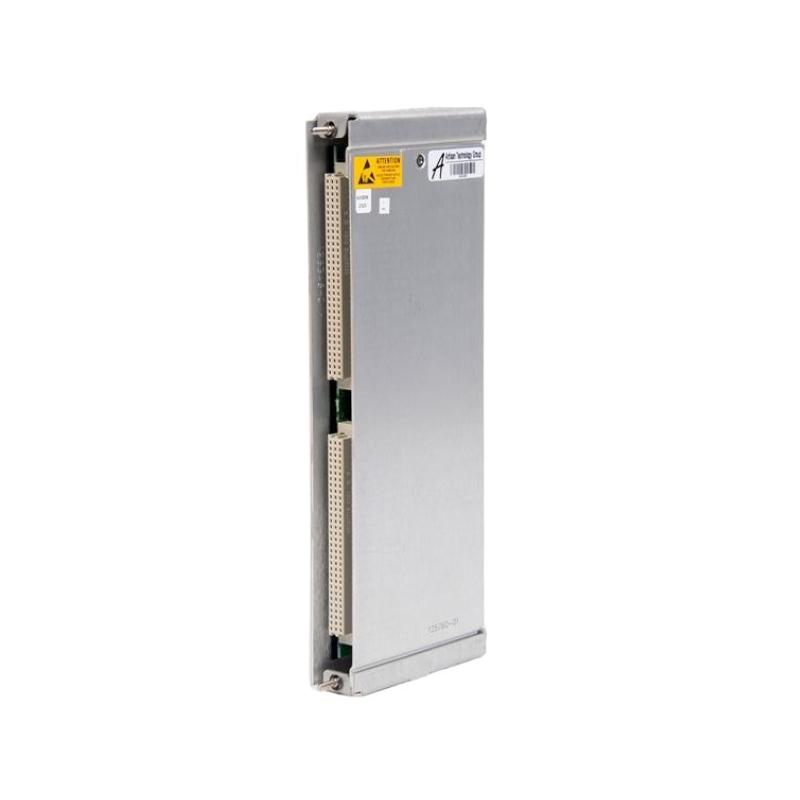

The Bently Nevada 3500/20 125760‑01 is an I/O data manager module designed for the 3500 series rack system. It provides communication and data handling functions within the rack environment.
General Information
Part Number: 125760‑01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Type: Data Manager I/O Module
Mounting: Slot‐in within the 3500/20 rack system
Technology: Rack communication interface for data transfer and rack coordination
Power Specifications
Supply Voltage: 24 V DC (typical for rack modules)
Power Consumption: Approximate low power usage consistent with data management module class
Protection: Module includes standard industrial protections such as reverse‐polarity and transient suppression
Communication & Interface

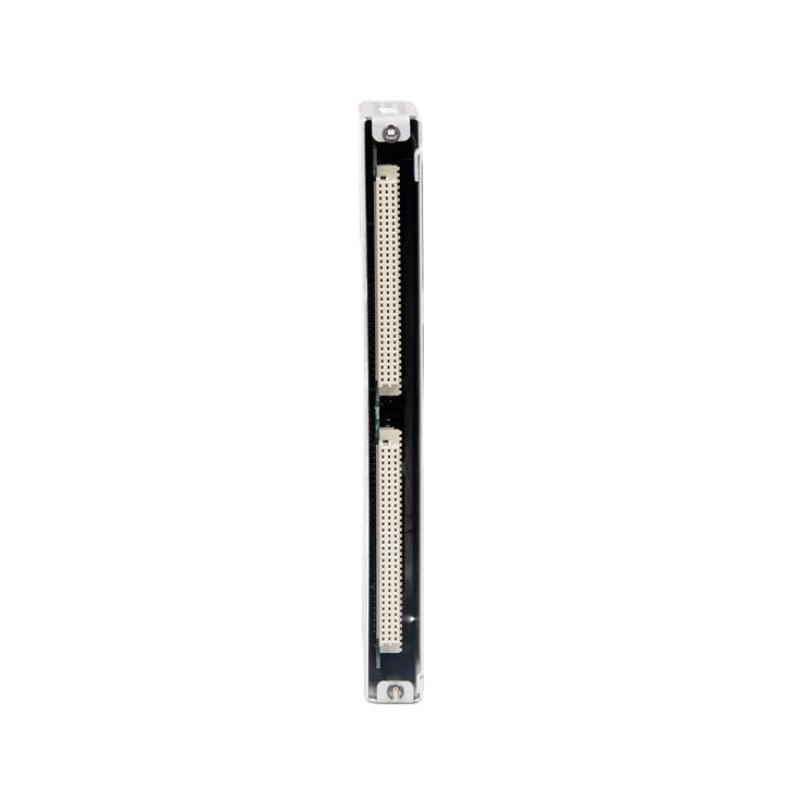

Interface: Backplane connection to the 3500/20 series rack bus
Function: Manages communication between rack modules and external system interfaces
Diagnostics: Module includes status and fault monitoring for communication integrity
Environmental
Operating Temperature: −30 °C to +65 °C
Humidity: Up to 95% RH, non‐condensing
Installation Environment: Industrial control rack within machinery protection system
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 99.1 mm
Weight: 0.45 kg
