Overview

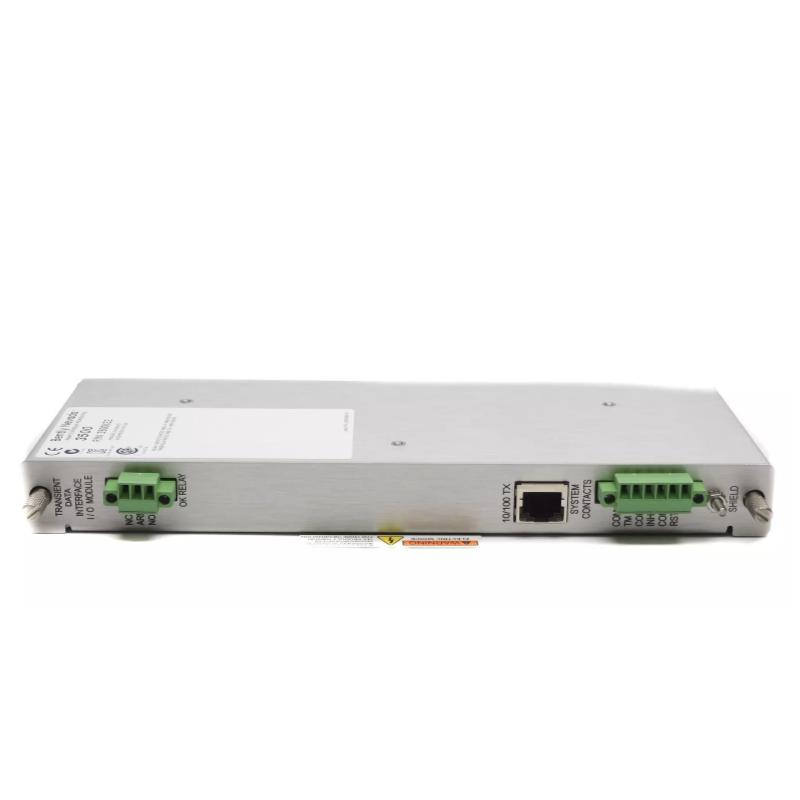

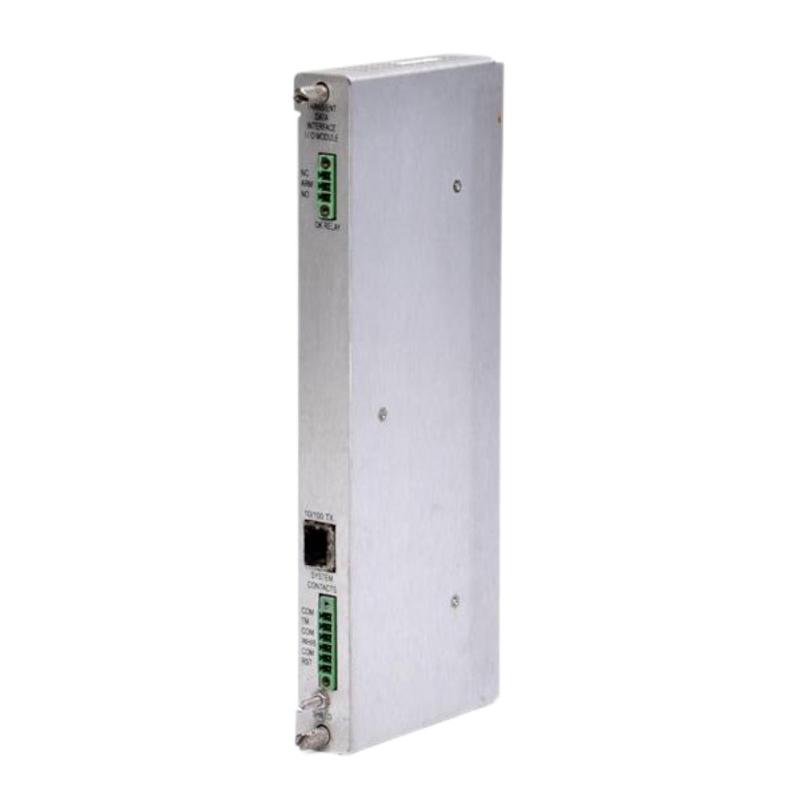

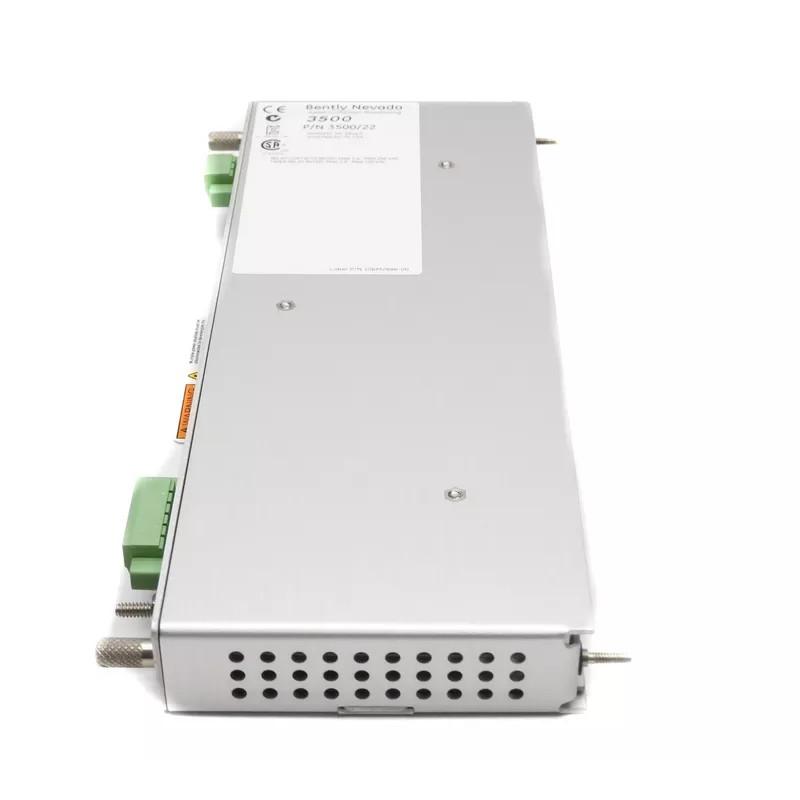

The Bently Nevada 3500/22M 146031‑01 is an Ethernet I/O module for the 3500/22M Transient Data Interface system. It enables high‑speed data exchange and supports both steady‑state and transient waveform capture for machinery monitoring.
General Information
Part Number: 146031‑01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Type: Ethernet I/O Module
Mounting: Full‑height module slot in the 3500/22M rack
Technology: Interfaces the module rack to external networks and handles I/O tasks for the monitoring system
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approx. 10.5 W typical
Protection: Reverse‑polarity and transient‑voltage protection
Communication & Interface

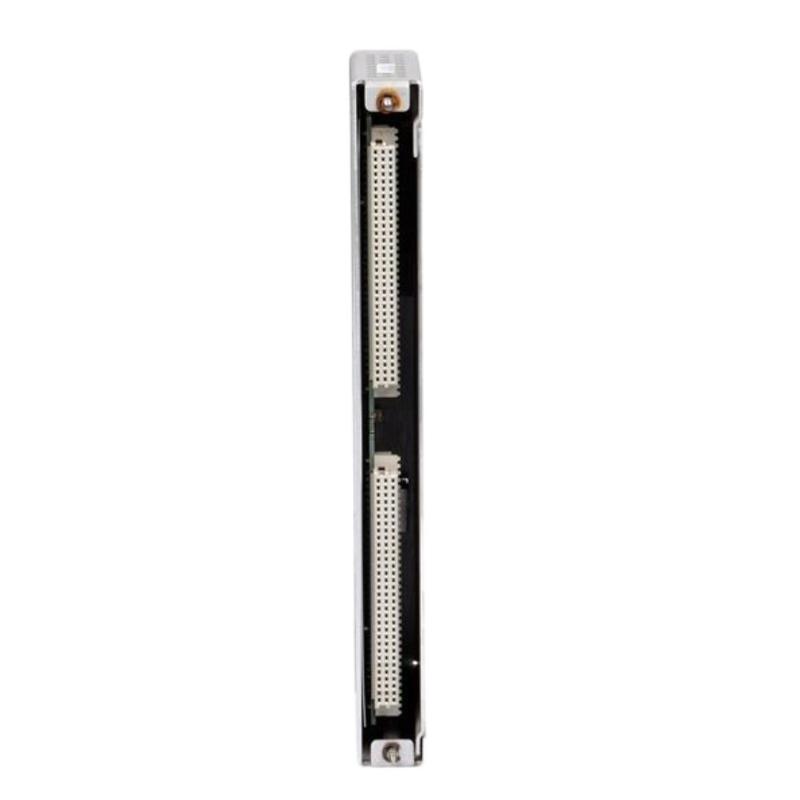

Interface: Backplane connection to the 3500 rack bus and Ethernet link for external data exchange
Diagnostics: Module status LEDs and fault-indication signals for communication and network health
Environmental
Operating Temperature: –30 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet within machinery protection system
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 99.1 mm
Weight: 0.2 kg
