Overview

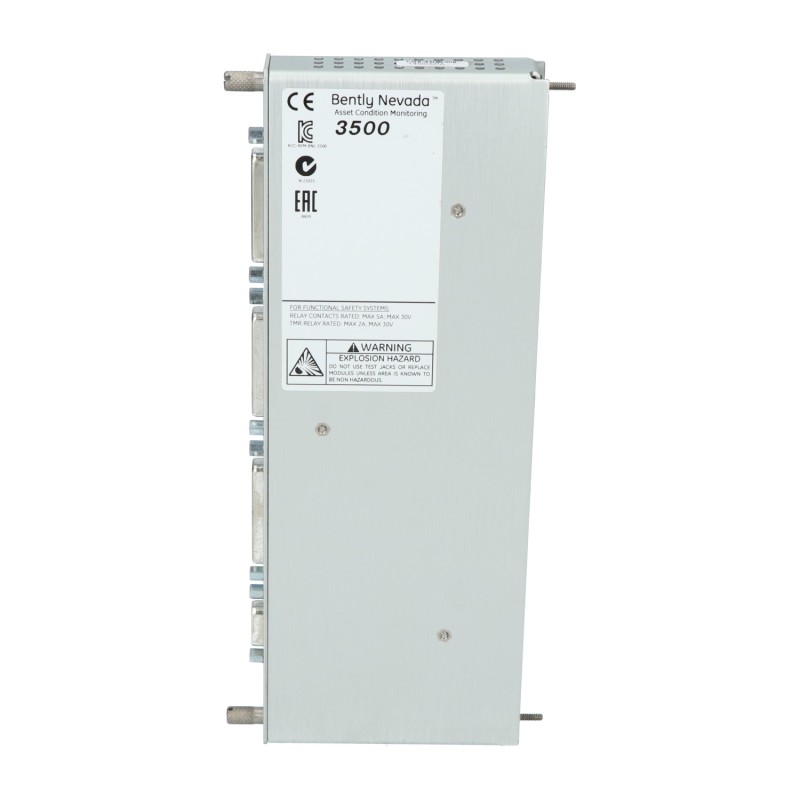

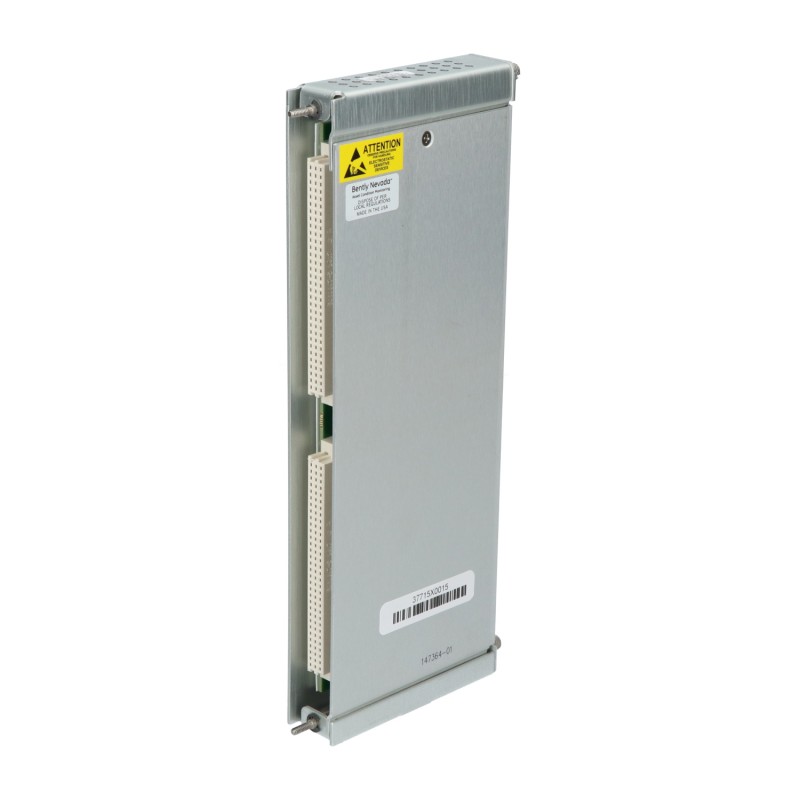

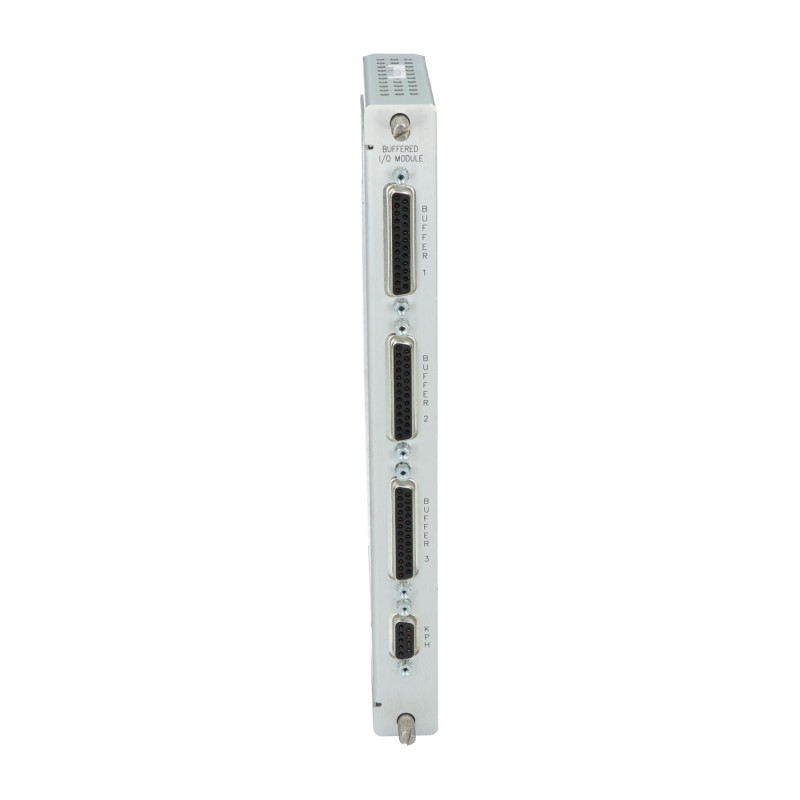

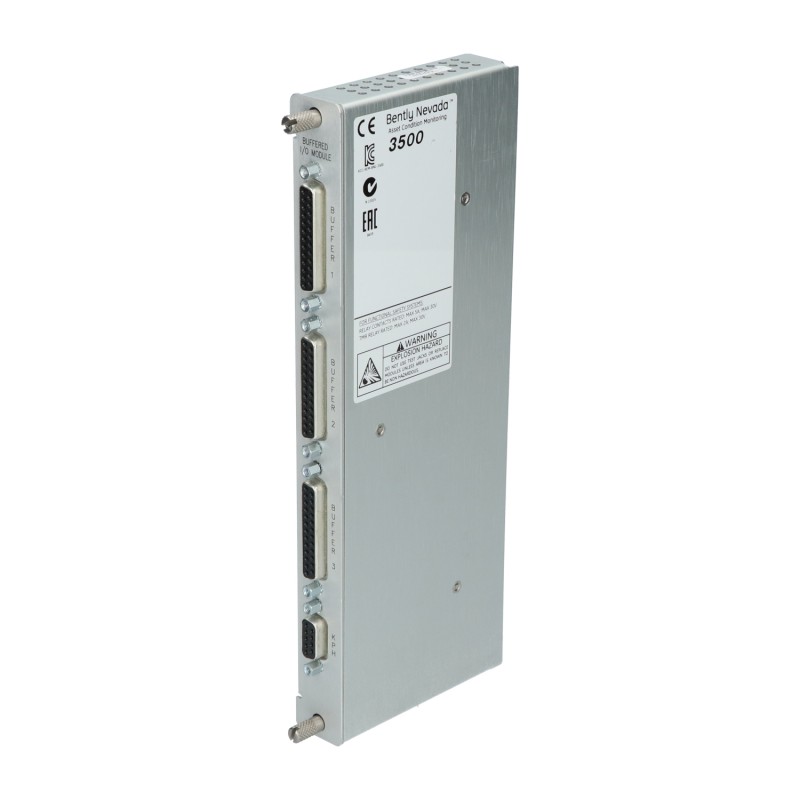

The Bently Nevada 3500/22M 147364‑01 is a buffered signal output module designed for use in the 3500/22M Transient Data Interface rack system. It provides conditioned outputs of signal data for external systems and instrumentation.
General Information
Part Number: 147364‑01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Type: Buffered Signal Output Module
Mounting: Full‑height slot in the 3500/22M rack
Technology: Provides isolation and buffering of internal signals to external devices, maintaining signal integrity and system protection.
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Creates low additional load due to buffered output circuitry
Protection: Includes reverse‑polarity and transient suppression protection
Communication & Interface
Interface: Backplane connection to the 3500/22M rack bus and external analog/digital output terminals
Function: Transmits selected monitoring data externally with minimal interference and enhanced signal quality
Diagnostics: Module‑level status indicators and fault reporting for output signal integrity
Environmental
Operating Temperature: –30 °C to +65 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet within condition‑monitoring / machinery‑protection systems
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 99.1 mm
Weight: 0.2 kg
