Overview

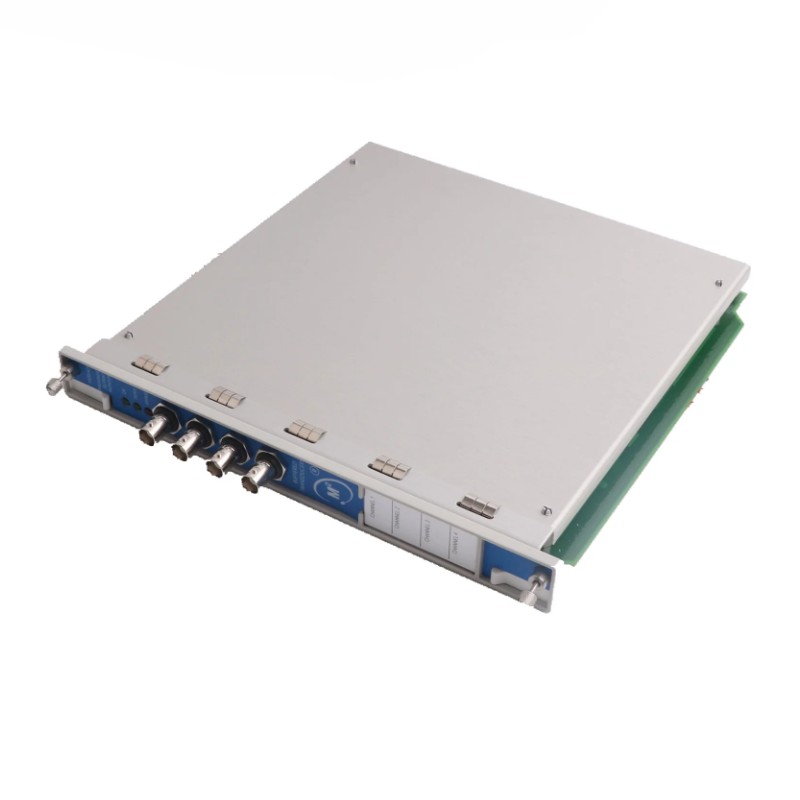

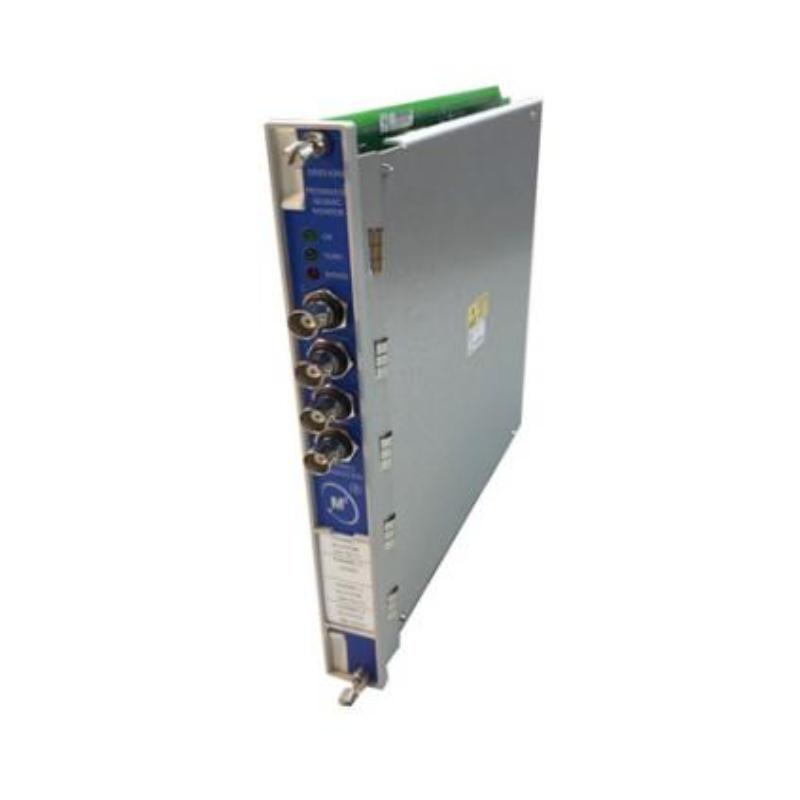

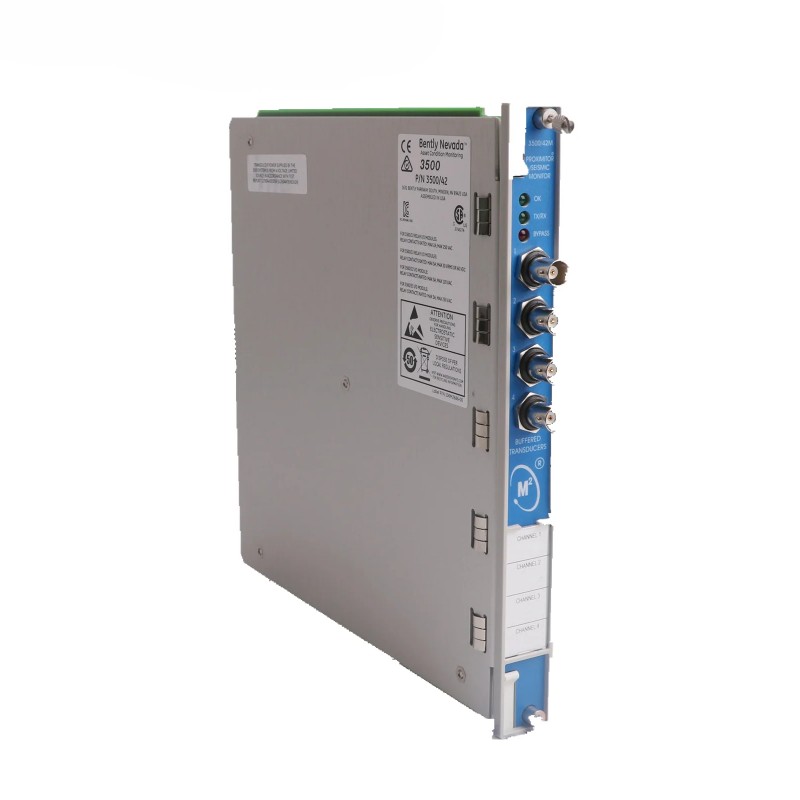

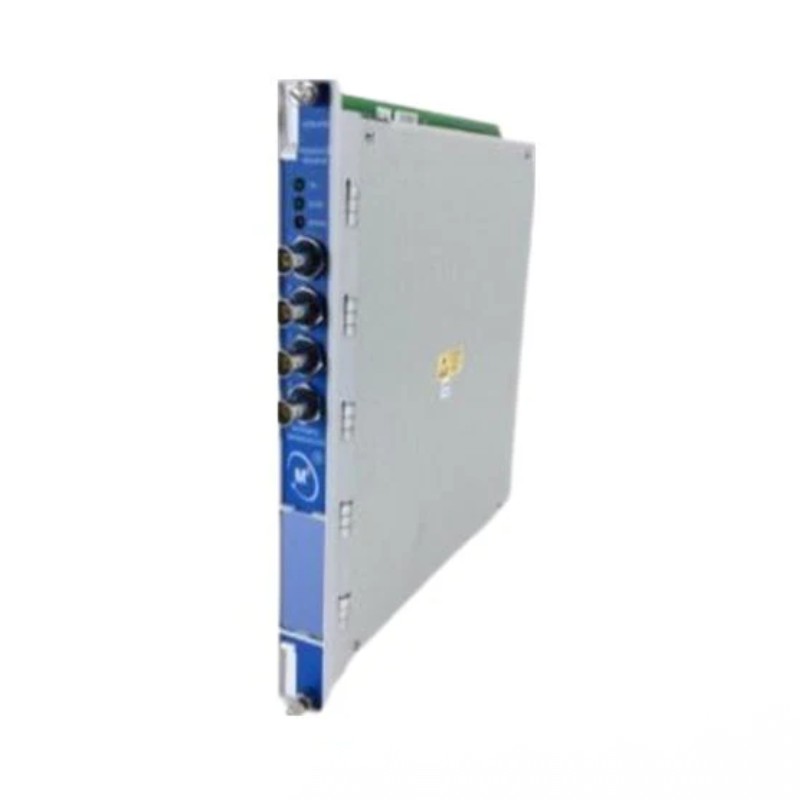

The Bently Nevada 3500/42 (125672-02) is a high-precision vibration monitor module designed for machinery protection and condition monitoring. It provides reliable real-time measurements of vibration and displacement, helping prevent equipment failures and optimize maintenance schedules. Widely used in turbines, compressors, and rotating machinery, this module ensures accurate monitoring in industrial environments.
General Information
Brand: Bently Nevada
Country of Origin: United States
Part Number: 125672-02
Series: 3500 Series
Product Type: Vibration Monitor Module
Mounting Method: Rack or panel-mounted in 3500 series monitoring system
Function: Monitors machinery vibration, provides alarm and shutdown signals
Technology: Precision analog-to-digital conversion with fault diagnostics
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 5 W
Input Source: Supplied via 3500 system backplane
Protection Features: Overvoltage and reverse polarity protection
Indicators: LED indicators for power, channel status, and alarm conditions
Communication & Interface
Communication Ports: System bus for 3500 series integration
Supported Protocols: Proprietary Bently Nevada data communication protocols
Diagnostics: Built-in self-test and channel fault detection
Configuration: Via system configuration software or local service terminal
Reset Options: Supports hardware and software reset
Environmental
Operating Temperature: −40 to +70 °C
Storage Temperature: −55 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for industrial cabinet installation)
Cooling Method: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 163.1 mm
Weight: Approx. 0.46 kg
