Overview

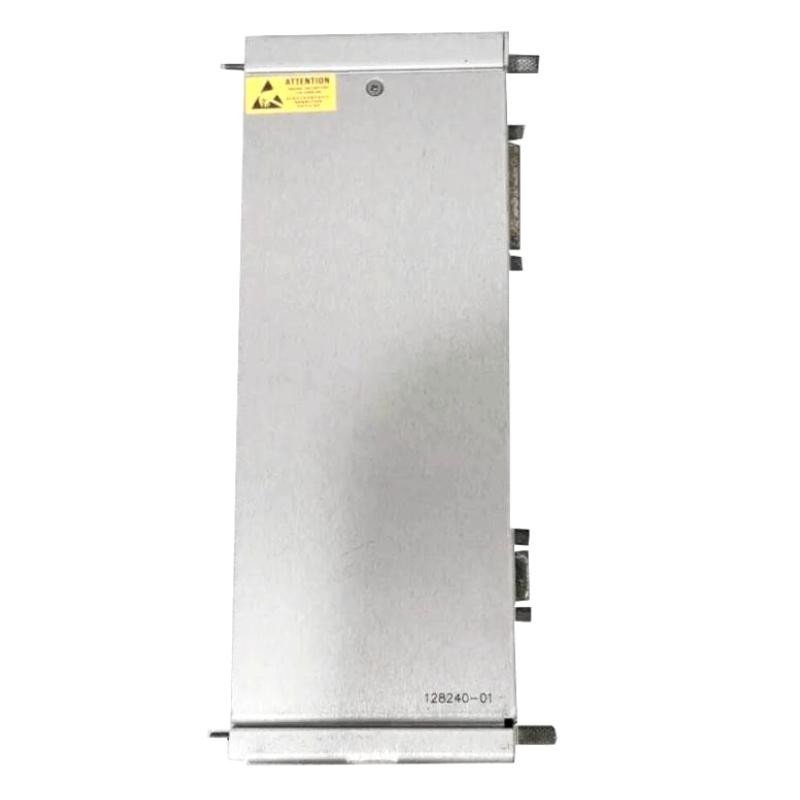

The Bently Nevada 3500/42 (128240-01) is a precision vibration monitor module designed for industrial machinery protection and condition monitoring. It accurately measures vibration and displacement signals to detect early signs of equipment issues. Ideal for turbines, compressors, and rotating machinery, this module helps improve reliability, prevent failures, and optimize maintenance schedules.
General Information
Brand: Bently Nevada
Country of Origin: United States

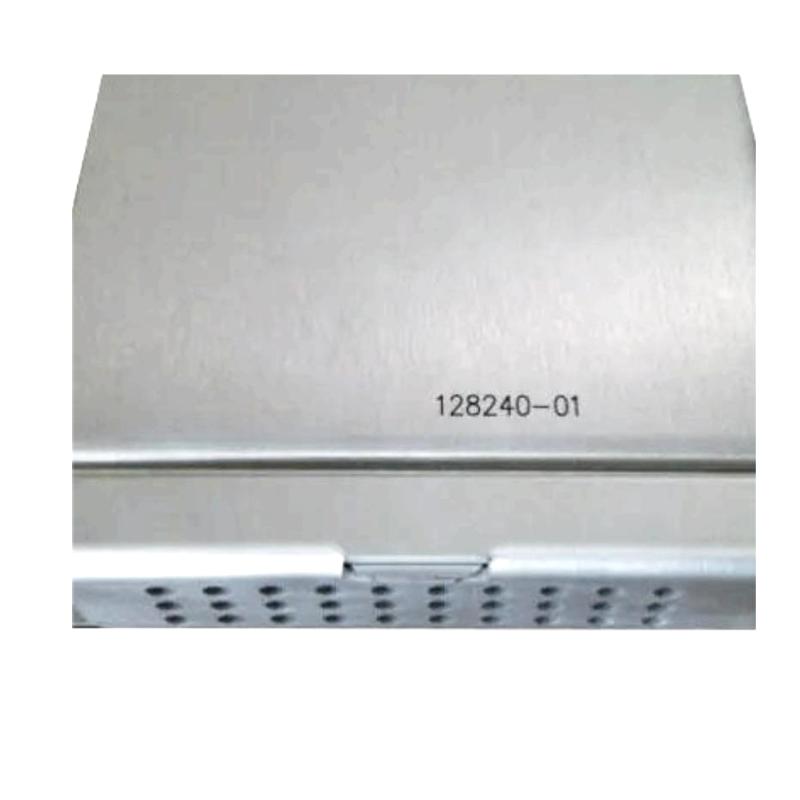

Part Number: 128240-01
Series: 3500 Series
Product Type: Vibration Monitor Module
Mounting Method: Rack or panel-mounted within 3500 series monitoring system
Function: Monitors machinery vibration, triggers alarms, and provides protection signals
Technology: High-precision analog-to-digital conversion with integrated diagnostics
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 5 W
Input Source: Supplied via 3500 system backplane
Protection Features: Overvoltage and reverse polarity protection
Indicators: LEDs for power, channel status, and alarm indication
Communication & Interface
Communication Ports: System bus interface for 3500 series integration
Supported Protocols: Proprietary Bently Nevada communication protocols
Diagnostics: Self-test functionality and channel fault detection
Configuration: Through system software or local service terminal
Reset Options: Supports both hardware and software reset
Environmental
Operating Temperature: −40 to +70 °C
Storage Temperature: −55 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for industrial cabinet installation)
Cooling Method: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 163.1 mm
Weight: Approx. 0.46 kg
