Overview

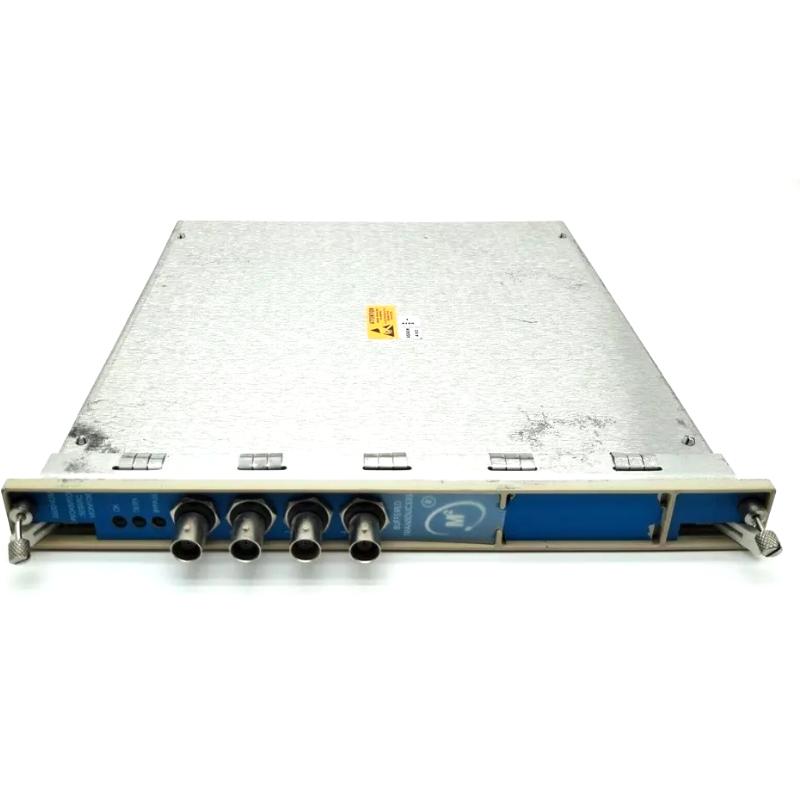

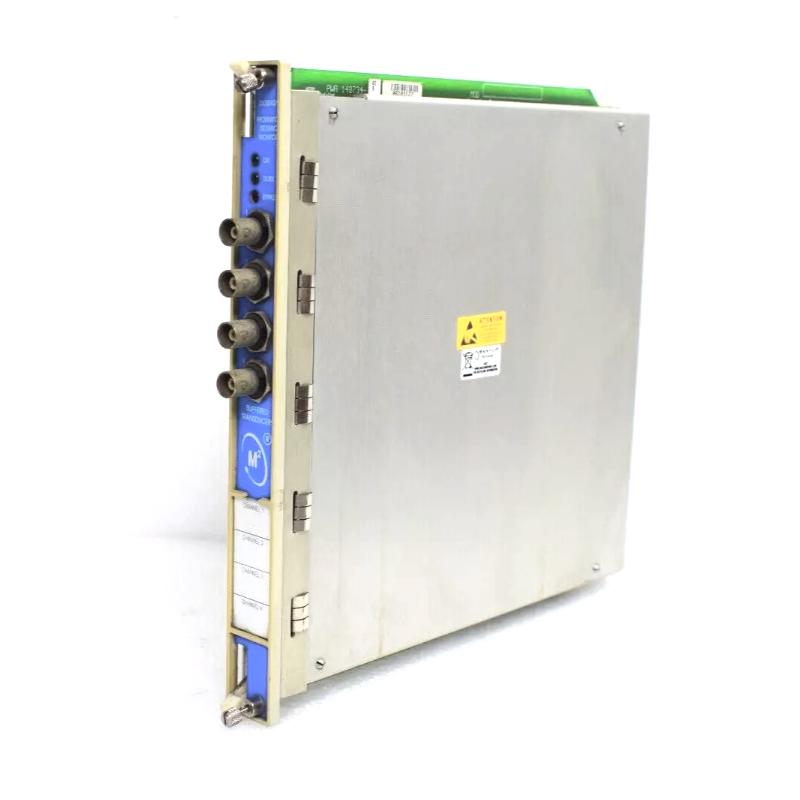

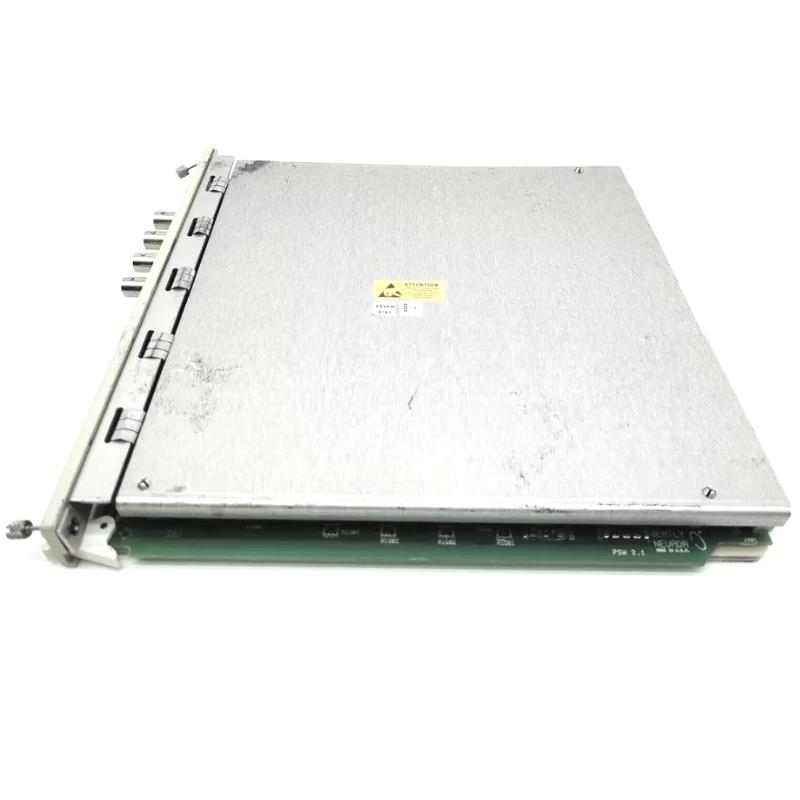

The Bently Nevada 3500/42 (140734-02) is a high-accuracy vibration monitor module designed for industrial machinery protection and condition monitoring. It measures vibration and displacement signals to detect early signs of equipment faults, helping prevent failures and optimize maintenance schedules. This module is suitable for turbines, compressors, and other rotating machinery, providing reliable operation in demanding industrial environments.
General Information
Brand: Bently Nevada
Country of Origin: United States
Part Number: 140734-02
Series: 3500 Series
Product Type: Vibration Monitor Module
Mounting Method: Rack or panel-mounted within 3500 series monitoring system
Function: Monitors machinery vibration, provides alarm outputs, and supports protection logic
Technology: High-precision analog-to-digital conversion with integrated diagnostics
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 5 W
Input Source: Supplied via 3500 system backplane
Protection Features: Overvoltage and reverse polarity protection
Indicators: LEDs for power, channel status, and alarm conditions
Communication & Interface
Communication Ports: System bus interface for 3500 series integration
Supported Protocols: Proprietary Bently Nevada communication standards
Diagnostics: Built-in self-test and channel fault detection
Configuration: Configurable via system software or local service terminal
Reset Options: Supports both hardware and software reset
Environmental
Operating Temperature: −40 to +70 °C
Storage Temperature: −55 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for industrial cabinet installation)
Cooling Method: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 163.1 mm
Weight: Approx. 0.46 kg
