Overview

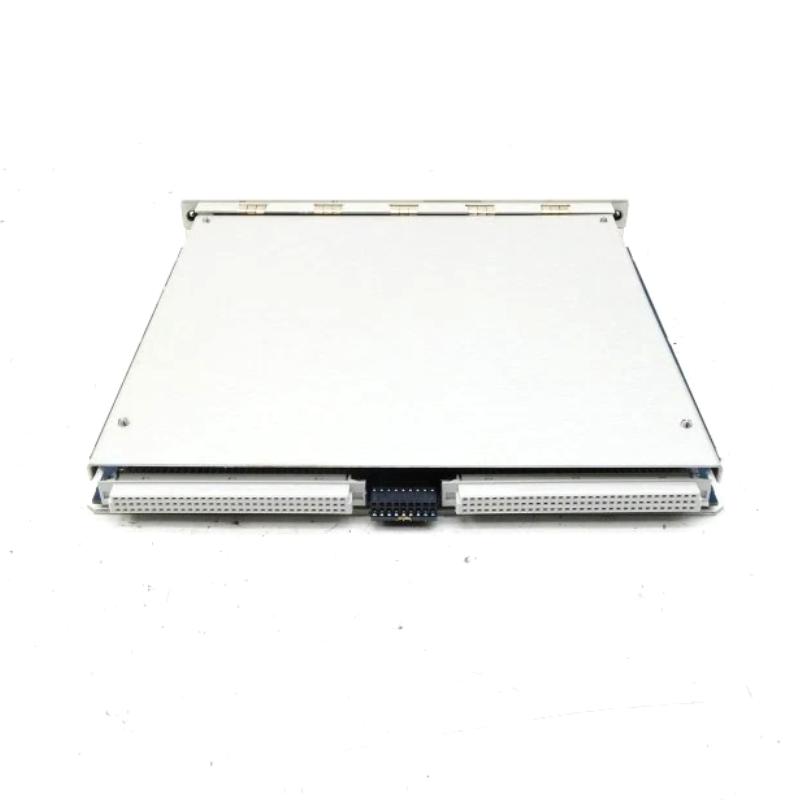

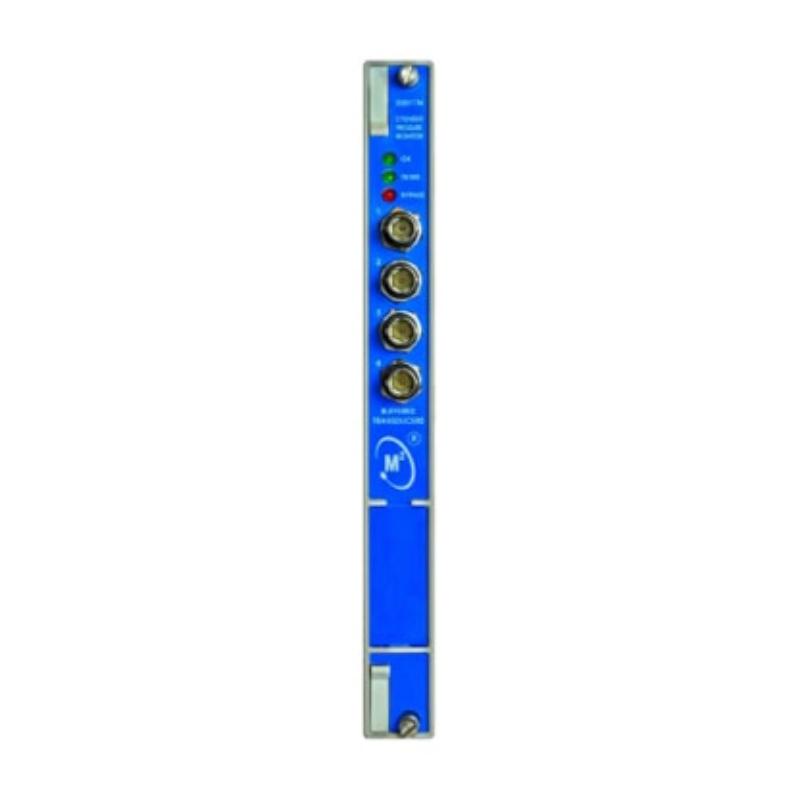

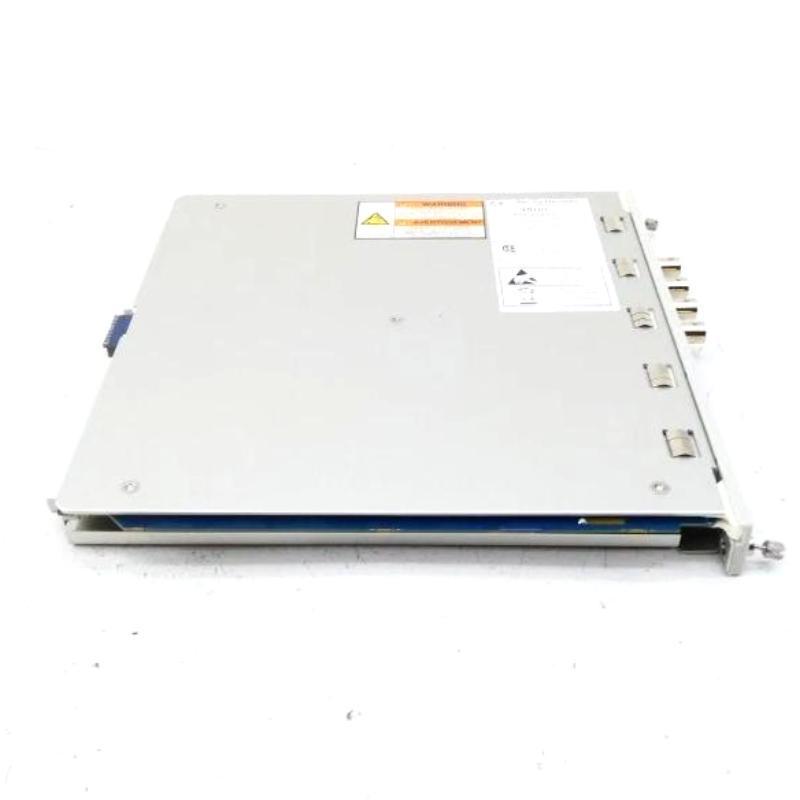

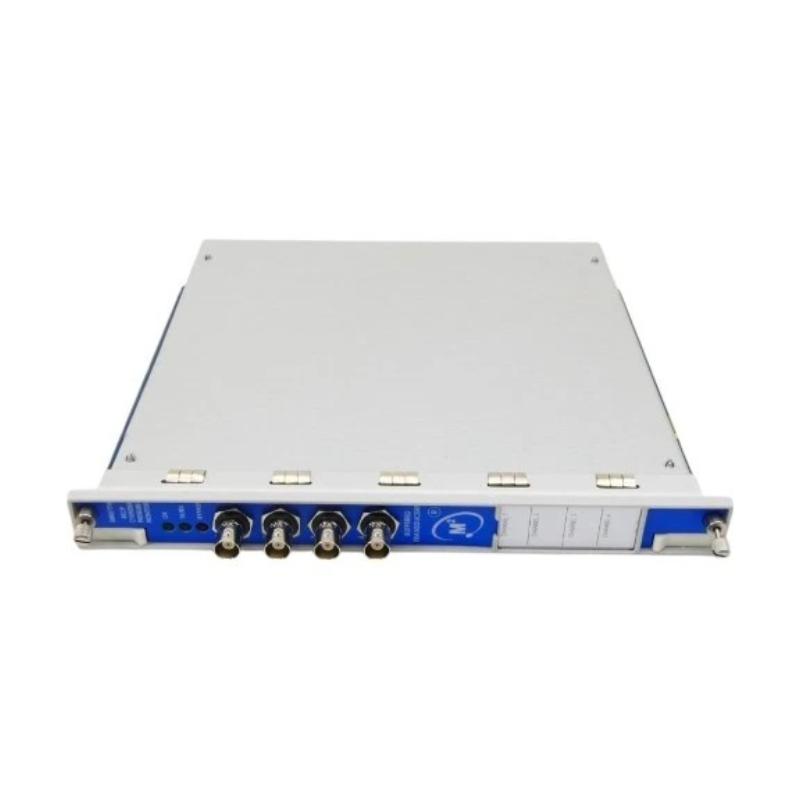

The Bently Nevada 3500/77M (176449-07) is an industrial vibration monitoring module designed for machinery protection and condition monitoring. It provides real-time detection of mechanical faults such as imbalance, misalignment, and bearing issues, supporting predictive maintenance and safe operation.
General Information
Brand: Bently Nevada
Country of Origin: United States
Model Number: 3500/77M 176449-07
Product Type: Vibration Monitoring Module
Application: Machinery condition monitoring, industrial protection systems, and predictive maintenance
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approx. 5 W
Protection: Over-voltage and reverse-polarity protection
Communication & Interface
Interface Type: Inputs for proximity probes, accelerometers, and process signals
Connectivity: Mounts into 3500 monitoring rack and connects to system backplane
Diagnostics: LED indicators for module status, faults, and signal presence
Environmental
Operating Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation: Industrial control cabinets or monitoring racks
Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm
Weight: 0.91 kg
