Overview

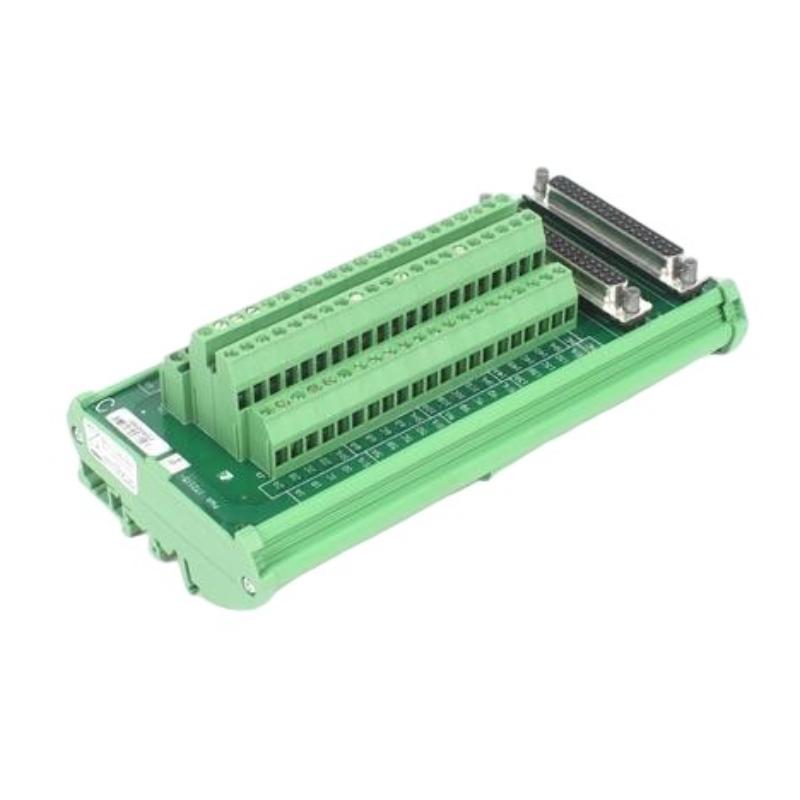

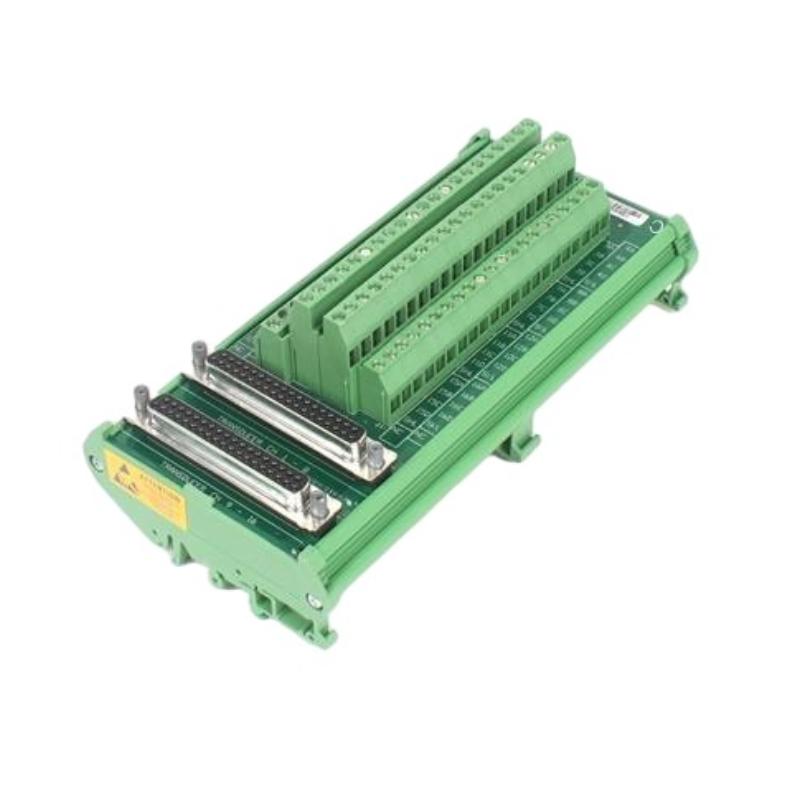

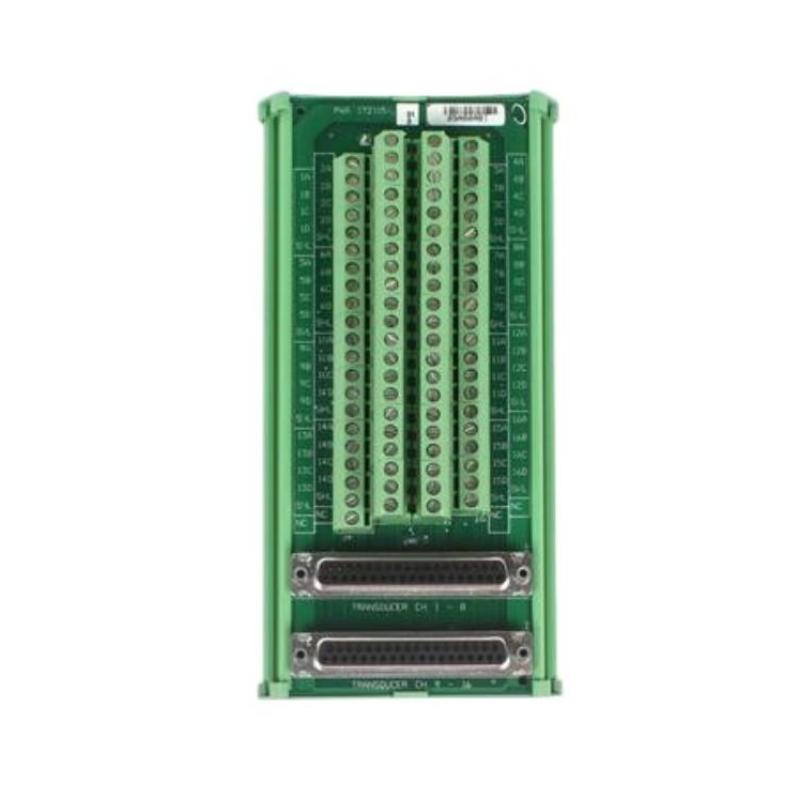

The Bently Nevada 3500/65 172115-01 is an external termination block for RTD and isolated thermocouple inputs. It provides a secure and organized connection between field sensors and 3500/65 system I/O modules.
General Information
Part Number: 172115-01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500/65 Temperature Monitoring System
Type: External Termination Block

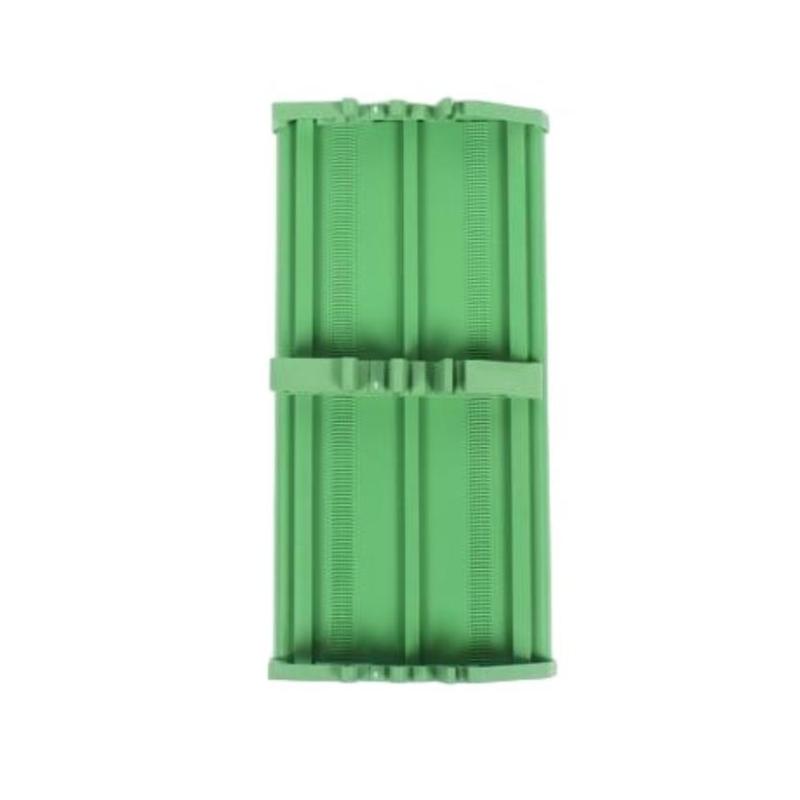

Mounting: Panel or DIN-rail installation
Function: Facilitates wiring and connections for RTD/TC channels
Power Specifications
Supply Voltage: Passive (no active power)
Power Consumption: < 1 W
Protection: Field wiring isolation; powered by I/O module
Communication & Interface
Interface Type: Euro-style connectors for RTD/TC signals
System Connection: Works with 3500/65 I/O modules
Diagnostics: Handled by I/O module, not the block
Compatibility: 3500/65 series temperature modules
Environmental
Operating Temperature: −40 to +85 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Cooling: Passive
Dimensions & Weight
Dimensions (L × W × H): 135 × 38 × 61 mm
Weight: Approx. 0.45 kg
