Overview

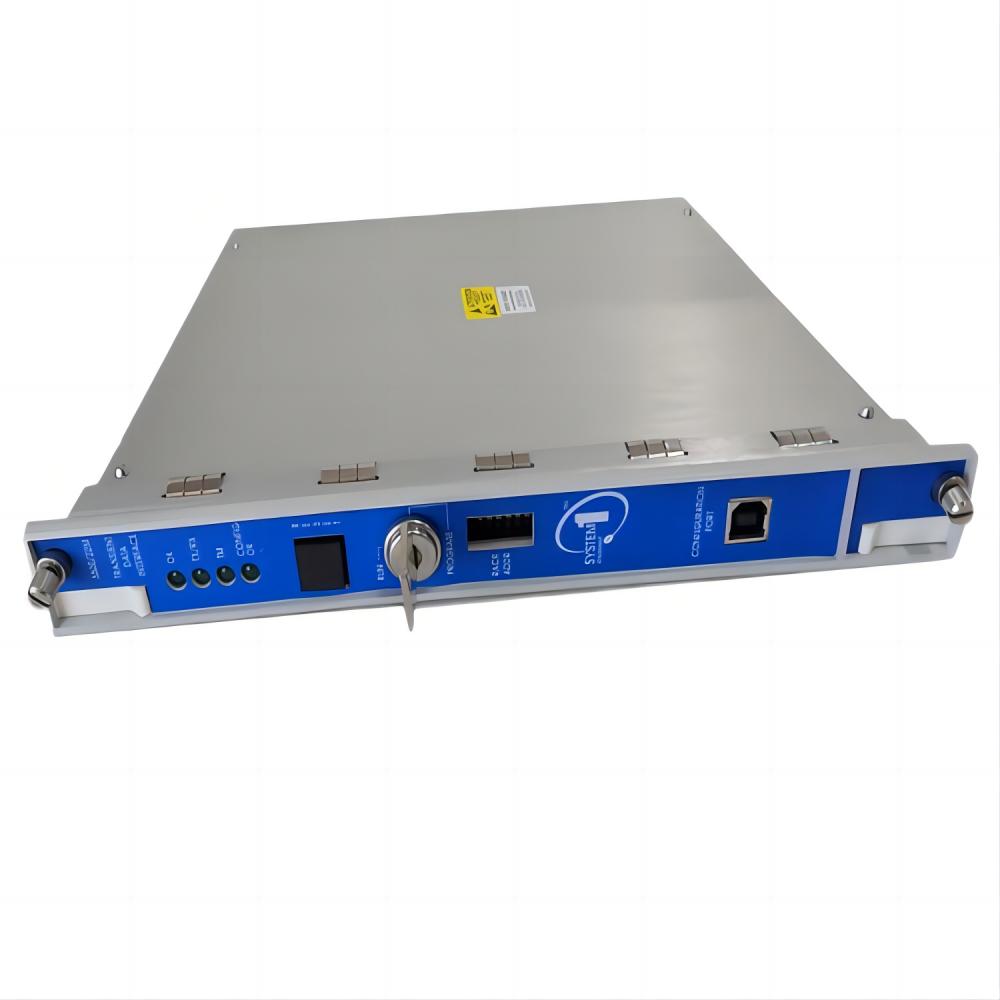

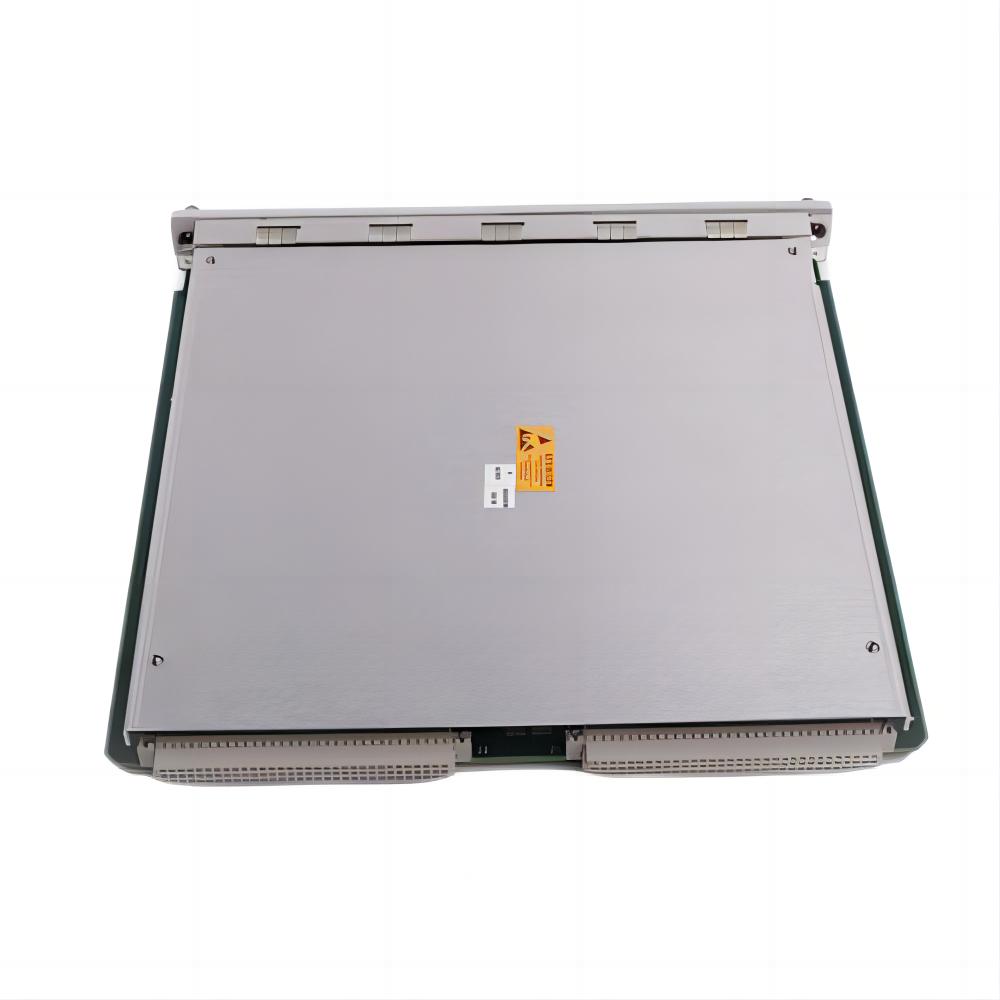

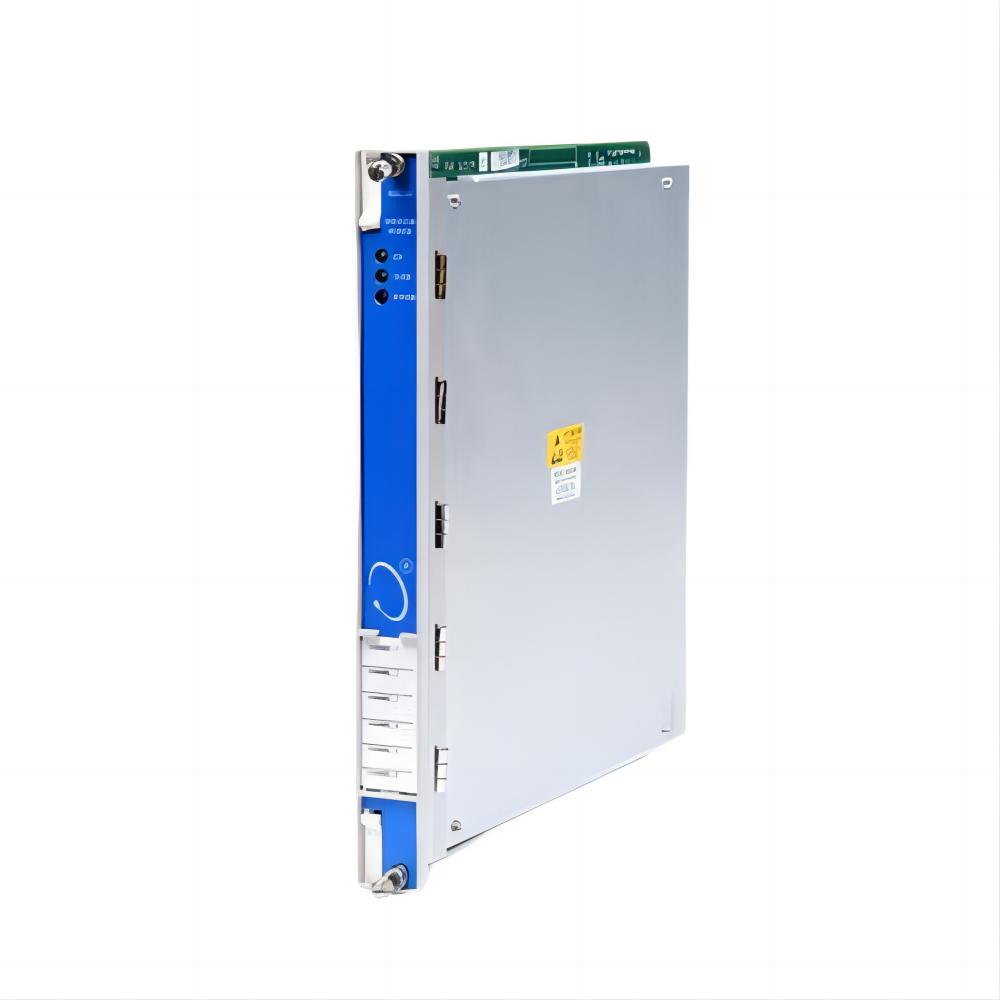

The monitor module with part number 163179‑01 together with I/O module 133819‑01 is a combined temperature monitoring unit in the Bently Nevada 3500/61 system. It handles sensor input, alarm logic, and recorder outputs for temperature measurement channels.
General Information
Brand: Bently Nevada
Country of Origin: United States
Part Numbers: 163179‑01 (monitor) + 133819‑01 (I/O module)
Series / Type: 3500/61 Temperature Monitoring Module
Function: Accepts temperature sensor inputs (RTD or thermocouple), performs monitoring, alarm detection, and interfaces with system logic
Mounting: Rack‑mounted in industrial control system
Power Specifications
Supply Voltage: 24 V DC (via rack backplane)
Power Consumption: Approximately 9 W (typical for 3500/61 modules)
Protection: Designed for industrial‑grade use with standard protections
Communication & Interface
Interface Type: Temperature monitoring module with six channels (via I/O) and recorder outputs
Signal Types: RTD or thermocouple inputs, conditioned and routed into monitoring logic
Function: Monitors temperature sensors, compares to alarm set‑points, provides outputs for recorder and system interface
Environmental
Operating Temperature: −30 °C to +65 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or rack
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 241.8 mm
Weight: Approx. 0.91 kg
