Overview

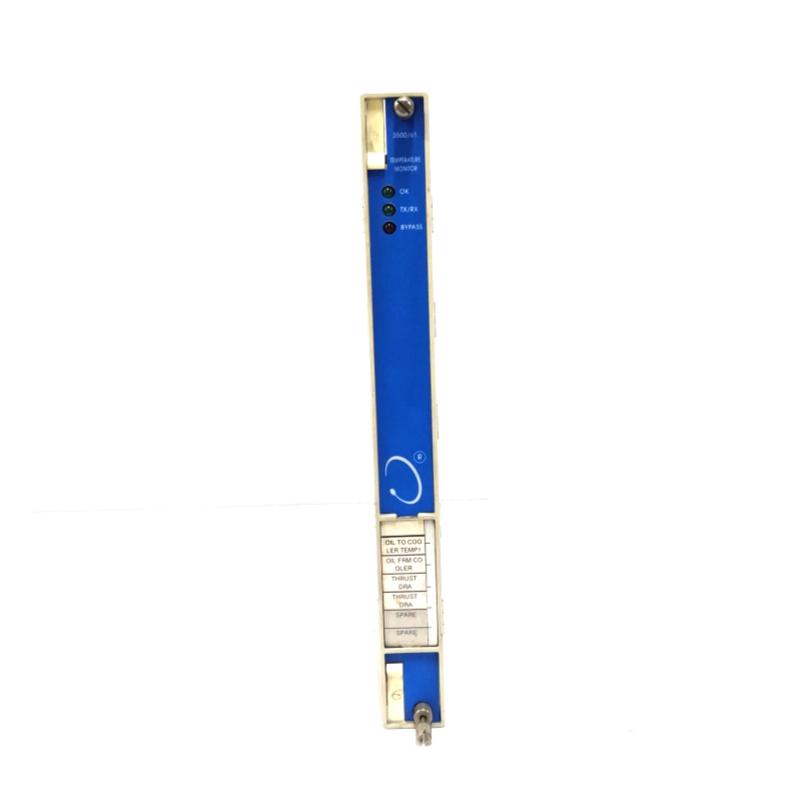

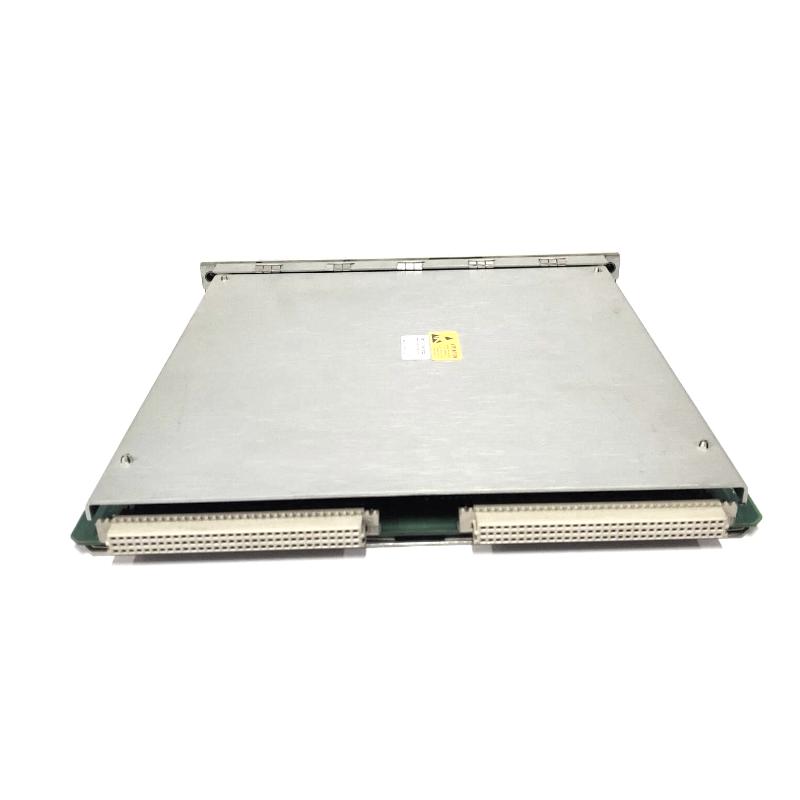

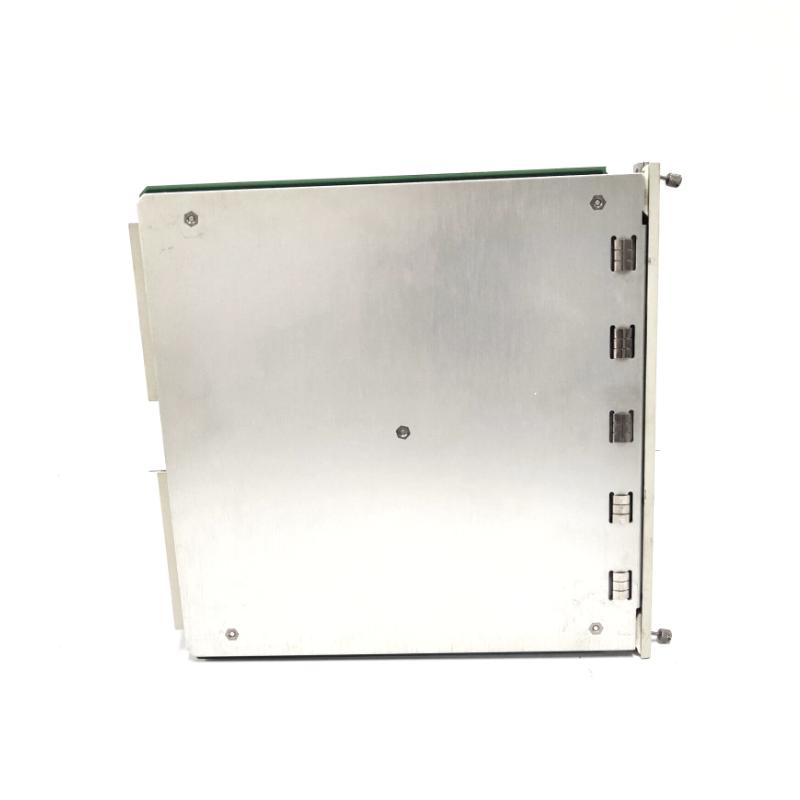

The 3500/61 monitor module (part number 163179‑02) is part of the Bently Nevada machinery protection system. It monitors temperature sensor inputs, executes alarm logic, and provides recorder outputs across multiple channels.
General Information
Brand: Bently Nevada
Country of Origin: United States
Part Number: 163179‑02
Series / Type: 3500/61 Temperature Monitor with recorder outputs
Function: Receives signals from I/O modules (RTD/TC), executes alarm comparison, and provides outputs
Mounting: Rack installation in industrial control system
Power Specifications
Supply Voltage: 24 V DC via rack backplane
Power Consumption: Nominally 9 W
Protection: Industrial-grade protections including reverse polarity and fault handling
Communication & Interface
Interface Type: Monitor module interface for temperature I/O systems
Signal Types: Accepts RTD or thermocouple signals via I/O modules and provides recorder outputs
Function: Performs logic and alarm processing based on sensor inputs and supports configuration
Environmental
Operating Temperature: −30 °C to +65 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet or rack
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 241.8 mm
Weight: Approx. 0.91 kg
