Overview

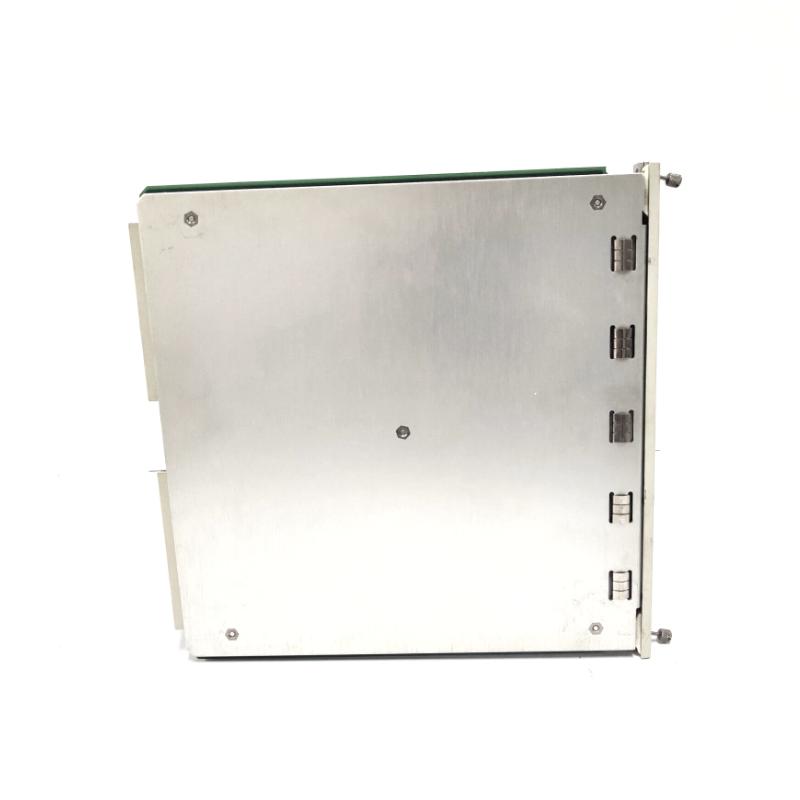

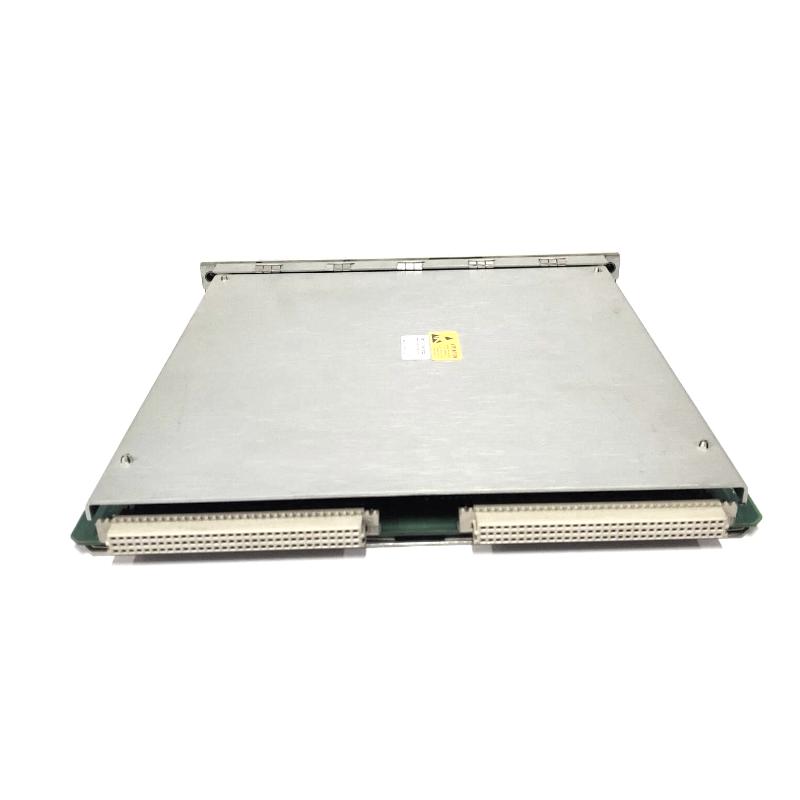

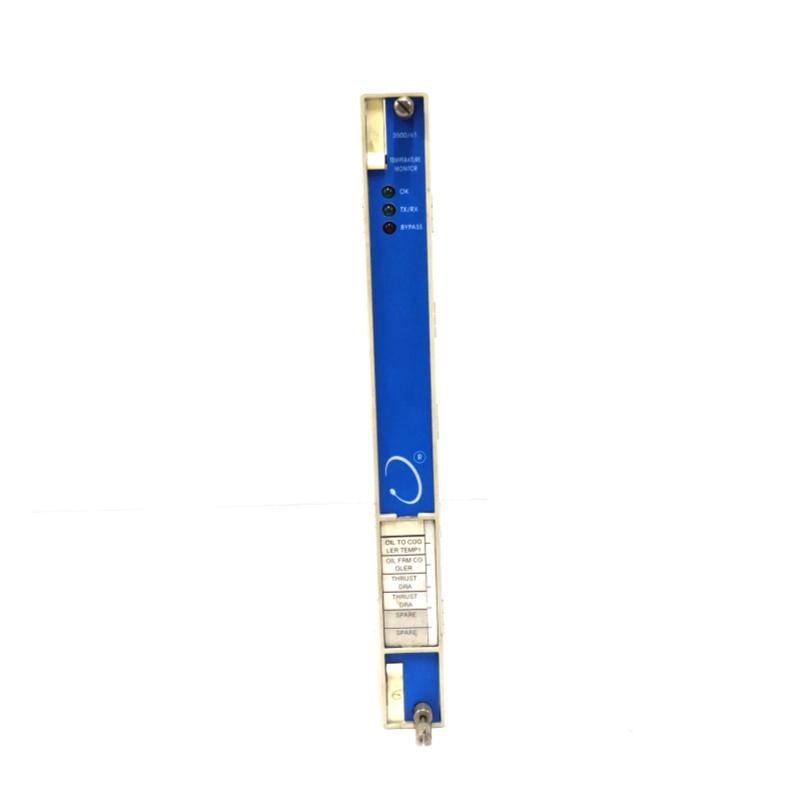

The module combination of part 163179‑02 (monitor) together with I/O module 136711‑02 is designed for the Bently Nevada 3500/61 temperature monitoring system. It supports six channels of RTD or thermocouple inputs, provides logic and alarm processing, and works with internal barrier I/O modules.
General Information
Brand: Bently Nevada
Country of Origin: United States
Part Numbers: 163179‑02 (monitor) and 136711‑02 (I/O module with internal barriers and terminations)
Series / Type: 3500/61 Temperature Monitoring Module
Function: Receives temperature sensor signals via I/O module, executes monitoring, alarm logic, and recorder outputs
Mounting: Rack‑mounted module in industrial control system
Power Specifications
Supply Voltage: 24 V DC via rack backplane
Power Consumption: Approximately 9 W typical
Protection: Industrial‑grade protections including reverse polarity and fault handling
Communication & Interface
Interface Type: Monitor module plus I/O module configuration for temperature monitoring
Signal Types: RTD (platinum 100 Ω) or thermocouples depending on I/O module variant
Function: Conditions and routes sensor signals to monitoring logic, compares against setpoints, and outputs alarms and recorder channels
Environmental
Operating Temperature: −30 °C to +65 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or rack
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 241.8 mm
Weight: Approx. 0.91 kg
