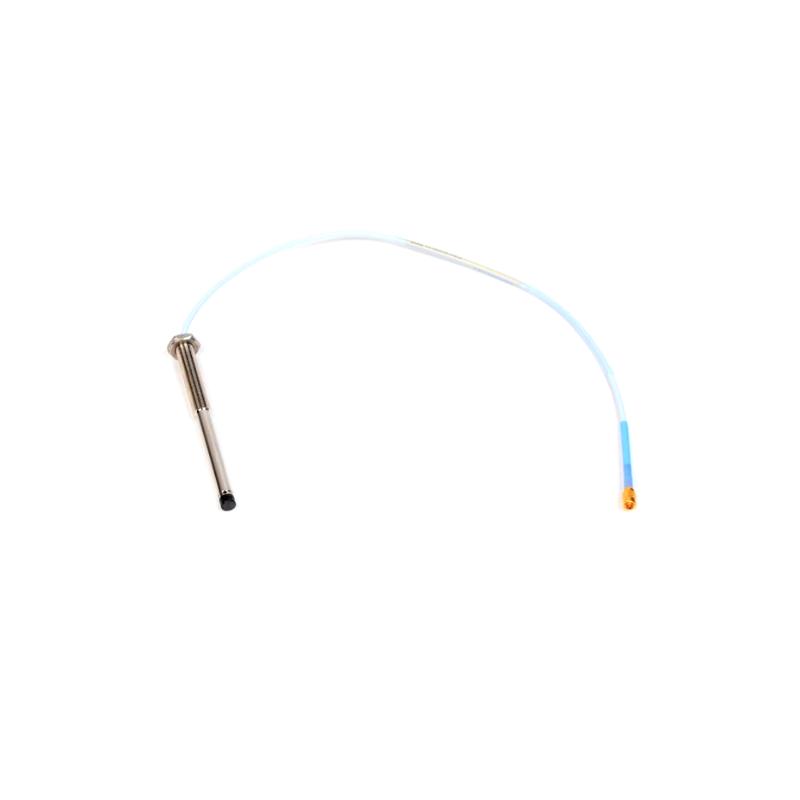

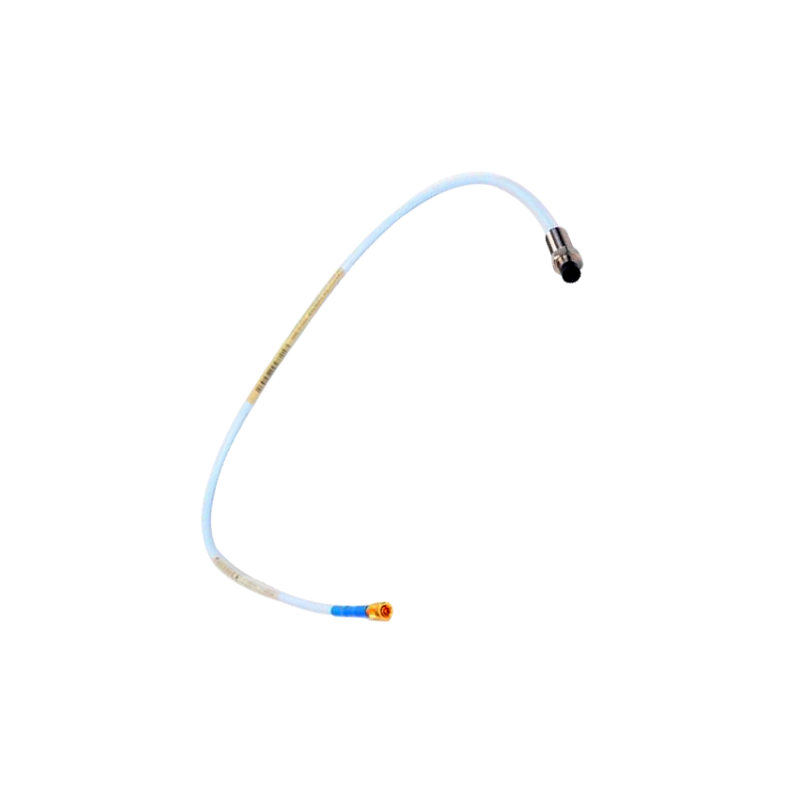

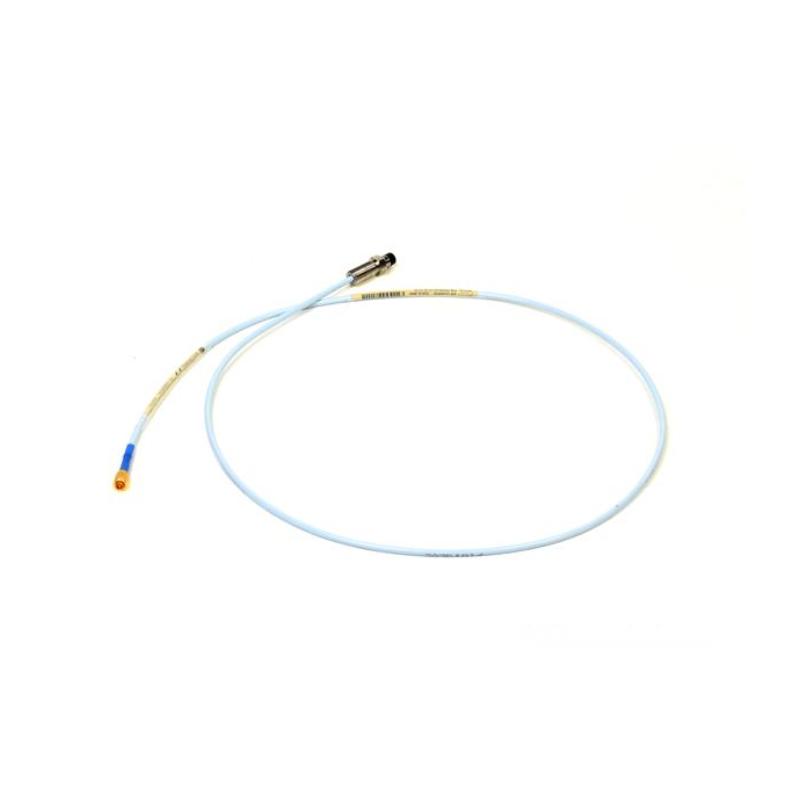

Bently Nevada 330105-02-12-05-02-00 3300 XL 8 mm Reverse Mount Proximity Probe Original

Overview
The Bently Nevada 330105-02-12-05-02-00 is a 3300 XL 8 mm Reverse Mount Proximity Probe designed for use in Bently Nevada's Proximity Transducer System. It is utilized to monitor the axial displacement of rotating machinery components, providing critical data for machinery protection and condition monitoring.

General Information

• Manufacturer: Bently Nevada (a Baker Hughes business)

• Model Number: 330105-02-12-05-02-00

• Type: Reverse Mount Proximity Probe

• Sensing Distance: 8 mm

• Thread Type: 3/8 - 24 UNF

• Connector Type: Miniature ClickLoc coaxial connector

• Cable Length: 0.5 meter

• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

• Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

• Country of Origin: United States

Electrical Specifications

• Output Voltage: Proportional to the distance between the probe tip and the observed conductive surface

• Frequency Response: Suitable for high-frequency applications

• Impedance: Matched to Bently Nevada Proximitor Sensors

• Linearity: High linearity across the sensing range

• Temperature Stability: Designed to maintain accuracy across a wide temperature range

Environmental Specifications

• Protection Rating: IP67 when properly installed

• Armor: Optional; armored versions available for additional protection

• Installation Environment: Industrial control cabinets or machinery housings

Dimensions & Weight

• Total Length: 0.5 m

• Weight: 0.162 kg

All products are new originals, available anytime with dedicated customer care.
