Overview

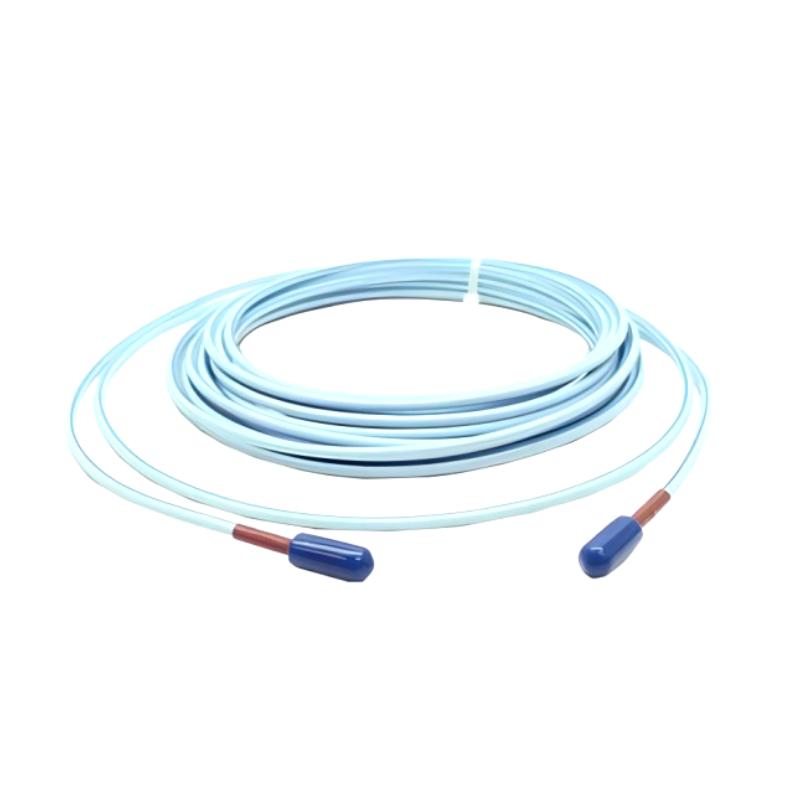

The Bently Nevada 330130-080-10-00 is an 8-meter armored extension cable designed for the 3300 XL 8mm Proximity Transducer System. Manufactured by Bently Nevada, USA, it provides robust signal transmission between proximity probes and Proximitor sensors, suitable for high-vibration and harsh industrial environments.
General Information
Manufacturer: Bently Nevada
Country of Origin: USA
Part Number: 330130-080-10-00
Product Name: 3300 XL Armored Extension Cable
Series: 3300 XL 8mm Proximity Transducer System
Product Type: Armored Extension Cable
Cable Length: 8 meters (26.2 feet)
Connector Type: Compatible with 8mm proximity probes
Protection Rating: IP66
Power Specifications
Power Supply: Powered by connected Proximitor sensor
Power Consumption: Minimal, dependent on connected components
Protection: Overvoltage and reverse polarity protection via Proximitor sensor
Communication & Interface
Signal Type: AC or DC analog output depending on system configuration
Interface: 2-wire or 4-wire connection to monitoring system
Function: Transmits vibration and displacement signals from proximity probes to Proximitor sensors
Diagnostics: Supported through connected Proximitor sensor
Configuration: Interchangeable with other 3300 XL components without recalibration
Environmental
Operating Temperature: −35 to +200 °C
Storage Temperature: −40 to +220 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Class: IP66
Cable Material: Stainless steel braided sheath for enhanced durability
Dimensions & Weight
Cable Length : 8.0 meters
Weight: 0.272 kg
