Overview

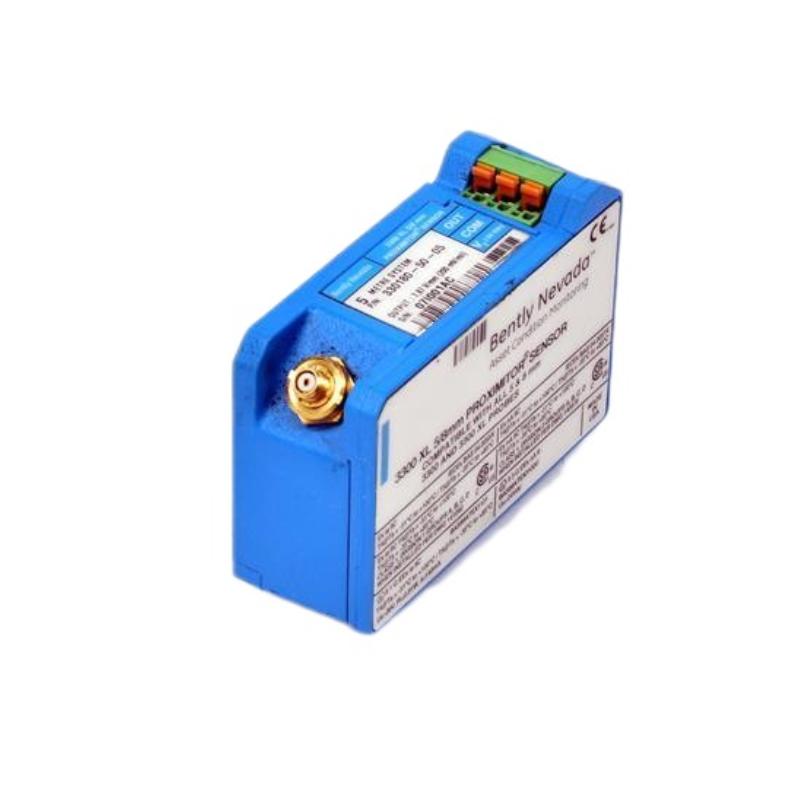

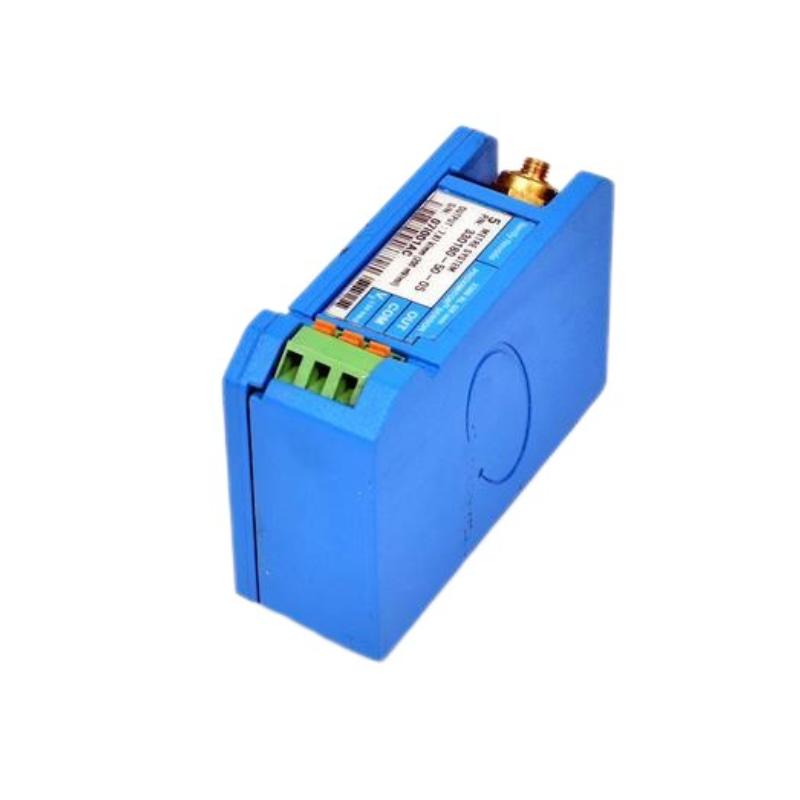

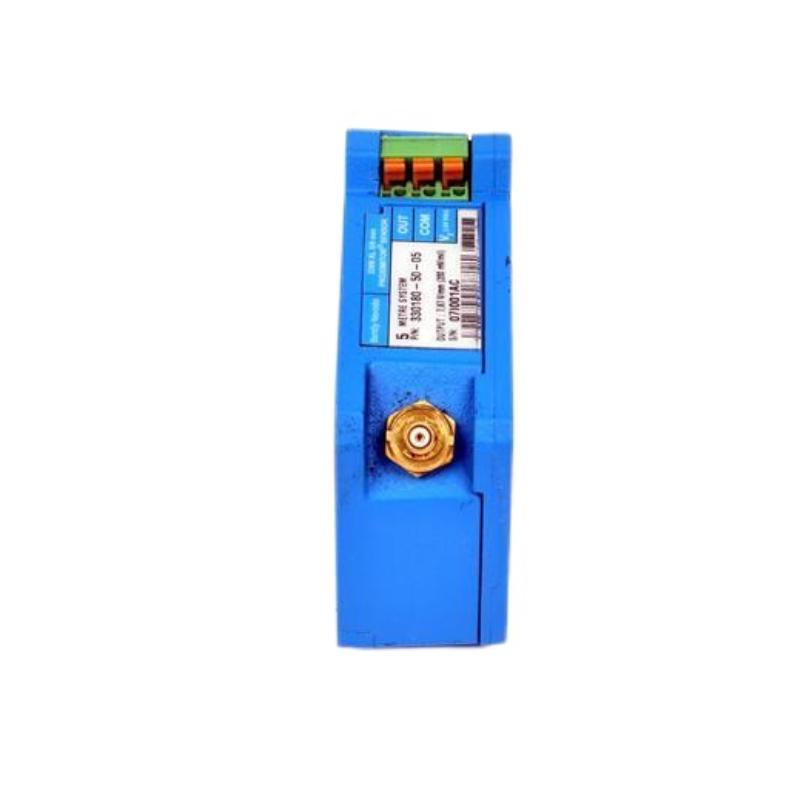

The Bently Nevada 330180-50-05 is a standard 3300 XL Proximitor sensor used for non-contact measurement of shaft position and vibration in rotating machinery. It belongs to the 5/8 mm sensor family and supports long cable runs and industrial installations.
General Information
Brand: Bently Nevada
Country of Origin: United States
Model: 330180-50-05
Part Number: 330180-50-05
Product Type: Proximitor Sensor (Analog)
Series: 3300 XL
Application: Machinery monitoring, displacement & vibration measurement
Power Specifications
Supply Voltage: –17.5 VDC to –26 VDC (unbarriered)
Current Consumption: ~12 mA
With Barriers: –23 VDC to –26 VDC
Power Sensitivity: <2 mV output change per 1 V change in input voltage
Communication & Interface
Output Type: Analog voltage proportional to probe-to-target gap
Probe Compatibility: 5 mm, 8 mm, or 8 mm XL probes and extension cables
Diagnostics: Internal self-check and linearity monitoring
Environmental
Operating Temperature: –55 °C to +120 °C
Storage Temperature: –60 °C to +125 °C
Relative Humidity: 5-95% non-condensing
Protection Rating: IP66 / IP67 (when mounted properly)
Dimensions & Weight
Dimensions: 81.3 x 35.1 x 63.5 mm
Weight: 0.246 kg
