Bently Nevada 3500/05-01-03-00-00-00 | System Rack Efficient delivery

Overview

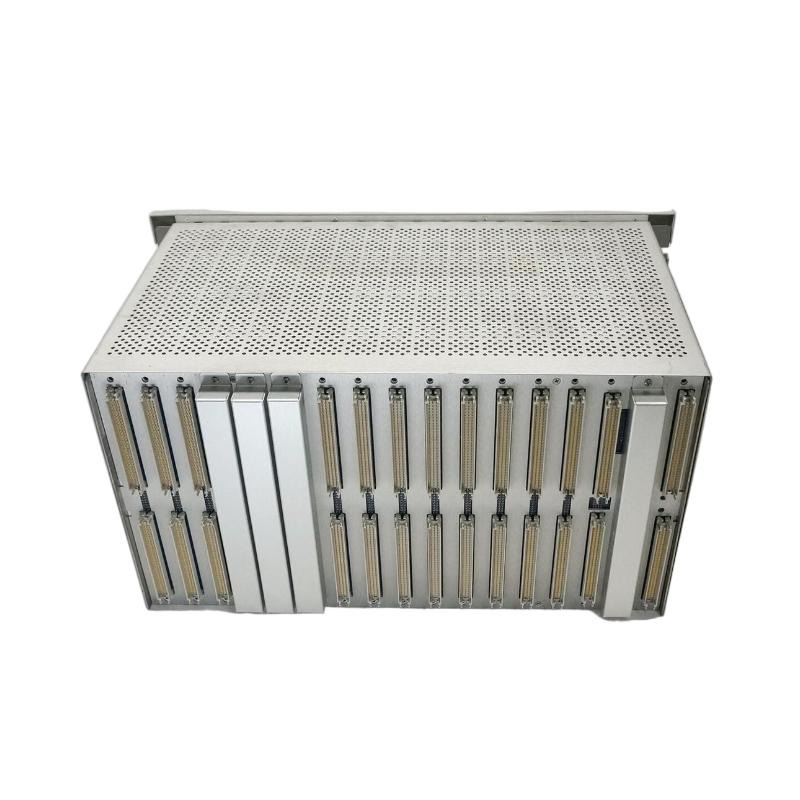

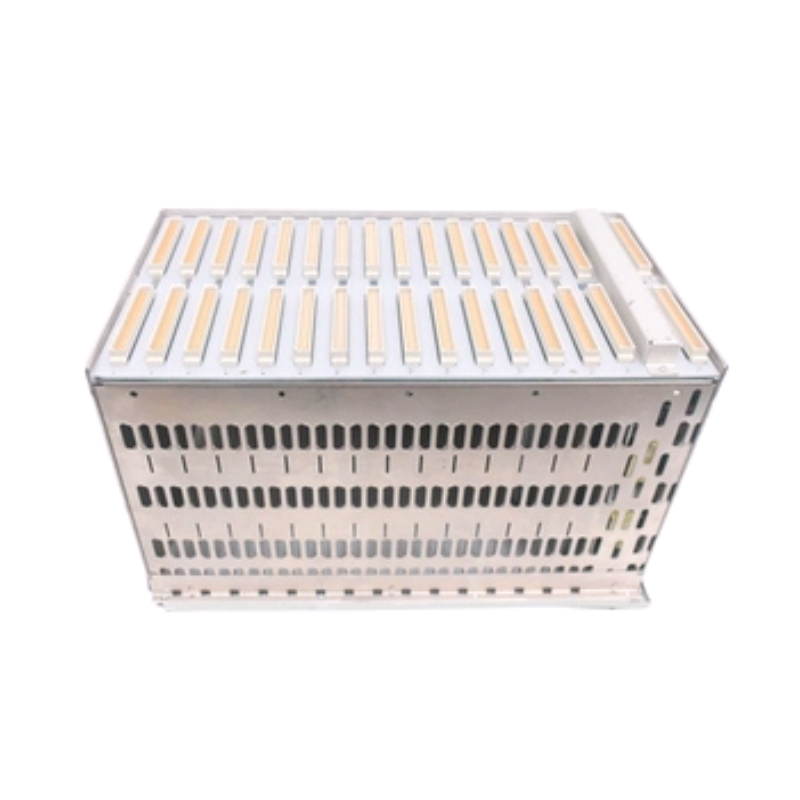

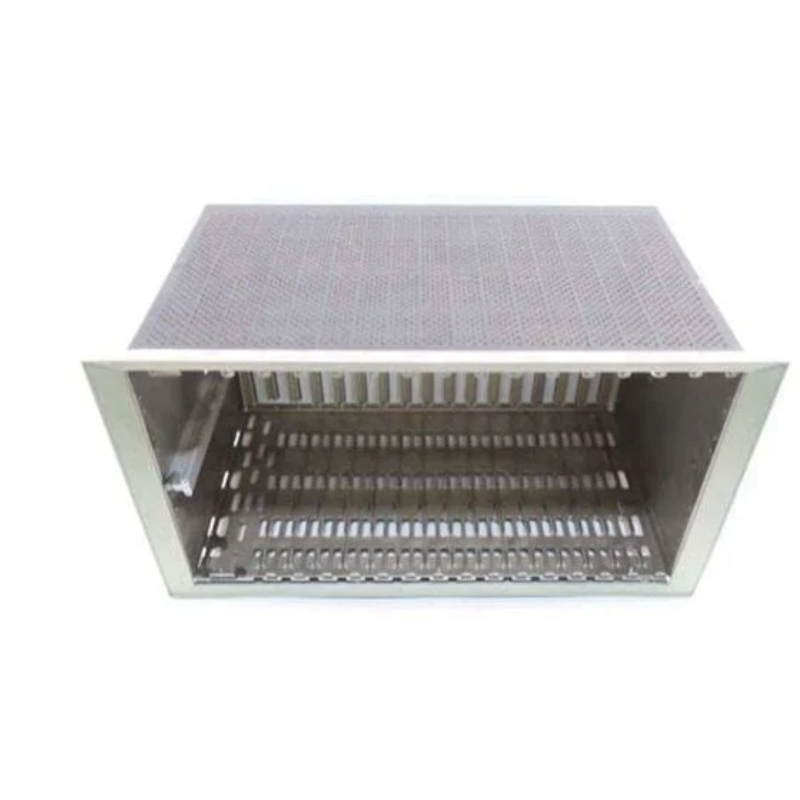

The Bently Nevada 3500/05-01-03-00-00-00 is a full-size 19-inch system rack designed to house and interconnect all 3500 monitor modules and power supplies within the Bently Nevada 3500 Series machinery protection and condition monitoring systems. This rack facilitates seamless communication between modules and ensures proper power distribution, supporting the reliable operation of critical industrial equipment.

General Information

• Part Number: 3500/05-01-03-00-00-00

• Manufacturer: Bently Nevada (a Baker Hughes company)

• Series: 3500 Series

• Type: System Rack

• Rack Size: 19-inch EIA standard

• Module Slots: 14 available slots for monitor modules and power supplies

• Mounting Options: Panel mount, rack mount, and bulkhead mount configurations available

• Compliance: Meets various industry standards and certifications

Power Specifications

• Operating Voltage: 24 V DC

• Power Distribution: Supports the installation of power supplies necessary to distribute power to each module

• Redundancy: Designed to accommodate redundant power supplies for increased reliability

Communication & Interface

• Module Communication: Facilitates communication between all 3500 monitor modules and power supplies

• Backplane Interface: Provides a backplane interface for module interconnection

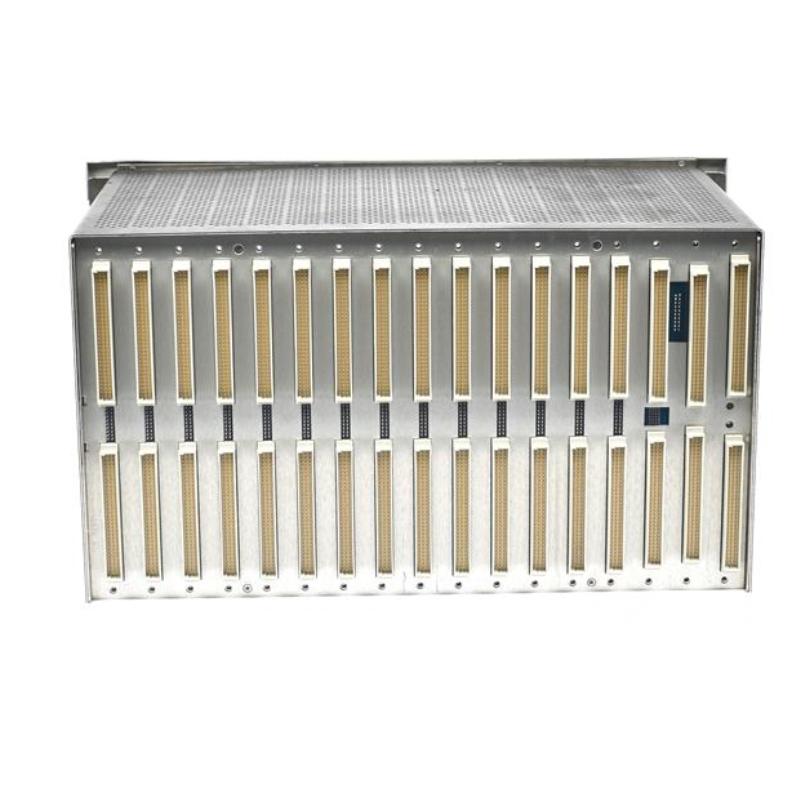

• Accessibility: I/O modules and wiring connections are accessible from the rear of the rack in panel and rack mount configurations

Environmental

• Operating Temperature Range: −25 °C to +70 °C

• Storage Temperature Range: −40 °C to +85 °C

• Humidity: 5% to 95% relative humidity, non-condensing

• Protection Rating: IP20, suitable for installation inside control cabinets

Dimensions & Weight

• Rack Size : 19-inch (14 module slots)

• Weight: 4.5 kg
