Overview

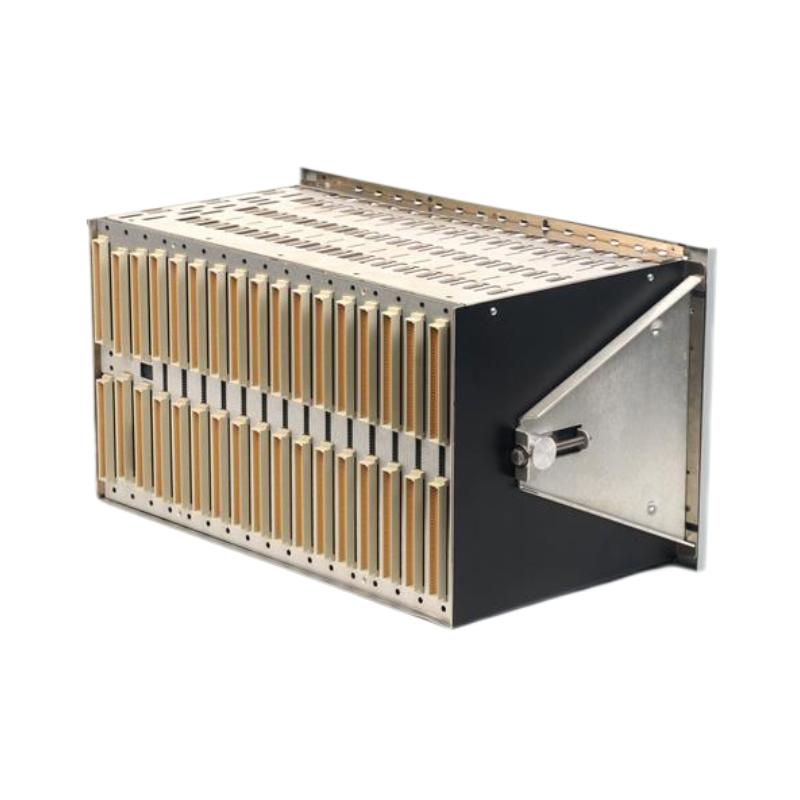

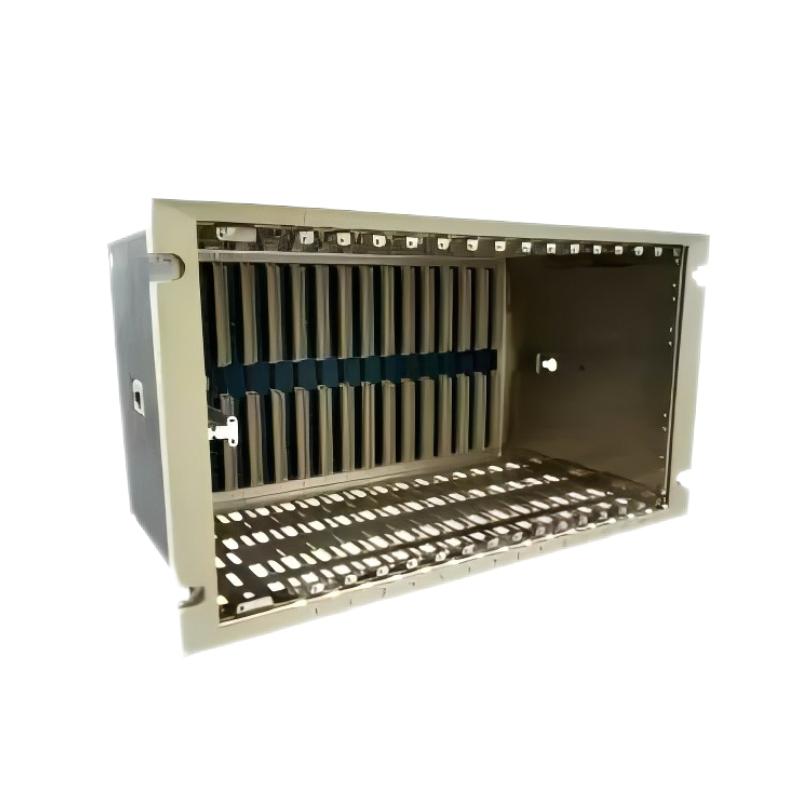

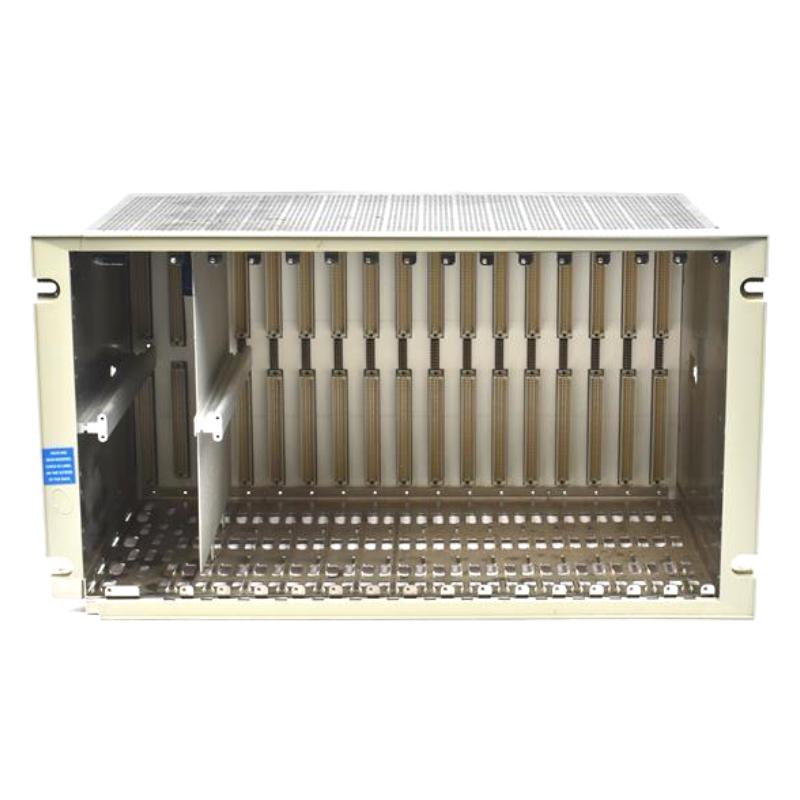

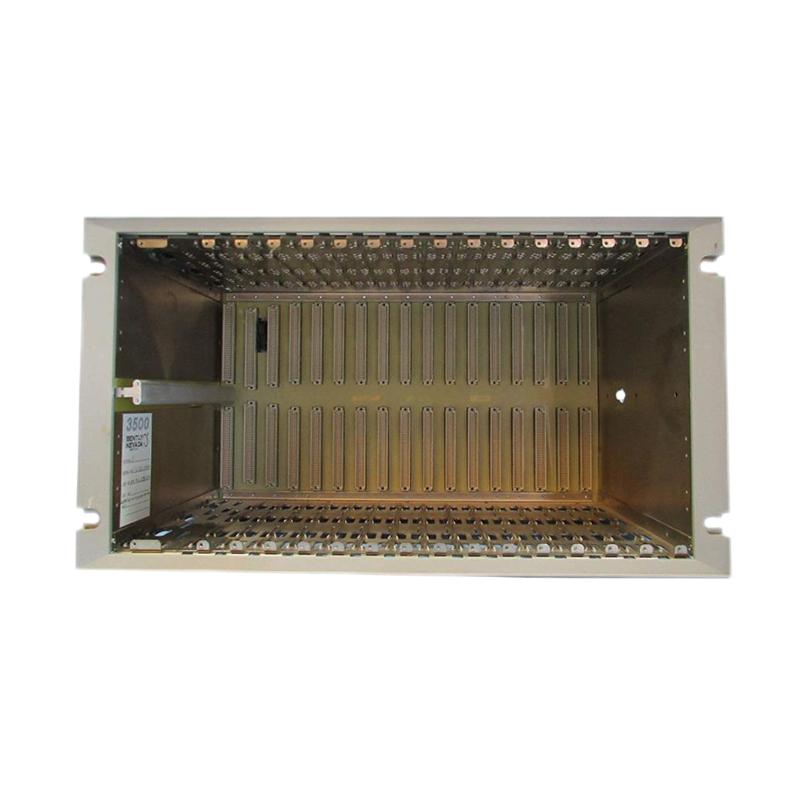

The Bently Nevada 3500/05‑01‑01‑01‑00‑00 is a full‑size system rack chassis used in the 3500/05 vibration and condition monitoring system. It provides the mechanical frame, backplane, and power distribution infrastructure required to house monitor, communication, and power modules.
General Information
Part Number: 3500/05‑01‑01‑01‑00‑00
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500/05 System
Type: Rack Chassis
Slots: Supports 14 full‑height module slots in a 19‑inch format
Mounting: Panel, rack, or bulkhead installation
Power Specifications
Passive chassis — no internal power consumption
Power is provided by installed rack power modules (24 V DC)
Backplane distributes power to installed modules
Communication & Interface
Backplane provides signal and power bus connections to all installed modules
Compatible with all 3500 series monitor, I/O, and communication modules
Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 (for enclosure mounting)
Dimensions & Weight
Rack Size : 19-inch (14 module slots)
Weight: 4.5 kg
