Overview

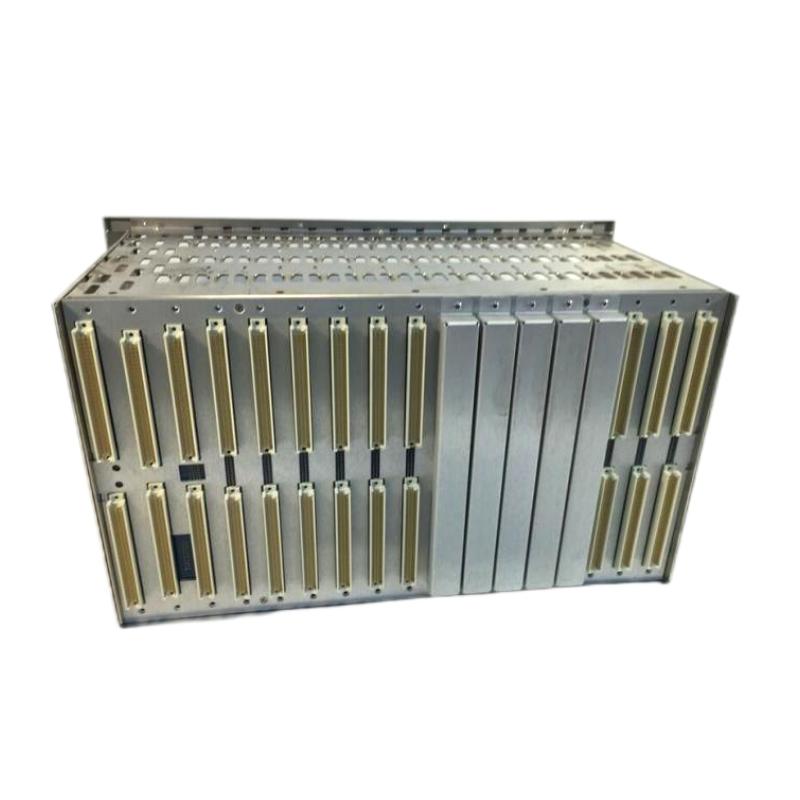

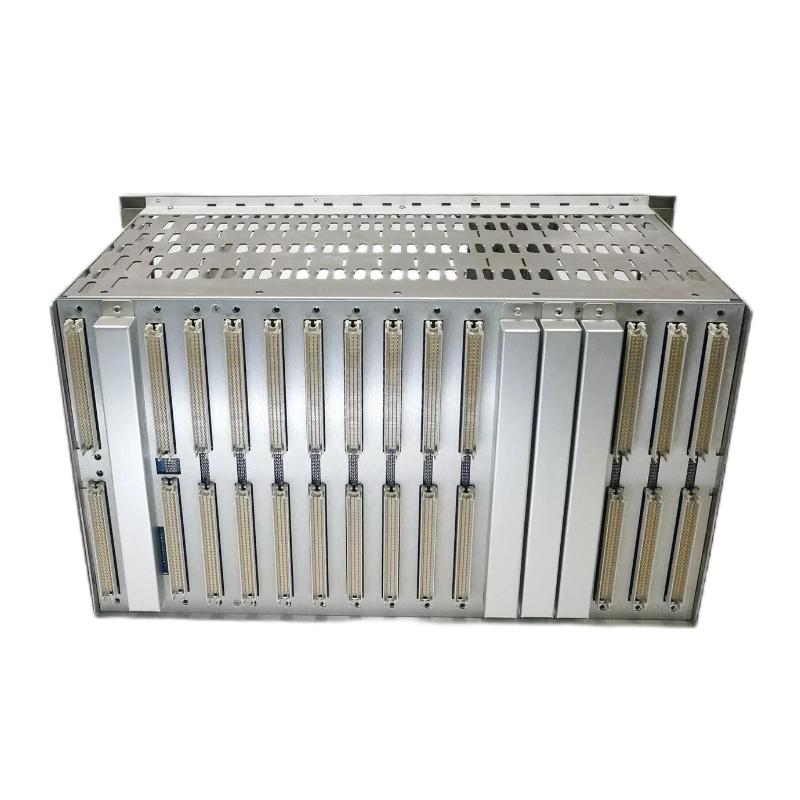

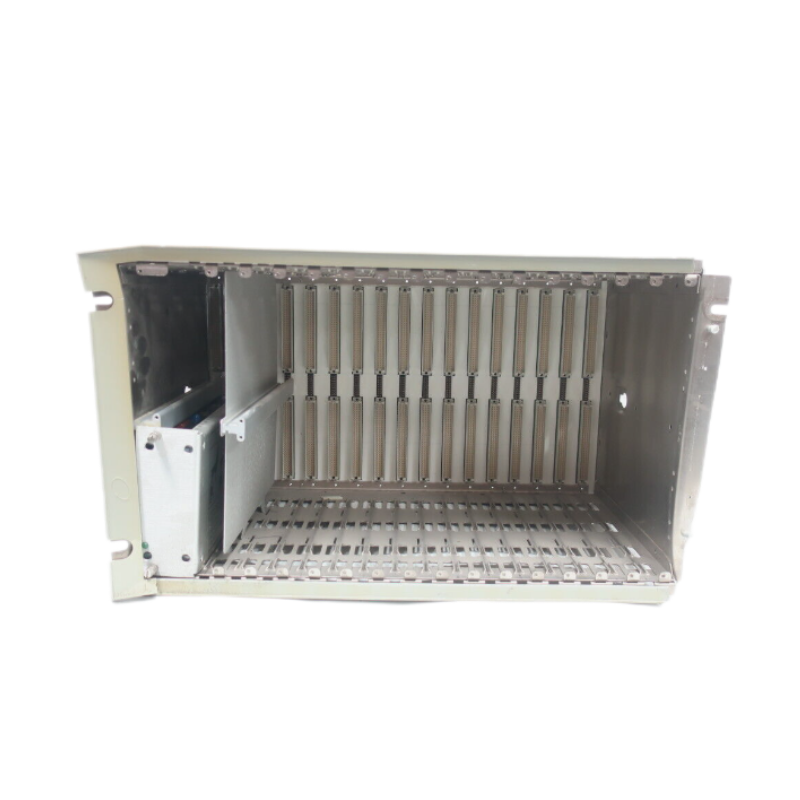

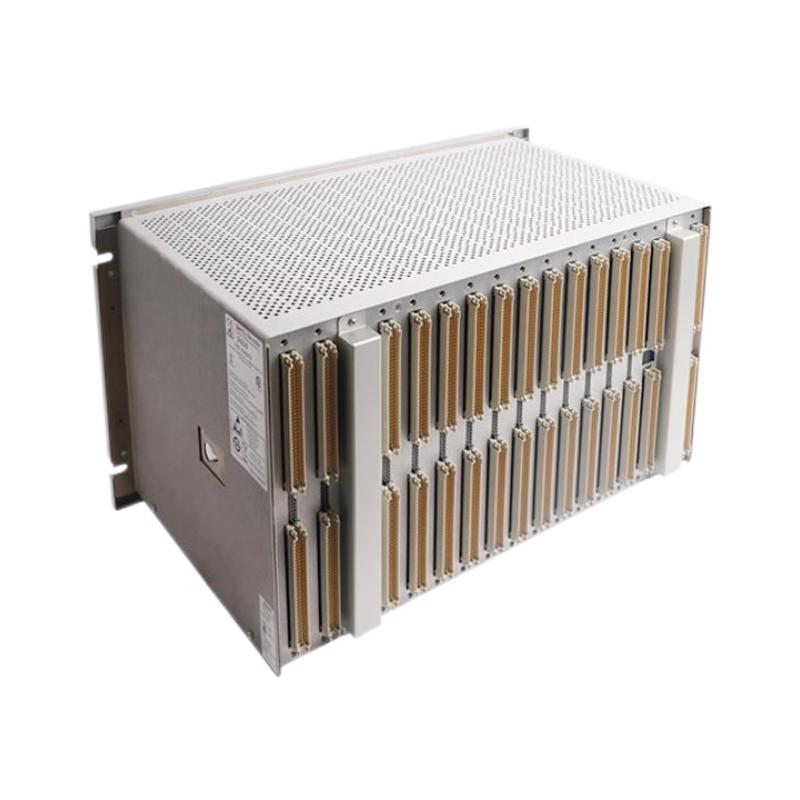

The Bently Nevada 3500/05‑01‑01‑02‑00‑01 is a full‑size rack chassis for the 3500/05 condition monitoring system. It houses monitor modules, power supplies, and backplane wiring, providing structural and electrical support for the system.
General Information
Part Number: 3500/05‑01‑01‑02‑00‑01
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500/05 System Rack
Type: Rack Chassis
Slots: Supports 14 full‑height module slots
Mounting: Panel, rack, or bulkhead configurations
Power Specifications
This chassis is passive: it does not consume power on its own
Power for modules is supplied by installed rack power supply units
Communication & Interface
Backplane: Built-in backplane distributes 24 V DC and signal buses to all module slots
Interface: Compatible with all 3500 series monitor, I/O, relay, and gateway modules
Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20
Dimensions & Weight
Rack Size : 19-inch (14 module slots)
Weight:4.5 kg
