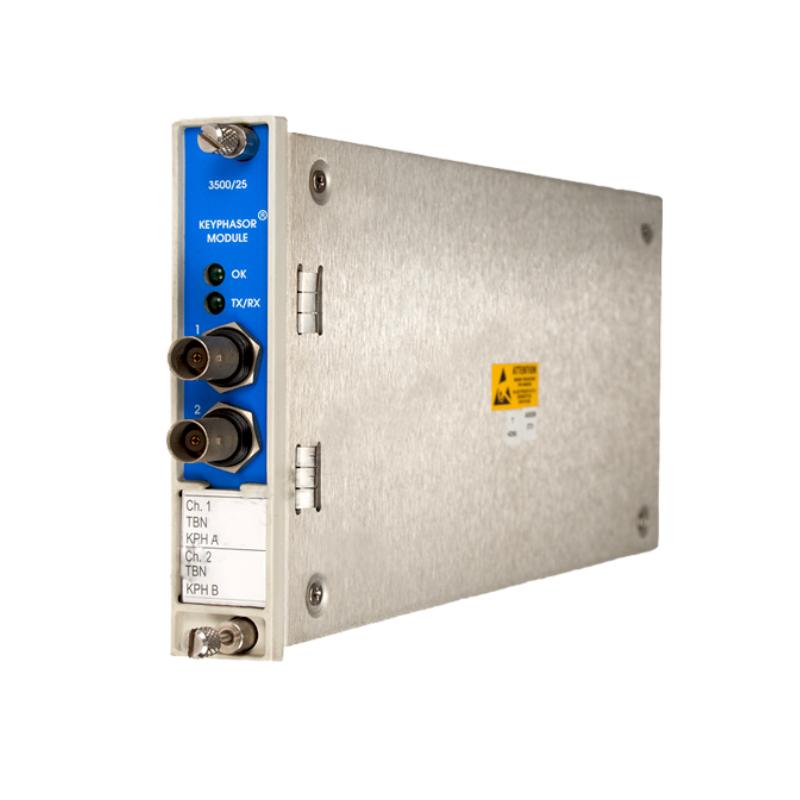

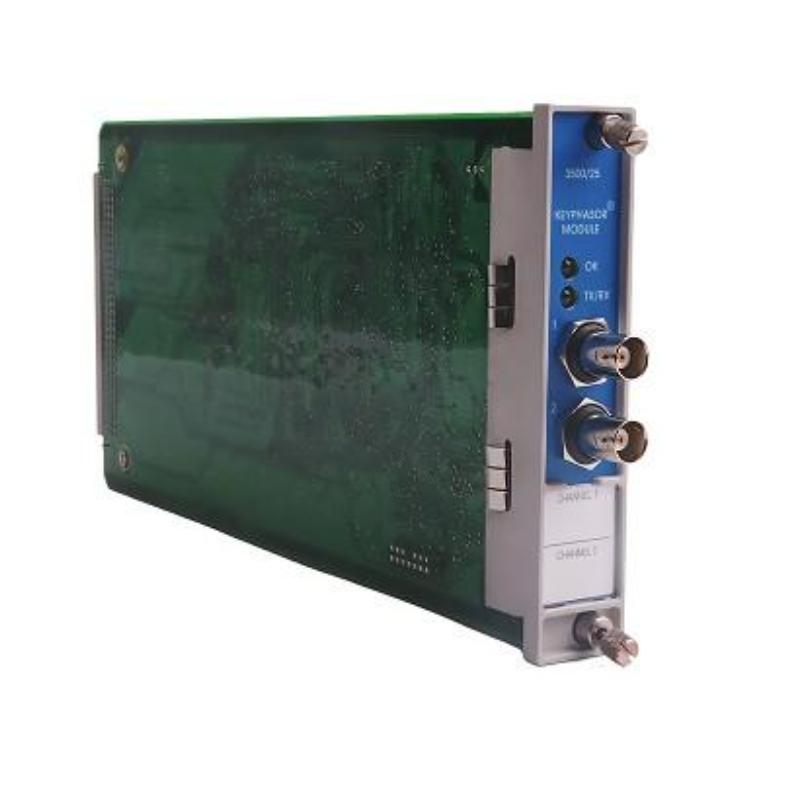

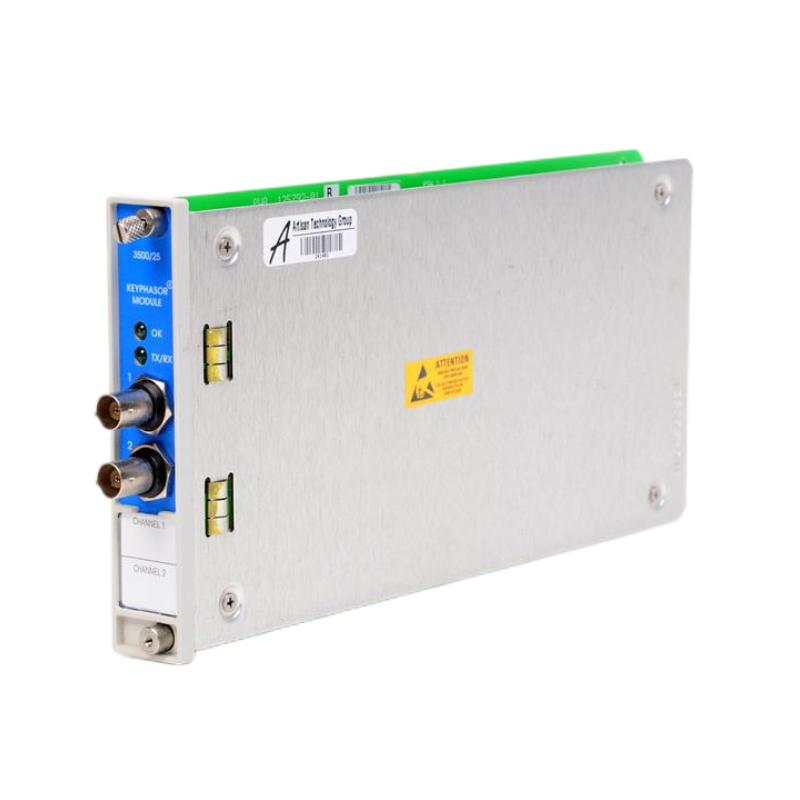

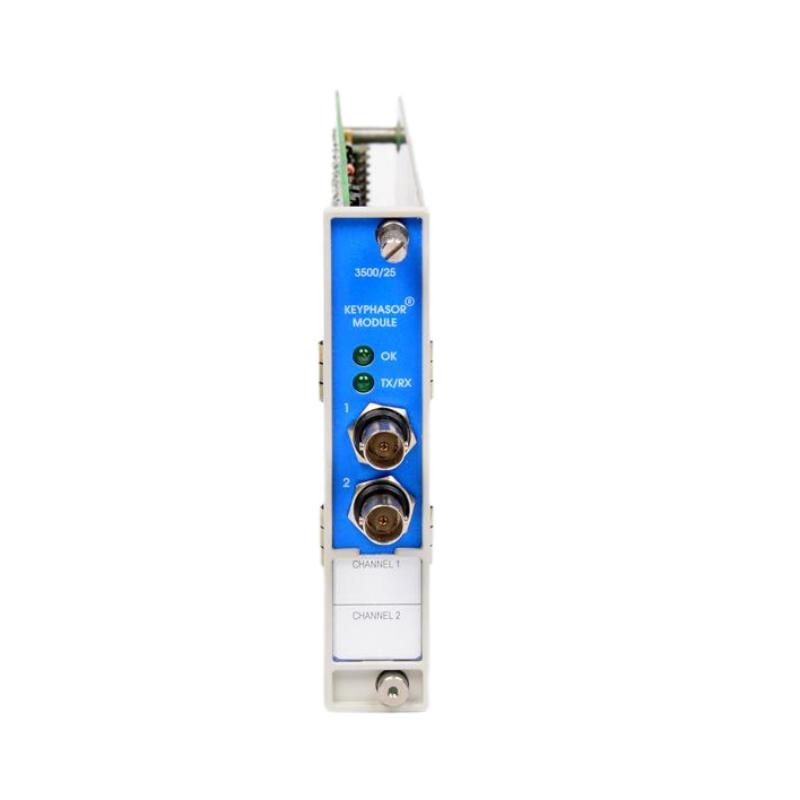

Bently Nevada 3500/25 149369-01 | Enhanced Keyphasor Module 30-Day Returns

Overview
The Bently Nevada 3500/25 149369-01 is an Enhanced Keyphasor Module designed for the Bently Nevada 3500 series machinery monitoring system. This module provides advanced interfacing with Keyphasor sensors, offering enhanced capabilities for speed, position, and phase angle measurements of rotating machinery, critical for accurate machinery condition monitoring and fault detection.

General Information
Part Number: 149369-01
Manufacturer: Bently Nevada
Country of Origin: United States
Series: 3500 Vibration Monitoring
Type: Enhanced Keyphasor Module
Functionality: Provides advanced speed, position, and phase angle measurement for rotating machinery, improving fault detection and system diagnostics

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input: Powered from the system backplane
Protection: Surge and reverse-polarity protection
Indicators: LED indicators for power, communication, and fault status

Communication & Interface
Interface: Interfaces with Keyphasor sensors to provide data to the 3500 system
Protocols Supported: Compatible with Bently Nevada 3500 series communication protocols
Diagnostics: Provides real-time diagnostics, fault detection, and status reporting via LED indicators

Environmental
Operating Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 or typical industrial environment

Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 103.1 mm
Weight: 0.46 kg

Original and new, with stock levels you can trust.
