Overview

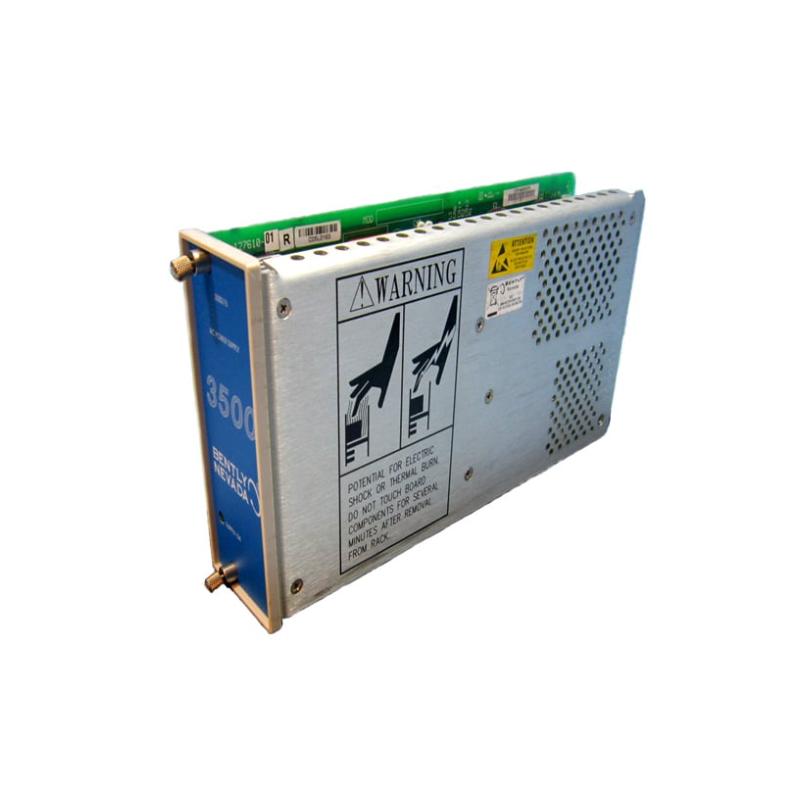

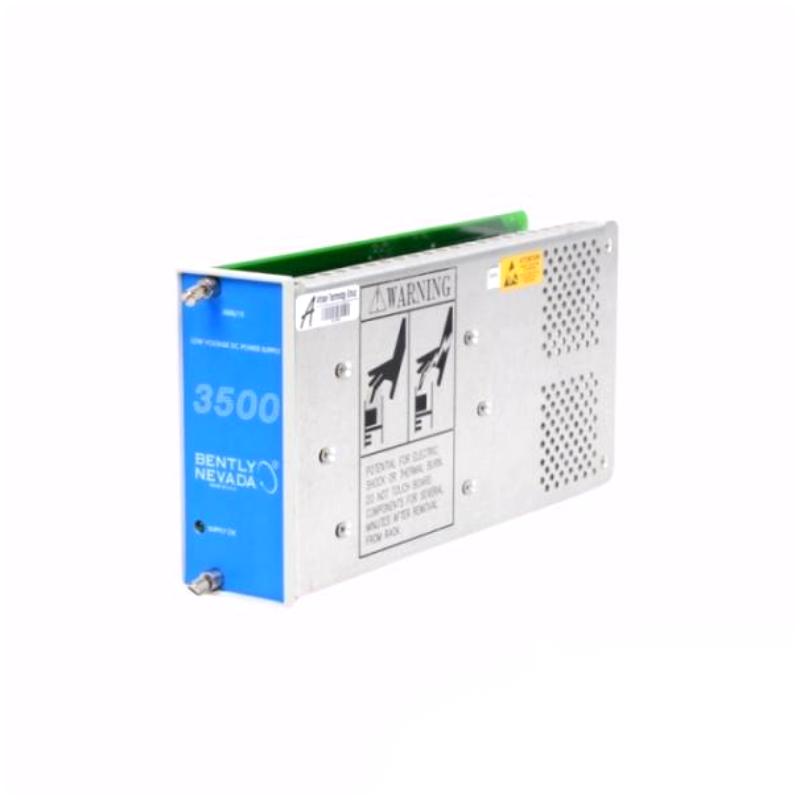

The Bently Nevada 3500/15 114M5330-01 is a low-voltage DC power supply module for the 3500 series machinery protection system, providing reliable power to all rack modules. Brand: Bently Nevada. Country of Origin: USA.
General Information
Part Number: 114M5330-01
Manufacturer: Bently Nevada (a Baker Hughes business)
Brand: Bently Nevada
Country of Origin: USA
Type: Half-height rack power supply module
Function: Converts low-voltage DC input to regulated outputs for rack modules; supports redundant configurations.
Power Specifications
Input Voltage: 20–30 V DC
Full Rack Current Draw: Up to 10 A maximum
Indicators: LED for supply OK
Communication & Interface
Module Type: Rack power module with standard connections to the 3500 system backplane
Redundancy Support: Can serve as primary or redundant supply; insertion/removal supported if backup present
Diagnostics: Front-panel LED indicates module condition and output status
Environmental
Operating Temperature: –30 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Dimensions & Weight
Dimensions: 120.7 × 50.8 × 251.5 mm
Weight: 1.39 kg
