Overview

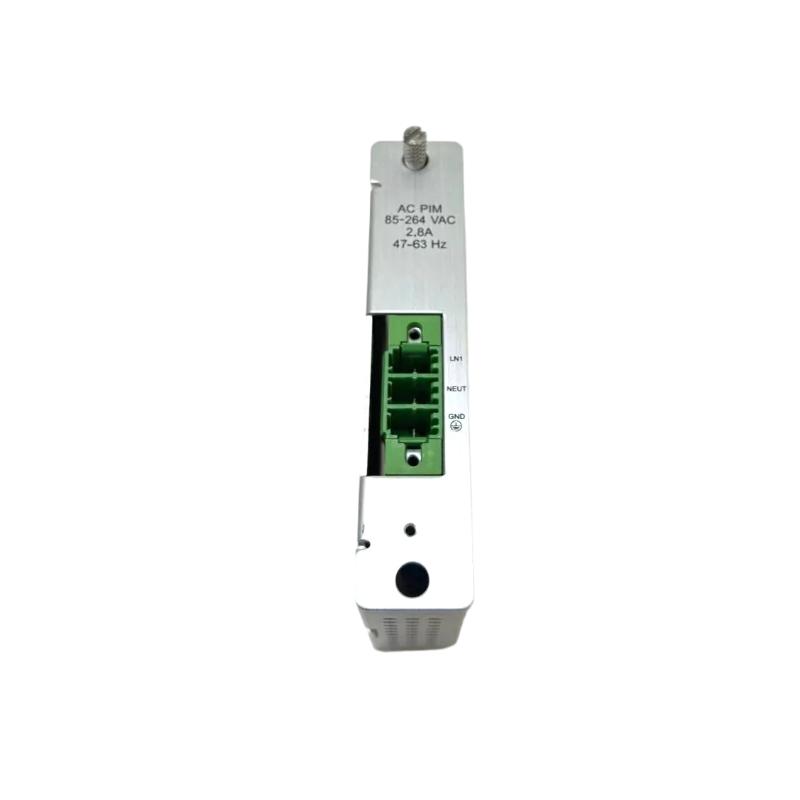

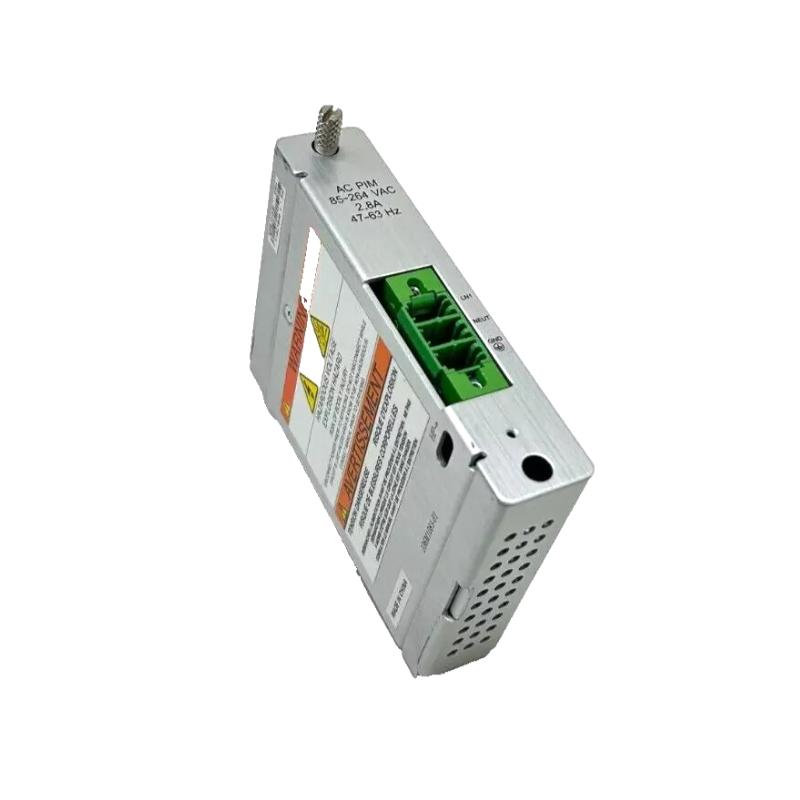

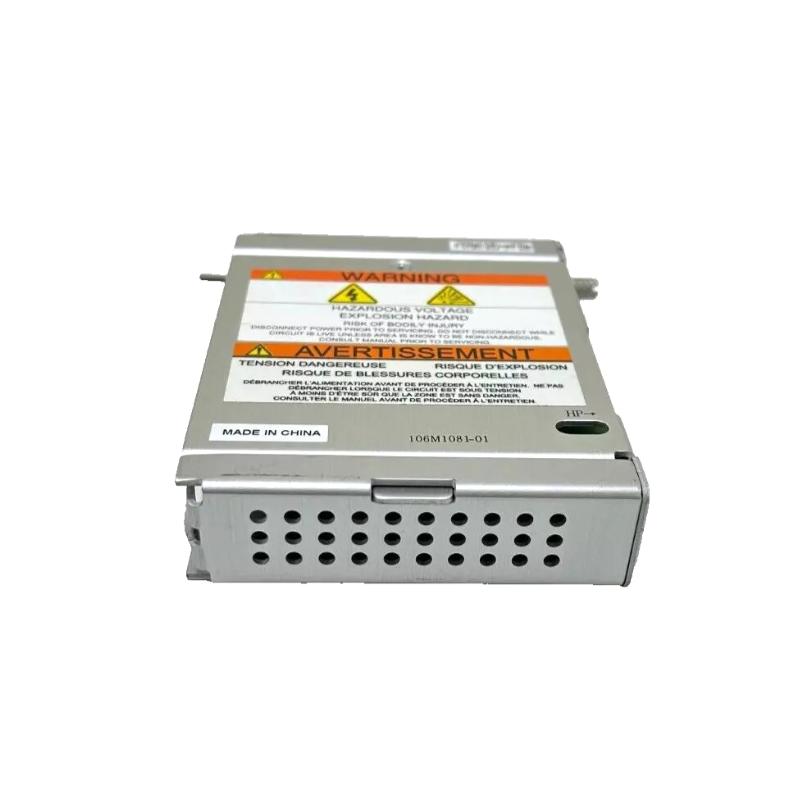

The 126564‑01 module is a half‑height AC power input module (PIM) for the 3500/15 rack system, converting AC mains to internal DC voltages for rack operation. Brand: Bently Nevada. Country of Origin: USA.
General Information
Part Number: 126564‑01
Manufacturer: Bently Nevada
Brand: Bently Nevada
Country of Origin: USA
Type: AC Power Input Module
Function: Supplies regulated DC power to the 3500 rack modules from AC input
Power Specifications
Input Voltage Range: 175 to 264 V AC
Output: Regulated internal DC for rack electronics
Redundancy: Designed to support redundant power configurations
Diagnostics: LED “Supply OK” indicator
Communication & Interface
Type: Power conversion module (no data I/O)

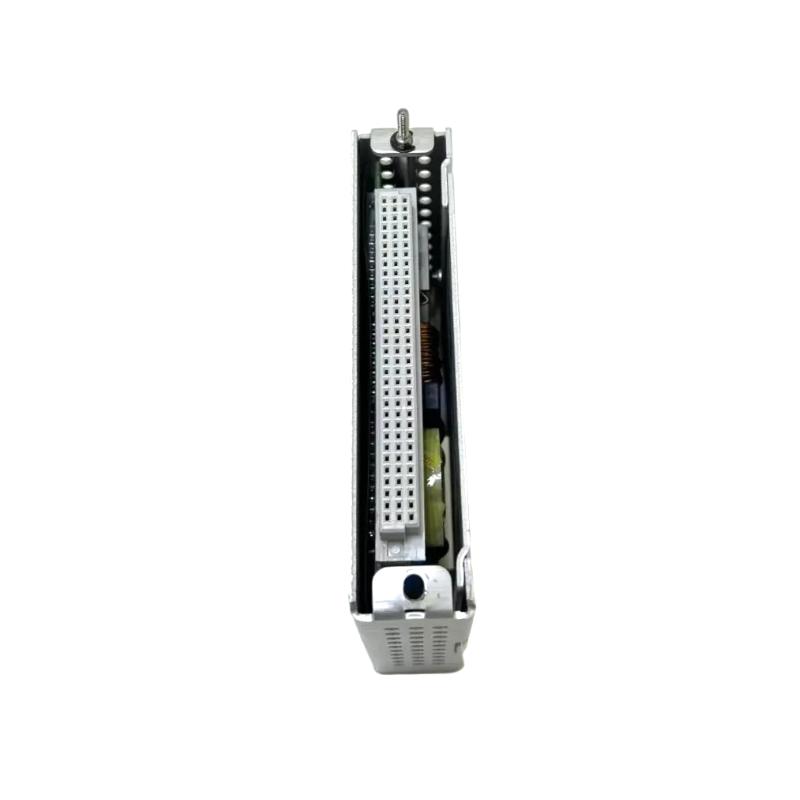

Backplane Connection: Installs in the PIM slot, mates with system backplane
Hot Swap: Supports insertion/removal in redundant systems without downtime
Environmental
Operating Temperature: –30 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Dimensions & Weight
Dimensions: 120.7 × 25.4 × 114.3 mm
Weight: 0.34 kg
