Overview

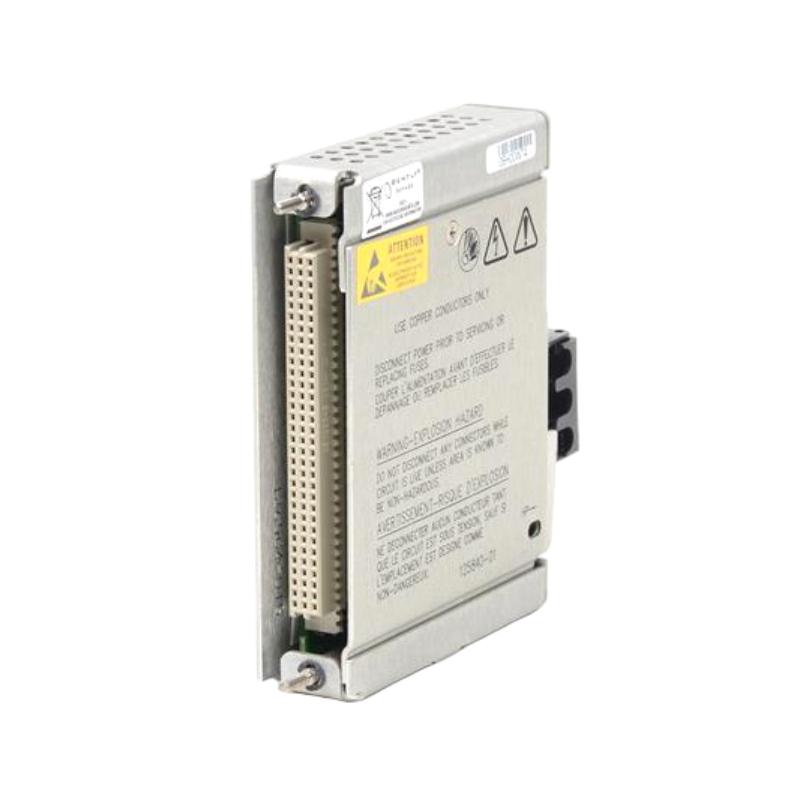

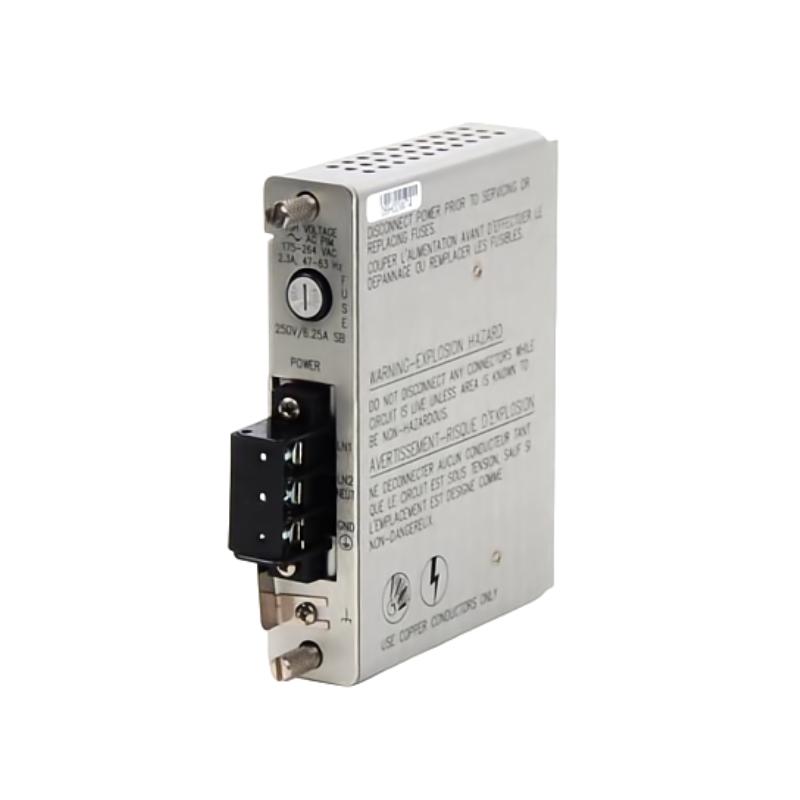

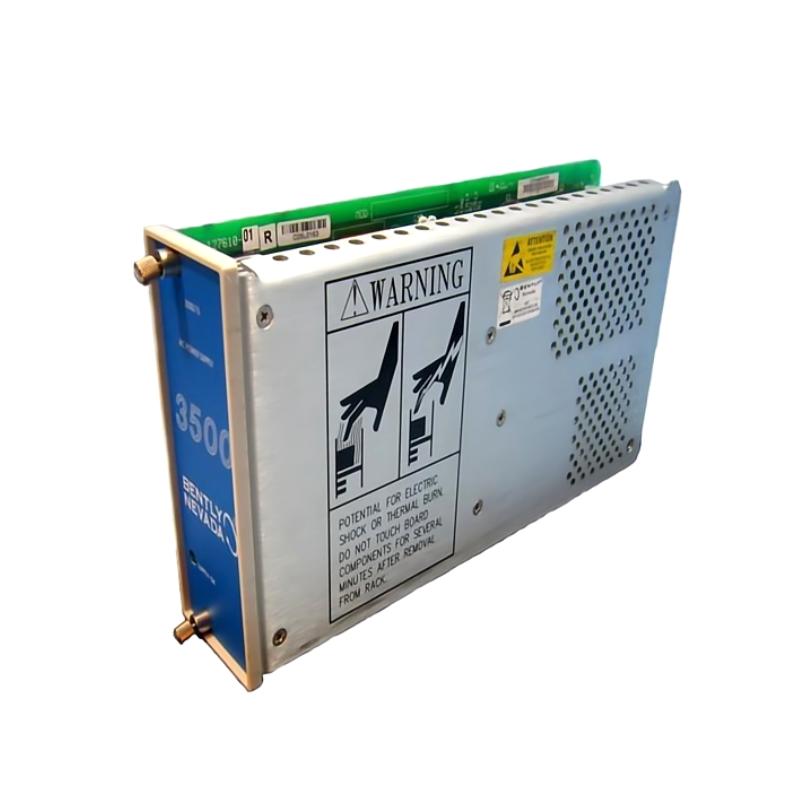

This assembly combines the 127610‑01 AC power supply module with the 125840‑01 high voltage AC power input module (PIM). Together they provide regulated DC power for the 3500/15 rack from high-voltage AC mains. Brand: Bently Nevada. Country of Origin: USA.
General Information
Modules: 127610‑01 (AC Power Supply) + 125840‑01 (High Voltage AC Input PIM)
Manufacturer: Bently Nevada
Brand: Bently Nevada
Country of Origin: USA
Type: Rack power conversion system
Function: Converts AC mains (175–264 V AC) to internal DC supply for the 3500/15 system
Power Specifications
Input Voltage Range: 175–264 V AC
Redundancy: Supports dual-module operation; insertion/removal of one module does not disrupt rack operation if the other is present

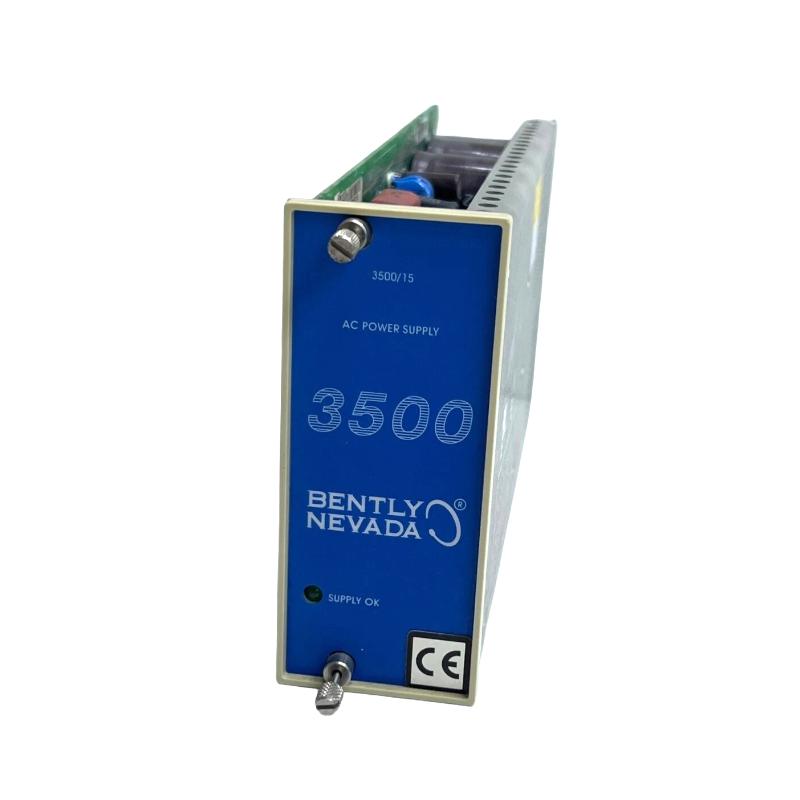

Indicator: LED “Supply OK” on the power module
Communication & Interface
Interface Role: Power conversion only (no direct I/O signaling)
Rack Placement: Modules install in designated half-height slots on the left side of the rack
Connection: Input via PIM; output to rack backplane
Environmental
Operating Temperature: –30 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Dimensions & Weight
Dimensions: 120.7 × 50.8 × 251.5 mm
Weight: 1.39 kg
