GE IS200TDBSH2A Discrete Simplex Card Price Advantage

Overview

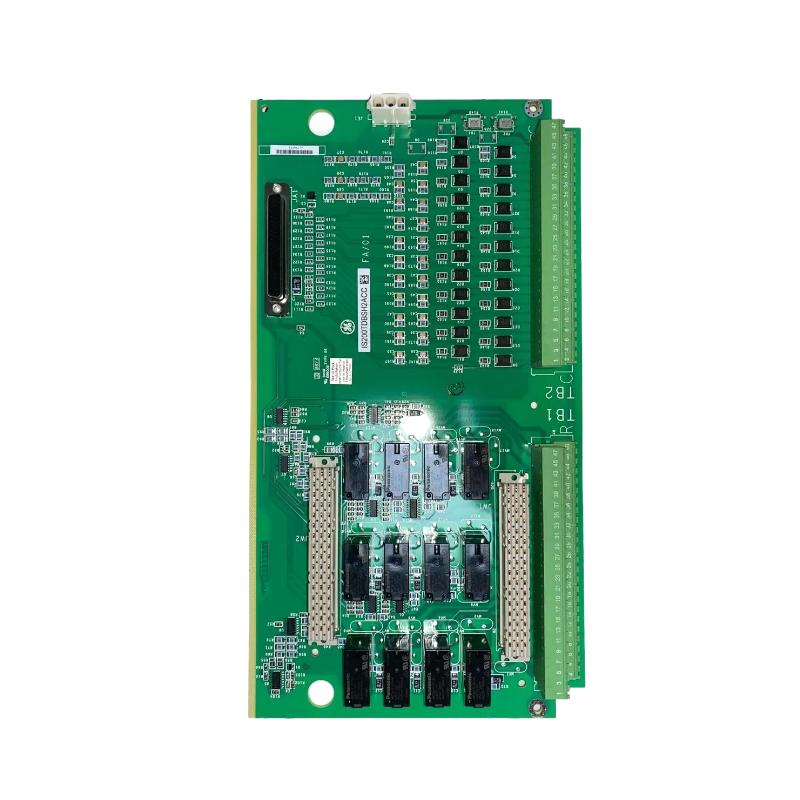

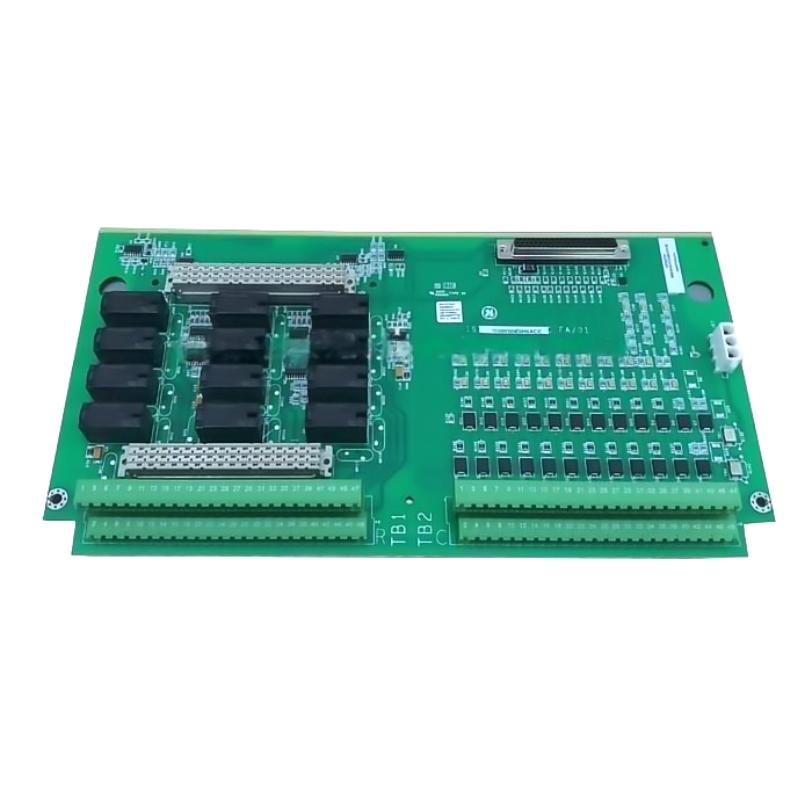

The GE IS200TDBSH2A is a terminal board used in the GE Mark VI control system. It serves as a discrete I/O interface, providing terminal connections for field wiring and routing signals between the control system and external devices. The module ensures reliable signal transmission in turbine and industrial automation applications.

General Information

Part Number: IS200TDBSH2A
Manufacturer: GE (General Electric)
Brand Origin: USA
Series: IS200 / Mark VI
Type: Terminal Board / Discrete Simplex Card
Mounting: Rack-mounted card installation within Mark VI system
Technology: Discrete I/O terminal interface with screw terminals and backplane communication

Power Specifications

Supply Voltage: Powered through the Mark VI control backplane
Power Consumption: Low-level, signal-only operation
Protection: Built-in surge and transient suppression; ESD-sensitive design
Indicators: None (passive terminal board)

Communication & Interface

Backplane Interface: Dual connector interface for communication with Mark VI system backplane
Terminal Blocks: Two field terminal blocks (TB1 and TB2) for discrete signal connection
Diagnostics: Signal monitoring performed by the connected controller; no onboard diagnostics
Operator Interface: Not applicable (passive I/O terminal board)

I/O & Channels

Relay Channels: None
Discrete Channels: Supports multiple discrete I/O channels via 48 terminals per block
External Load Support: Not designed for direct load driving; used only for signal routing

Environmental

Operating Temperature: 0 °C to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for use inside industrial cabinet)

Dimensions & Weight

Dimensions (L × W × H): 160 × 160 × 120 mm
Weight: ~0.8 kg

Authentic brand-new stock, available anytime, supported by a dedicated service team.
