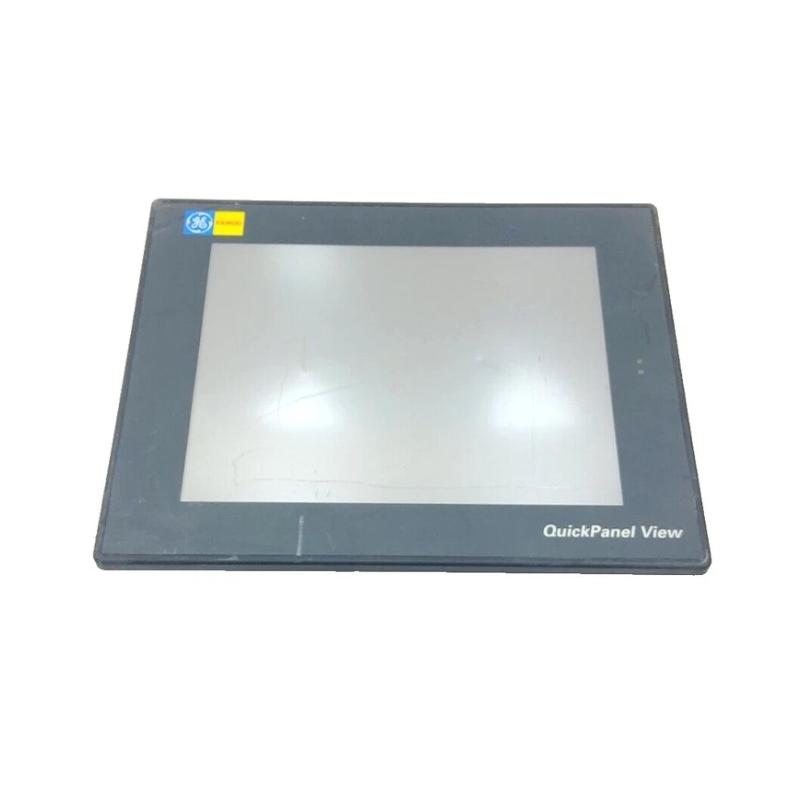

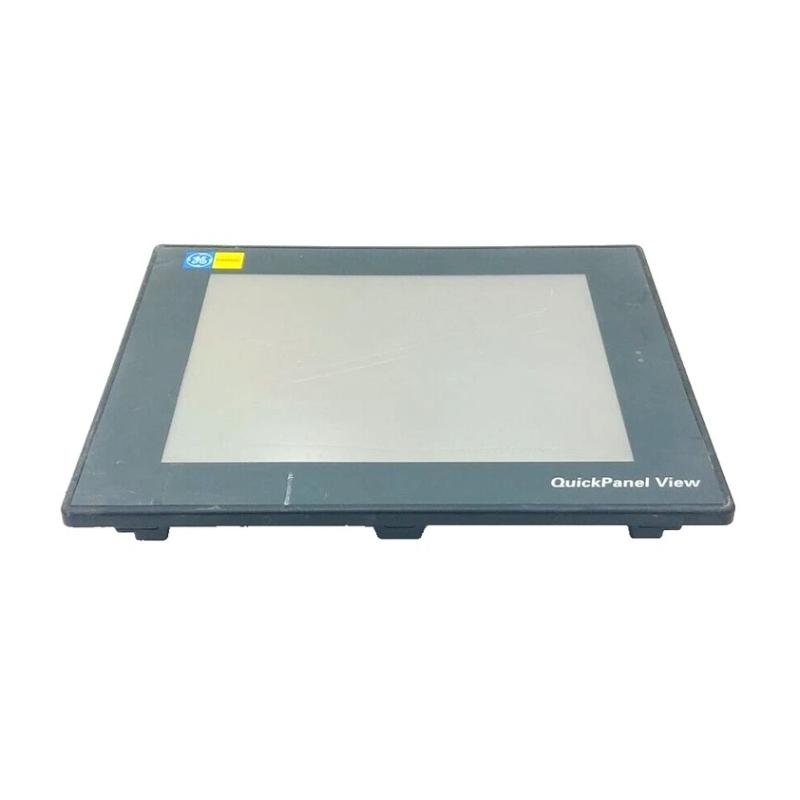

GE IC754VGL12CTD | 12‑inch Touch Panel HMI Recommended products

Overview
The GE IC754VGL12CTD is a 12‑inch color touchscreen human‑machine interface (HMI) terminal designed for industrial automation systems. It integrates a high‑resolution TFT display with embedded control functionality for operator visualization, data entry, and monitoring applications.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: IC754VGL12CTD
Product Type: Touch Panel HMI Terminal
Application: Factory floor operator interface for control, monitoring, and data visualization

Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approximate value 25‑30 W (typical)
Protection Features: Built‑in surge protection, reverse polarity protection

Communication & Interface
Display Size: 12.1‑inch TFT color panel
Resolution: 800 × 600 pixels
Touch Input: Resistive touchscreen interface

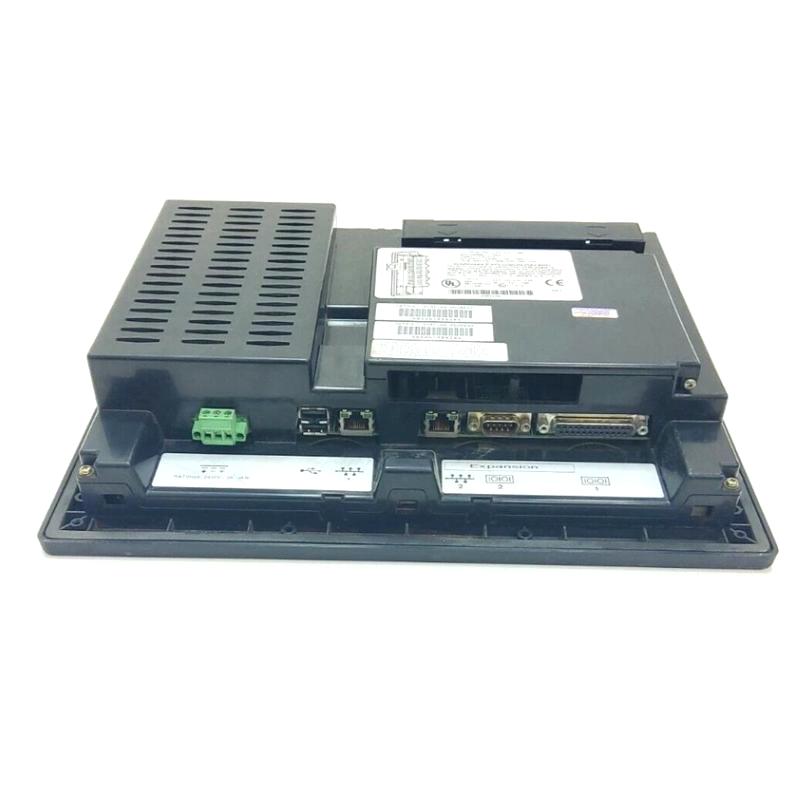

Ports & Connectivity: Ethernet, RS‑232/RS‑485, USB, expansion I/O (depending on model variant)

Environmental
Operating Temperature: 0 °C to +50 °C
Storage Temperature: –20 °C to +60 °C
Humidity: 10‑90% RH, non‑condensing
Mounting: Panel‑mounted; suitable for indoor industrial control cabinets

Dimensions & Weight
Dimensions (L × W × H): Approx. 300 × 240 × 75 mm
Weight: Approx. 2.4 kg

Brand-new original products ready to ship, contact our customer service anytime for pricing.
