Overview

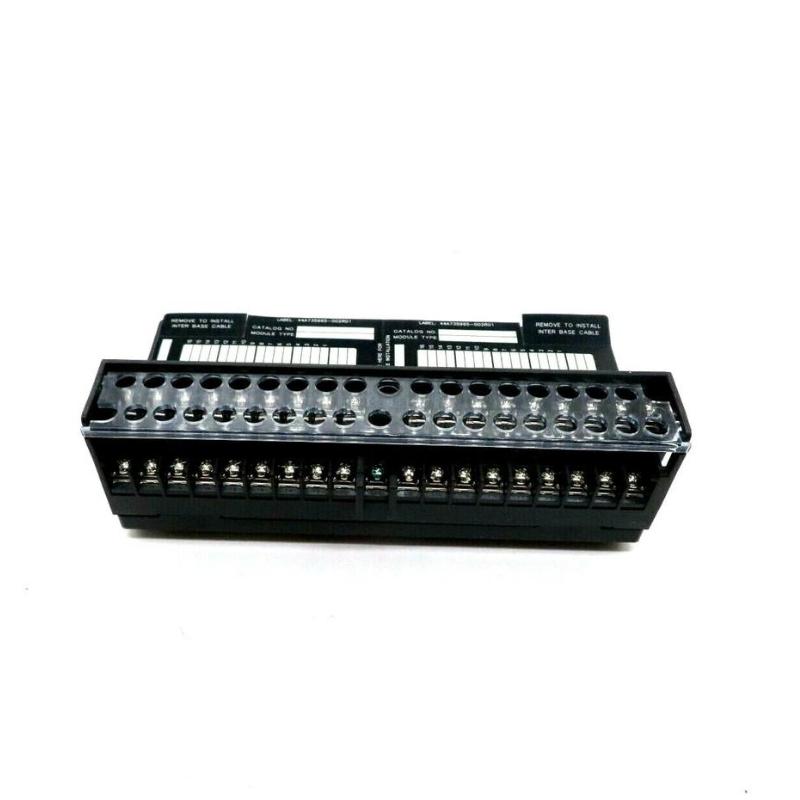

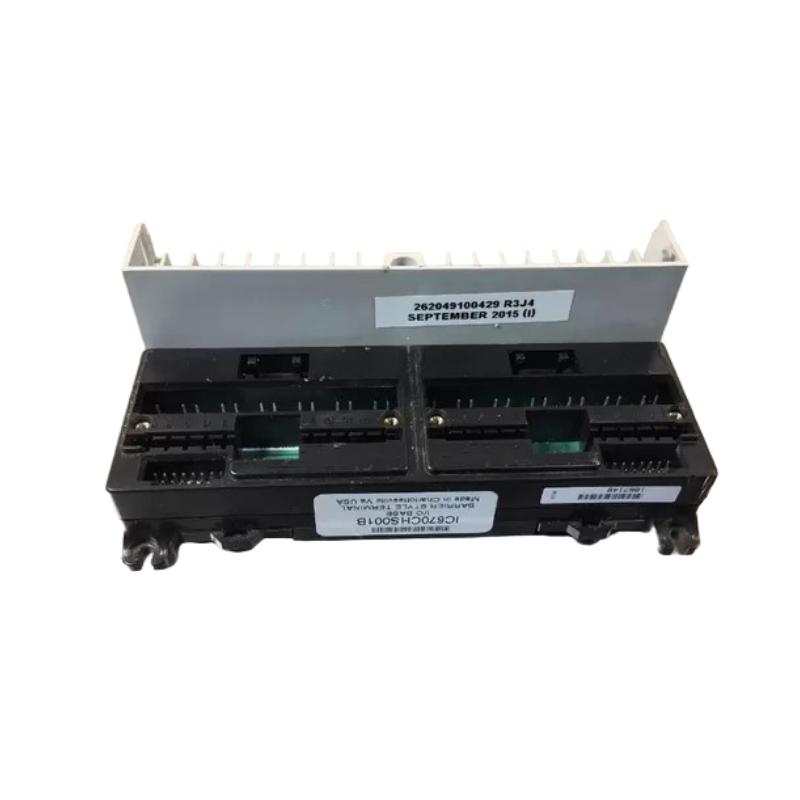

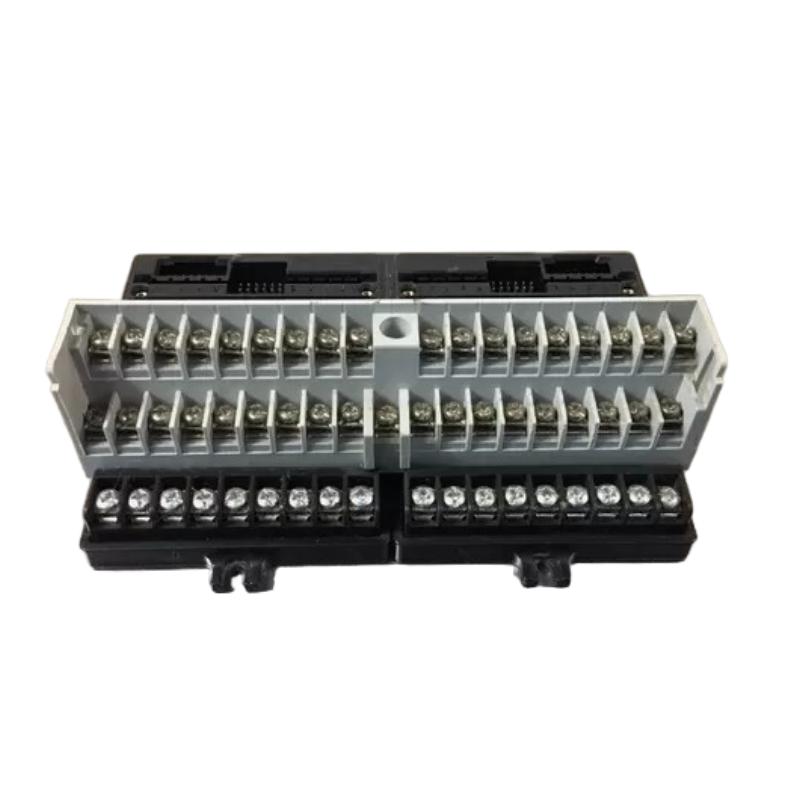

The GE IC670CHS001 is a barrier-type terminal block designed for GE Series 90‑70 and IC670 automation systems. It provides safe and reliable wiring connections, ensuring organized signal distribution and electrical isolation between circuits in industrial control panels.
General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: IC670CHS001
Product Type: Barrier-Type Terminal Block
Application: Industrial control cabinets, PLC wiring, signal isolation, and distribution
Power Specifications
Supply Voltage: Suitable for standard low-voltage control circuits (24 V DC typical)
Current Rating: Up to 10 A per terminal (depends on configuration)
Protection Features: Provides circuit isolation and prevents accidental contact
Communication & Interface
Interface Type: Screw terminal connections for field wiring
Connectivity: Connects sensors, actuators, and control modules to the system bus
Mounting: DIN rail or panel mounting for modular installation
Environmental
Operating Temperature: −25 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation: Standard industrial control cabinet environment
Dimensions & Weight
Dimensions (L × W × H): Approx. 100 × 15 × 50 mm
Weight: Approx. 0.12 kg
