Overview

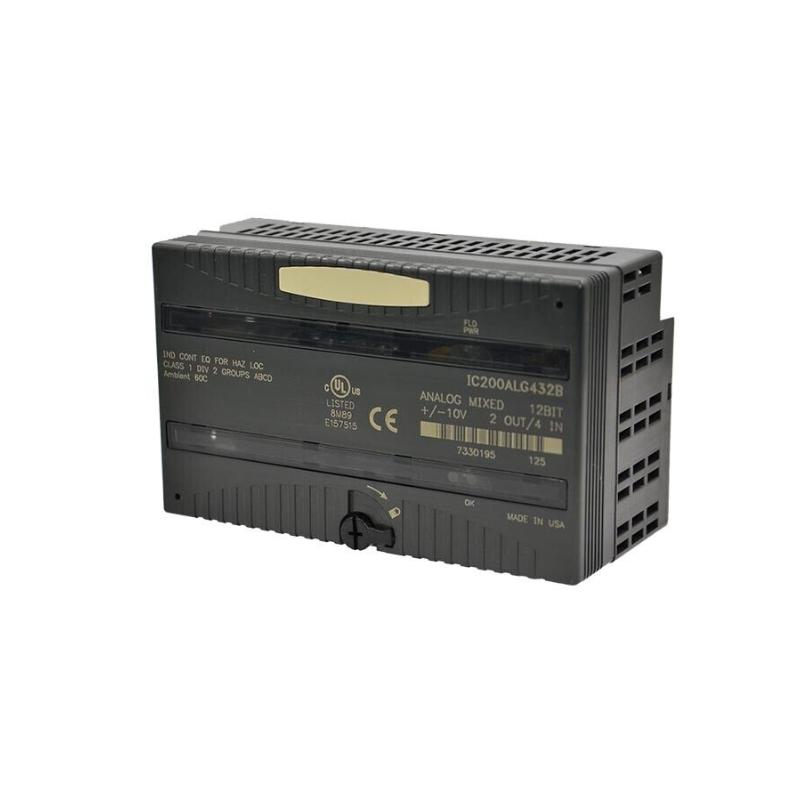

The GE IC200ALG432B is a mixed analog module from the VersaMax family combining 4 voltage input channels and 2 voltage output channels. It is designed for compact modular control systems where both analog input and output functions are required.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: IC200ALG432B
Product Type: Mixed Analog I/O Module (4 Inputs / 2 Outputs)
Application: Industrial automation systems requiring both analog inputs and analog outputs in one module

Power Specifications
Supply Voltage: +5 V DC from backplane for logic; +18 to +30 V DC for field circuits
Current Consumption: Approx. 60 mA from logic supply
Inputs: 4 voltage input channels, ±10 V DC
Outputs: 2 voltage output channels, ±10.24 V DC
Protection & Diagnostics: Field-power presence LED, loss of user-side power fault reporting

Communication & Interface
Interface Type: Plug-in onto VersaMax backplane carrier
Channels: 4 single-ended voltage inputs, 2 single-ended voltage outputs
Conversion Resolution: 12-bit analog/digital and digital/analog conversion
Update Rate: Typical 0.4 ms per module
Interface Indicators: LEDs for module status and field circuit power

Environmental
Operating Temperature: 0 °C to +60 °C
Humidity: Up to 95% RH, non-condensing
Installation: Rack or carrier mounted within industrial control cabinet

Dimensions & Weight
Dimensions (L × W × H): Approx. 120 × 30 × 110 mm
Weight: Approx. 0.16 kg
