Overview

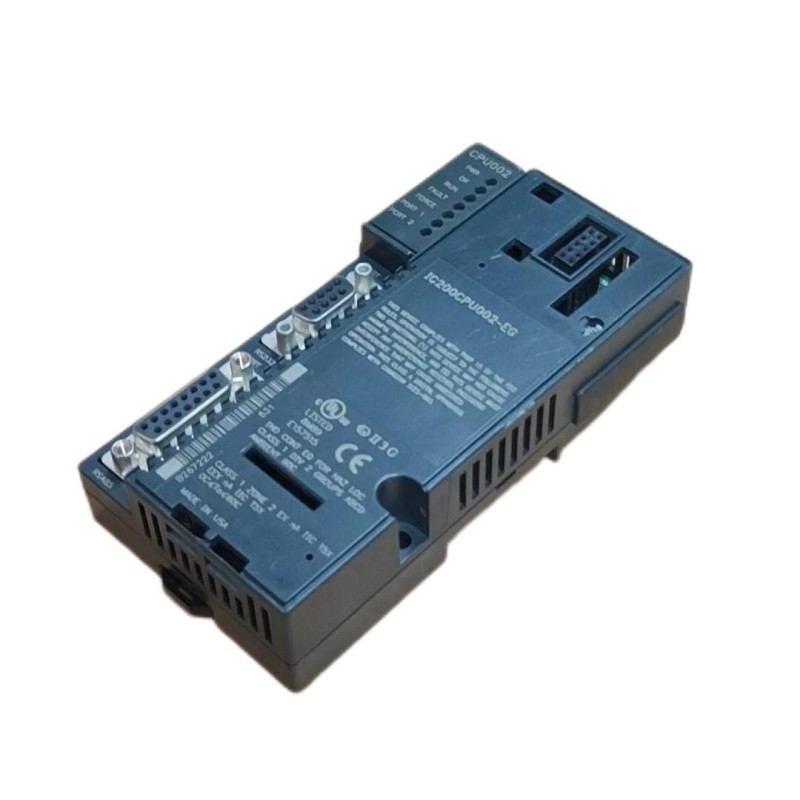

The GE IC200CPU002‑EG is a programmable logic controller (PLC) CPU unit from the VersaMax series. It provides 42 KB of user memory, built-in RS‑232 and RS‑485 ports, and supports ladder logic programming with floating-point data functions. It is designed for compact automation systems requiring reliable control and communication.
General Information
Part Number: IC200CPU002‑EG
Manufacturer: GE (General Electric)
Brand / Country of Origin: GE / USA
Series: VersaMax CPU Series
Type: CPU Module
Function: Executes system logic, manages I/O scanning, communications, and diagnostics
Power Specifications
The module draws power from the VersaMax backplane with internal 5 V and 3.3 V supplies. Typical current draw is approximately 460 mA at 5 V and 5 mA at 3.3 V. The module features a RUN/STOP switch and LEDs indicating status, fault, and communication.
Communication & Interface
The CPU module includes RS‑232 and RS‑485 serial ports. It supports SNP Slave, RTU Slave, and serial I/O protocols, allowing external device connection and ladder logic program download. The module supports up to 2048 discrete inputs and 2048 discrete outputs in local I/O mode.
Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in a cabinet
Mounting: DIN‑rail or panel mount; vertical or horizontal orientation permissible
Dimensions & Weight
Dimensions (L × W × H): 66.8 × 128 × 69.1 mm
Weight: 0.449 kg
