Overview

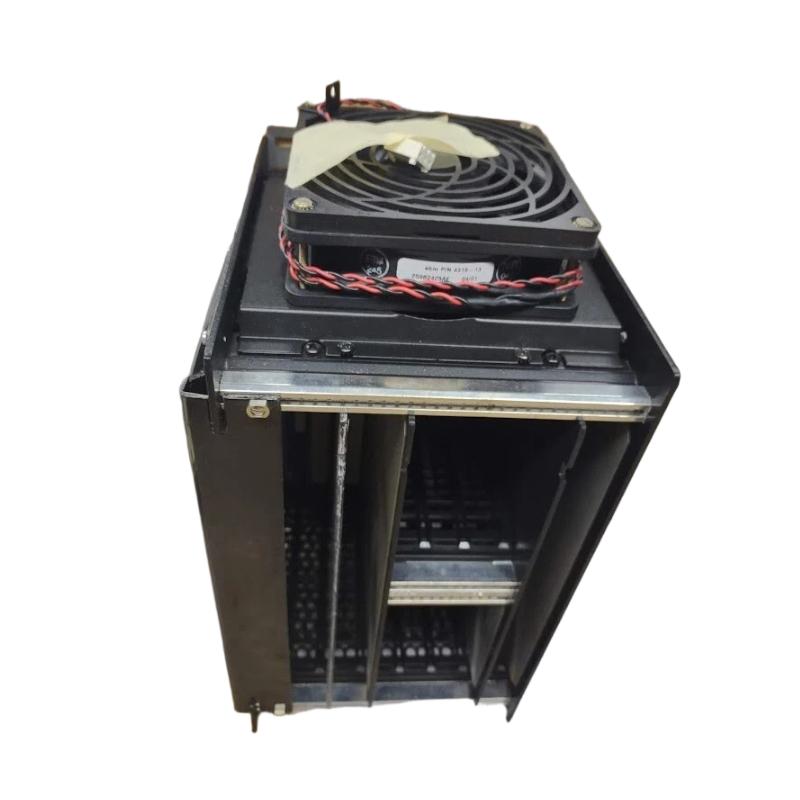

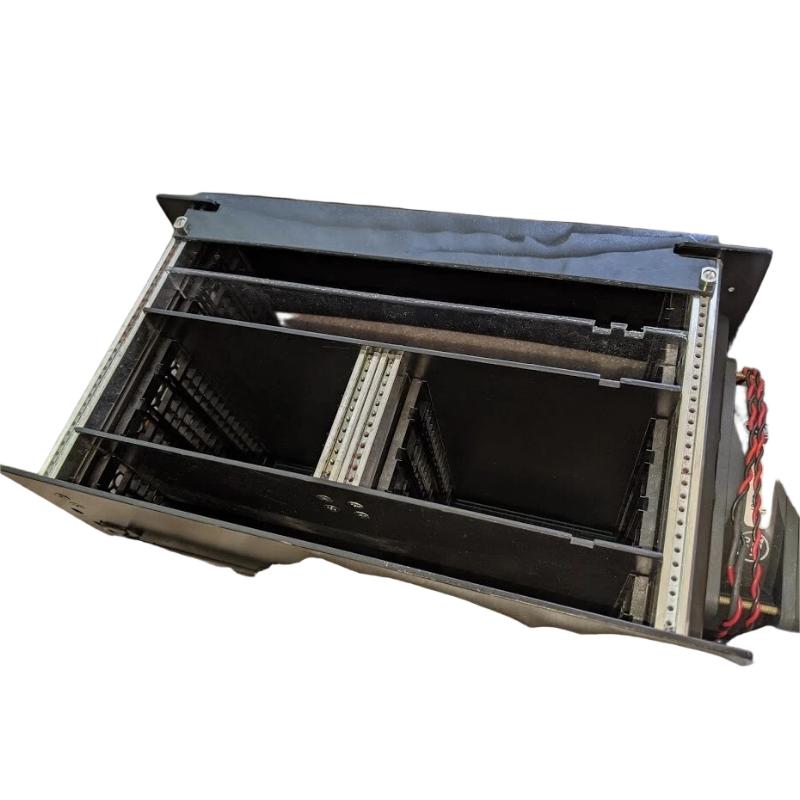

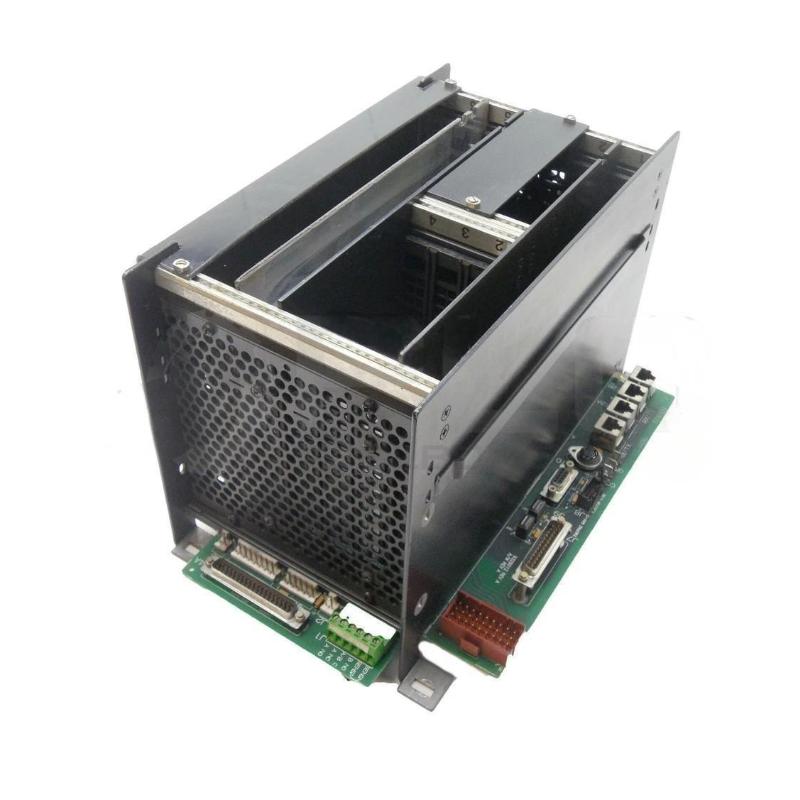

The GE IS200CABPG1BAA is a chassis module designed to house and interconnect control and I/O cards in industrial automation systems. It forms the structural and electrical foundation of a modular control station framework.
General Information
Part Number: IS200CABPG1BAA
Brand / Country of Origin: GE / USA
Product Type: Chassis Module
Series: IS200 / Control Station Chassis
Power Specifications
Supply Voltage: Through system rack bus (no standalone power supply required)
Power Handling: Enables distribution of power and signal buses to installed modules
Protection: Mechanical and electrical design ensures proper connectivity and module alignment
Communication & Interface
Backplane: Provides data and power bus interfaces to support installed control and I/O modules
Slots: Accepts multiple plug‑in modules of the IS200 family
Termination: Supports wiring harness and module interlock features for system integrity
Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in cabinet
Cooling: No active cooling required, natural convection permitted
Dimensions & Weight
Dimensions (L × W × H): Approx. 160 × 160 × 120 mm
Weight: Approx. 0.8 kg
