Overview
The GE IS200VCMIH2BEE is a high-performance communication board used in the Mark VI/Speedtronic control system. It enables rapid data exchange across control modules and I/O boards, supporting real-time industrial process control.
General Information
Part Number: IS200VCMIH2BEE
Brand / Country of Origin: GE / USA
Product Type: Communication Board
Series: Mark VI / Speedtronic
Power Specifications
Supply Voltage: 24 V DC nominal

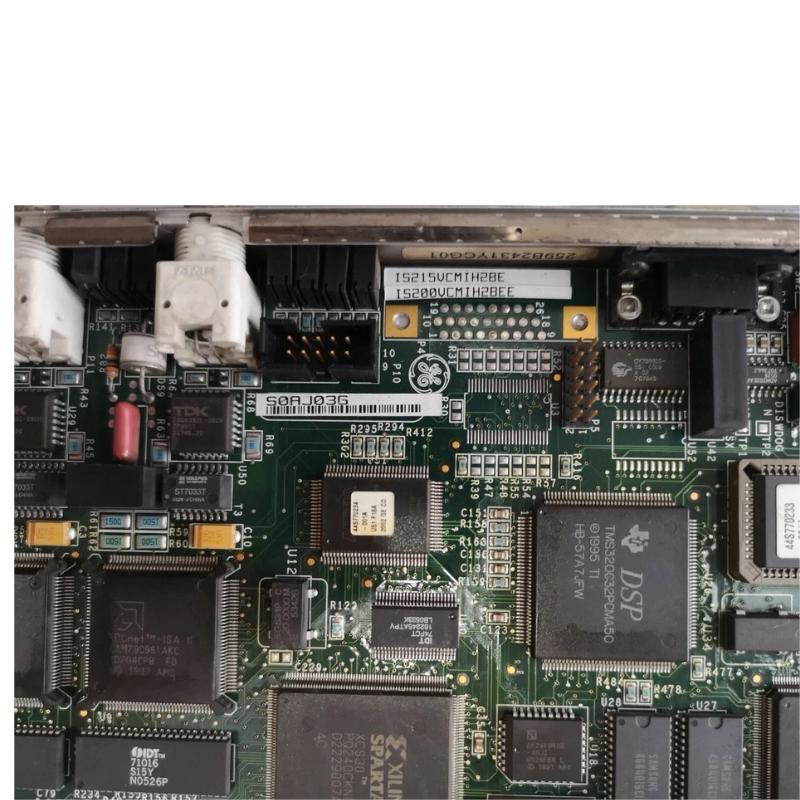

Processor: TMS320C32 32-bit digital signal processor
Operating Temperature: −30 °C to +65 °C
Communication & Interface

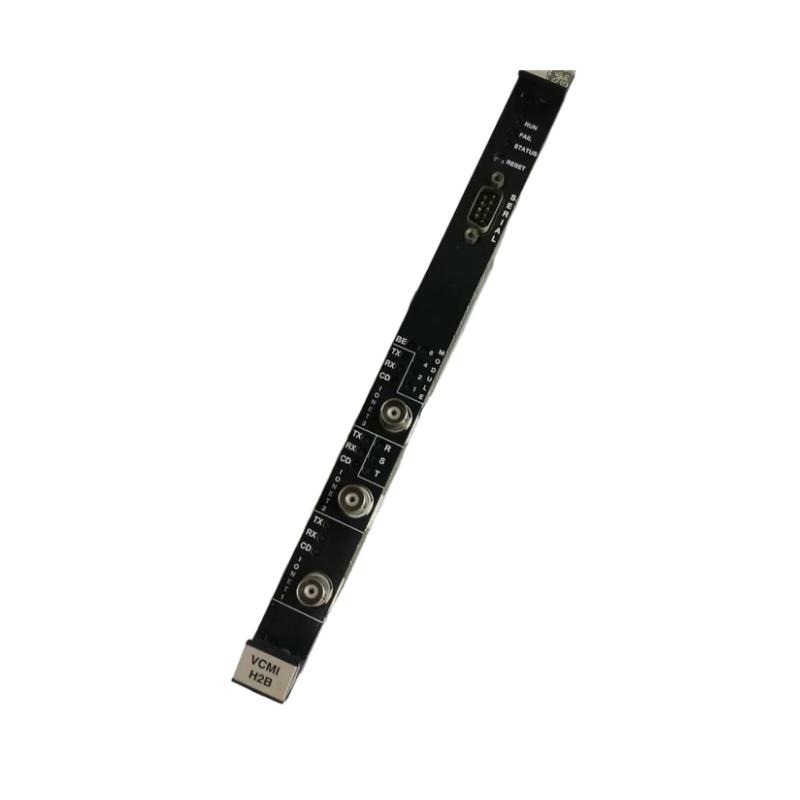

Interface Type: 6U high VME board with dual backplane connectors
Network Ports: Three IONet 10Base2 Ethernet ports (for TMR configuration) plus RS-232 serial port
Functions: Master bus controller, protocol conversion, timing synchronization and fault monitoring
Environmental
Operating Temperature: −30 °C to +65 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 when mounted in enclosure
Dimensions & Weight
Dimensions (approximate): 280 × 30 × 120 mm
Weight: Approx. 0.4 kg
