GE IS200VAICH1C Analog Input Module Recommended products

Overview

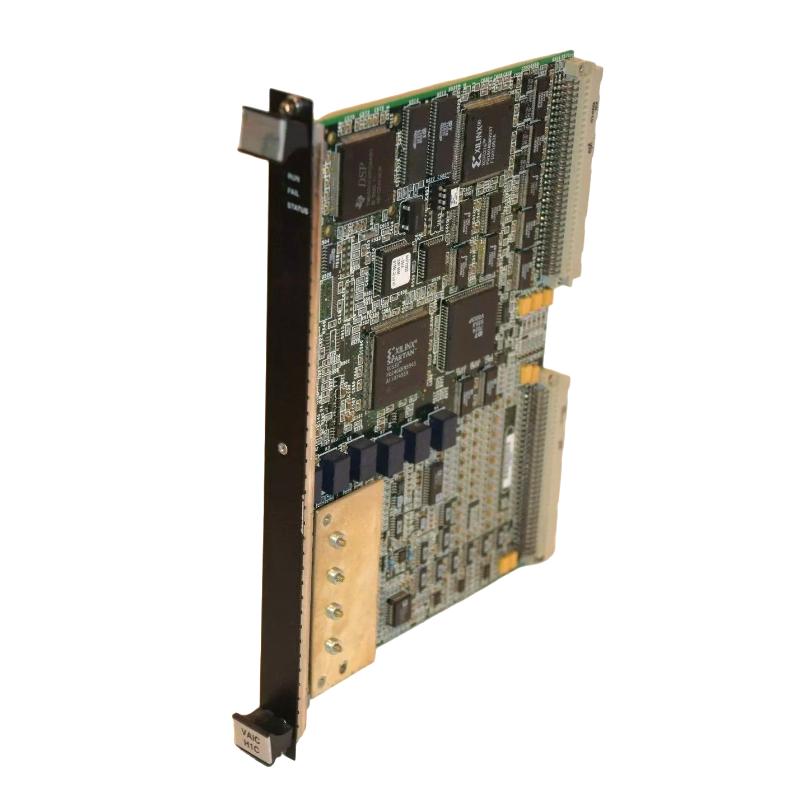

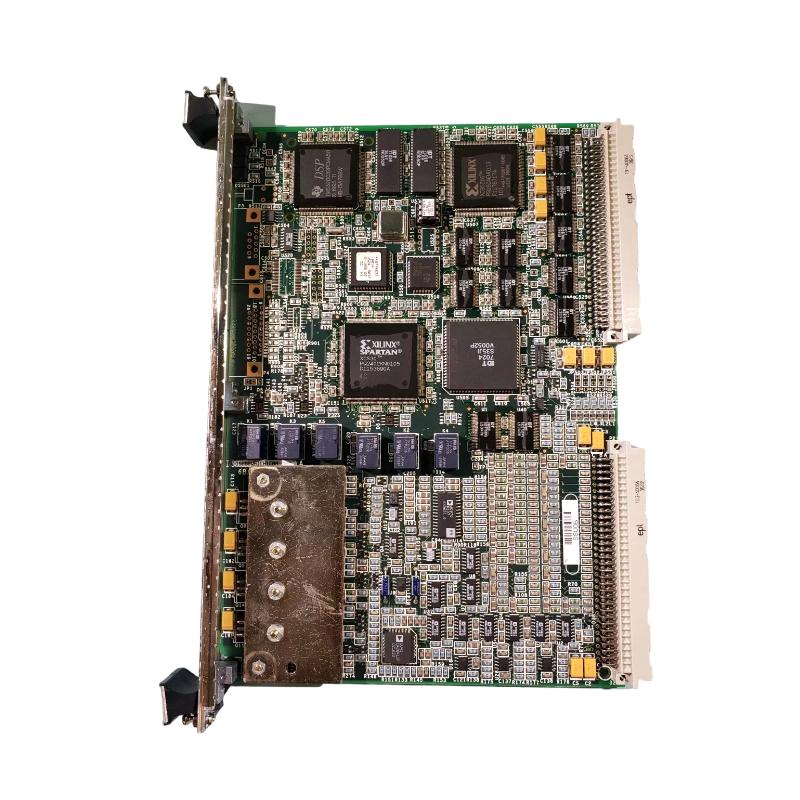

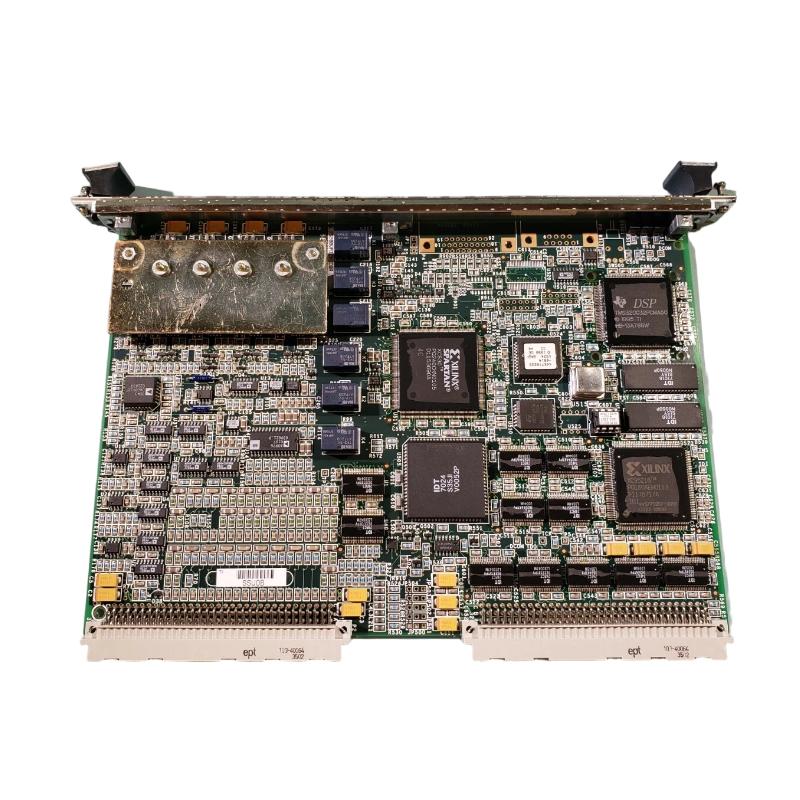

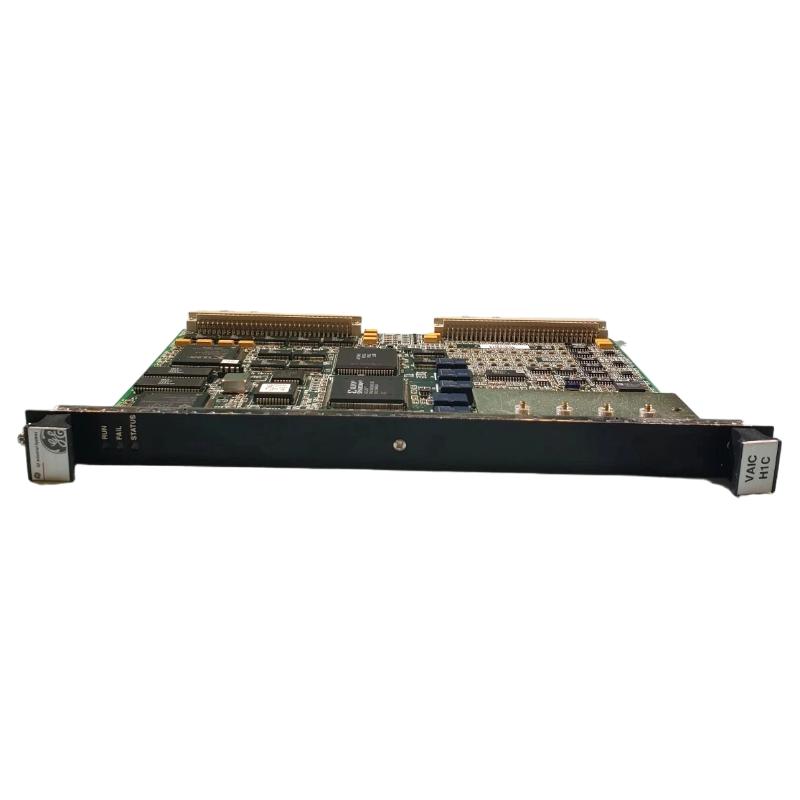

The GE IS200VAICH1C is an analog input module used in GE’s Series 90-70 and PACSystems control systems. It converts field analog signals, such as 4–20 mA or voltage inputs, into digital values for monitoring and control, enabling accurate process measurement and data acquisition.

General Information

• Part Number: IS200VAICH1C

• Manufacturer: GE (General Electric)

• Series: IS200 / PACSystems

• Module Type: Analog Input Module

• Country of Origin: United States

• Mounting: Rack-mounted in PACSystems or Series 90-70 backplane

Power Specifications

• Supply Voltage: 5 V DC via backplane

• Power Consumption: ≤ 5 W

• Input Source: Powered from controller backplane

• Protection: Surge and reverse-polarity protection

• Indicators: LEDs for power, channel status, and fault

Communication & Interface

• Signal Type: Analog input (current/voltage)

• Input Range: 4–20 mA, 0–10 V

• Channels: 8 independent analog inputs

• Diagnostics: Open/short circuit detection, status reporting

• Configuration: Managed via GE Proficy Control or Series 90-70 configuration software

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for cabinet installation)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112 mm

• Weight: ~0.3 kg

 We ensure every product is authentic, new, and ready in stock for shipment.
