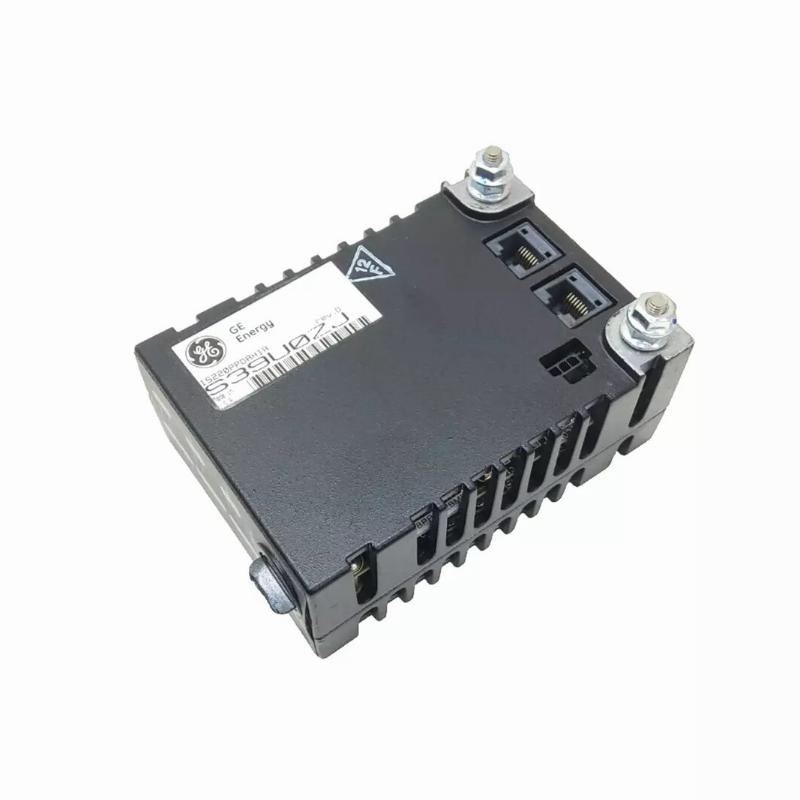

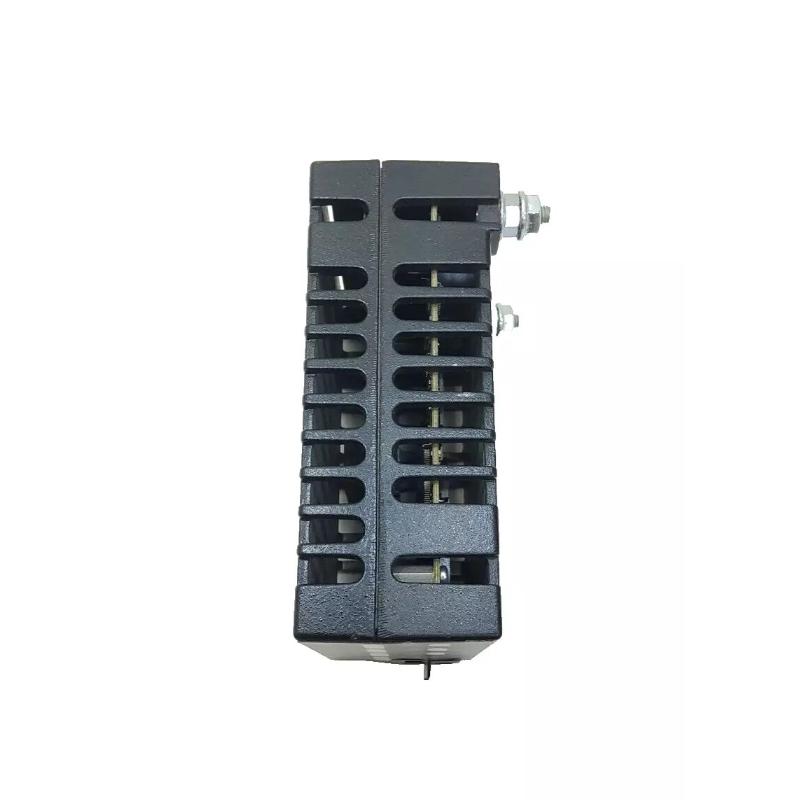

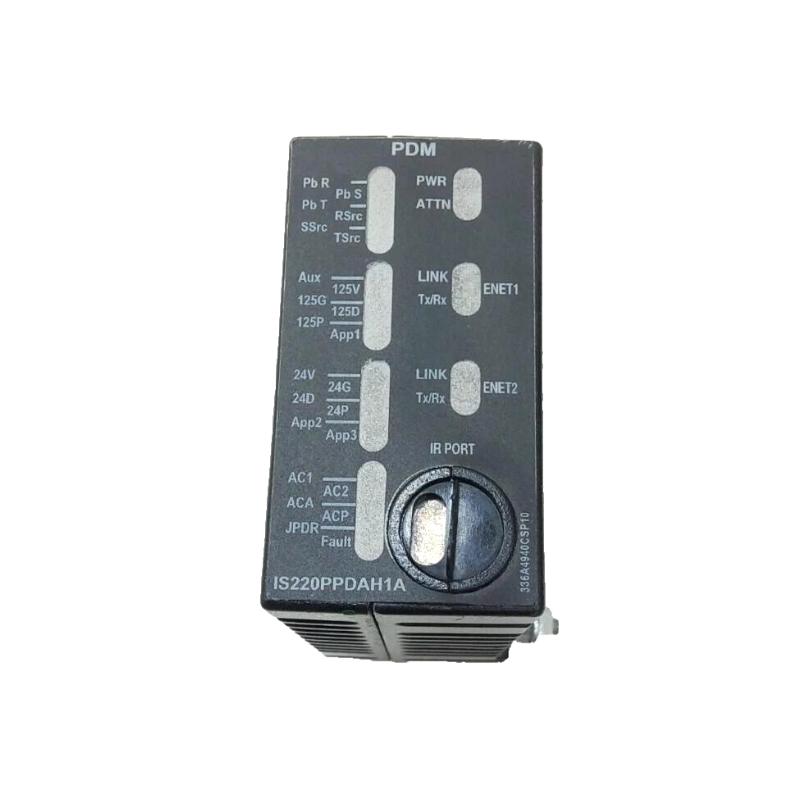

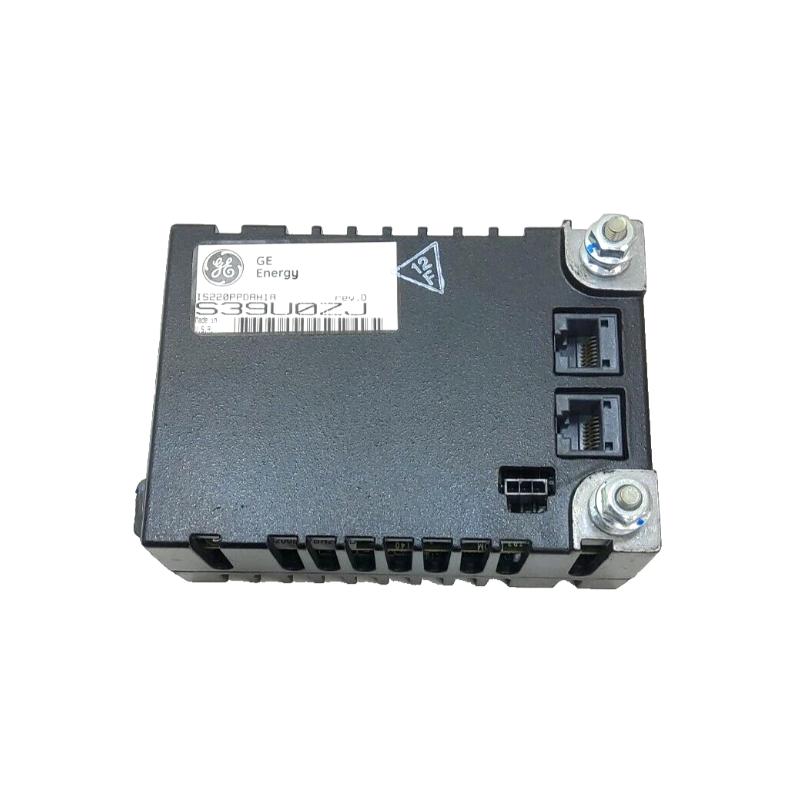

GE IS220PPDAH1A Pulse/Digital I/O Module 12-Month Warranty

Overview

The GE IS220PPDAH1A is a digital input/output module designed for GE’s PACSystems and Series 90-70 control systems. It provides precise pulse and digital signal acquisition, enabling accurate monitoring and control of industrial processes, including timing, counting, and discrete input/output applications.

General Information

• Part Number: IS220PPDAH1A

• Manufacturer: GE (General Electric)

• Series: IS220 / PACSystems

• Module Type: Pulse/Digital I/O Module

• Country of Origin: United States

• Mounting: Rack-mounted in PACSystems or Series 90-70 system chassis

Power Specifications

• Supply Voltage: 24 V DC for module logic

• Power Consumption: ≤ 8 W

• Input Source: Powered via system backplane

• Protection: Surge, short-circuit, and reverse-polarity protection

• Indicators: LEDs for power, channel activity, and fault

Communication & Interface

• Input/Output Type: Digital and pulse I/O

• Channels: 8 digital inputs and 8 digital outputs

• Diagnostics: Open/load detection, pulse signal monitoring, and fault reporting

• Configuration: Managed via GE Proficy Control or Series 90-70 configuration software

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for installation inside industrial cabinets)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112 mm

• Weight: ~0.35 kg

Authentic brand-new inventory, fast quotations, and expert support at any time.
