GE IS200ERBPG1ACA Exciter Regulator Backplane 100% New

Overview

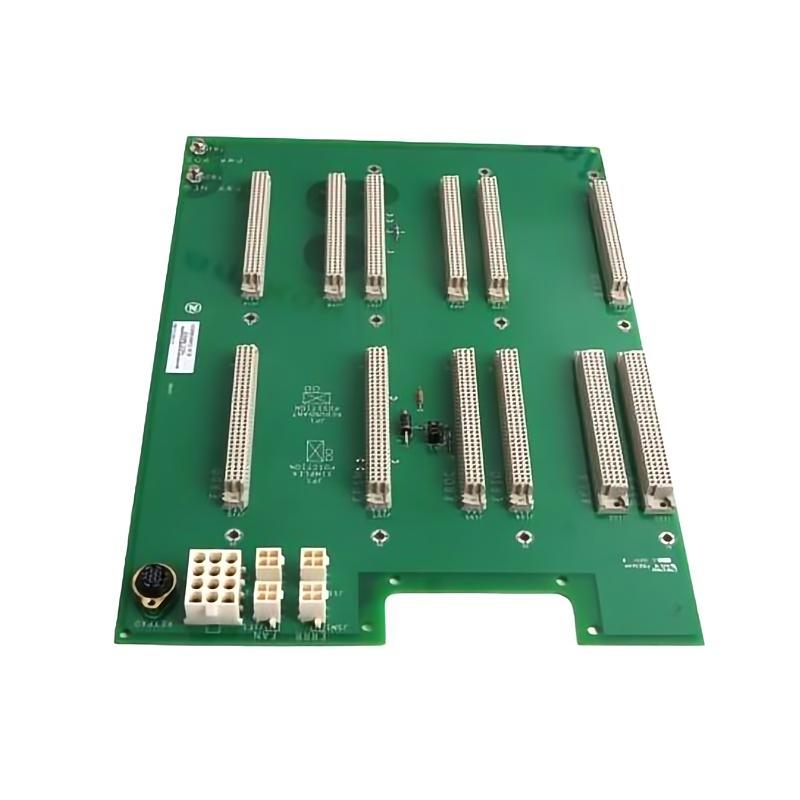

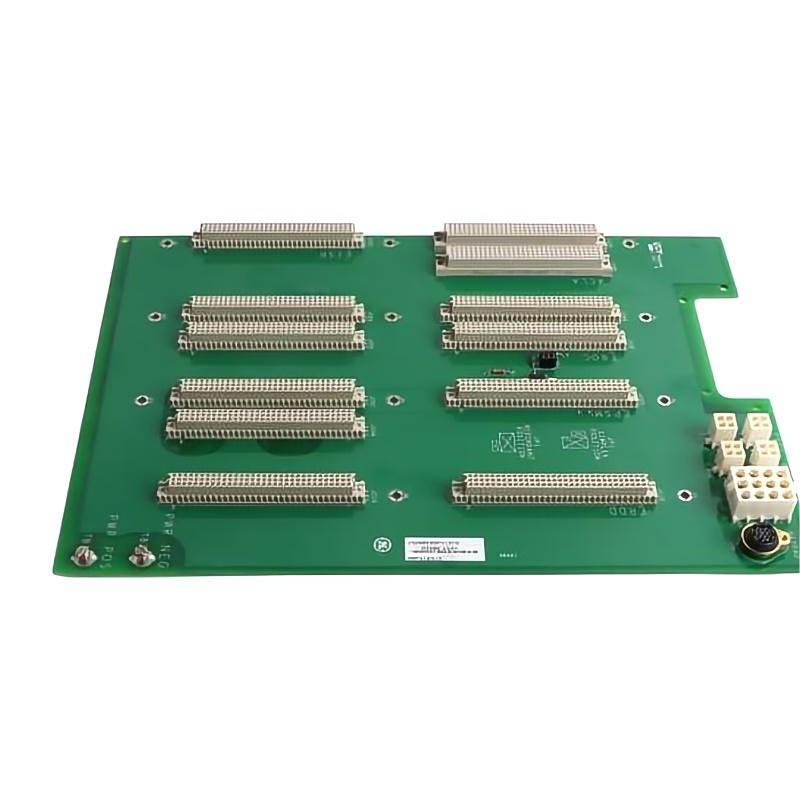

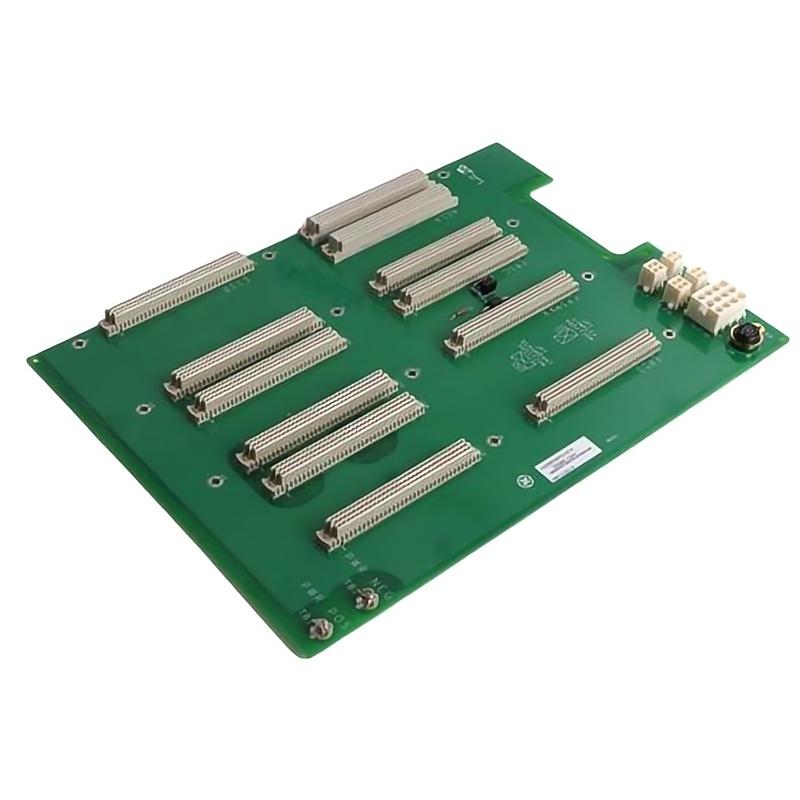

The GE IS200ERBPG1ACA is an Exciter Regulator Backplane (ERBP) designed for the EX2100 excitation control system. It serves as the primary interface for connecting exciter regulators within a GE control system, enabling communication and power distribution to ensure proper excitation control.

General Information

• Part Number: IS200ERBPG1ACA

• Manufacturer: General Electric (GE)

• Series: EX2100

• Product Type: Exciter Regulator Backplane

• Functional Revision: A

• Made In: USA

• Compatibility: Designed for use with GE EX2100 excitation control systems

Electrical Specifications

• Number of Channels: 12

• Input Span: 4–20 mA

• Common Mode Voltage Range: ±5 V

• Maximum Lead Resistance: 15 Ω

• Analog Output Current: 0–20 mA

• Communication Interface: RS-485

• Power Supply: +5 VDC

• Power Consumption: Approximately 20 W

Environmental

• Operating Temperature: −30°C to +65°C

• Storage Temperature: −40°C to +85°C

• Relative Humidity: 5% to 95%, non-condensing

• Vibration Resistance: 5g, 10–150 Hz (IEC 60068-2-6)

• Shock Resistance: 15g, 11 ms (IEC 60068-2-27)

• Altitude: Up to 3,000 meters

• Cooling: Natural convection

• MTBF: >200,000 hours at 25°C (calculated)

Dimensions & Weight

• Dimensions (L × W × H): 180 × 180 × 30 mm

• Weight: 0.5 kg
