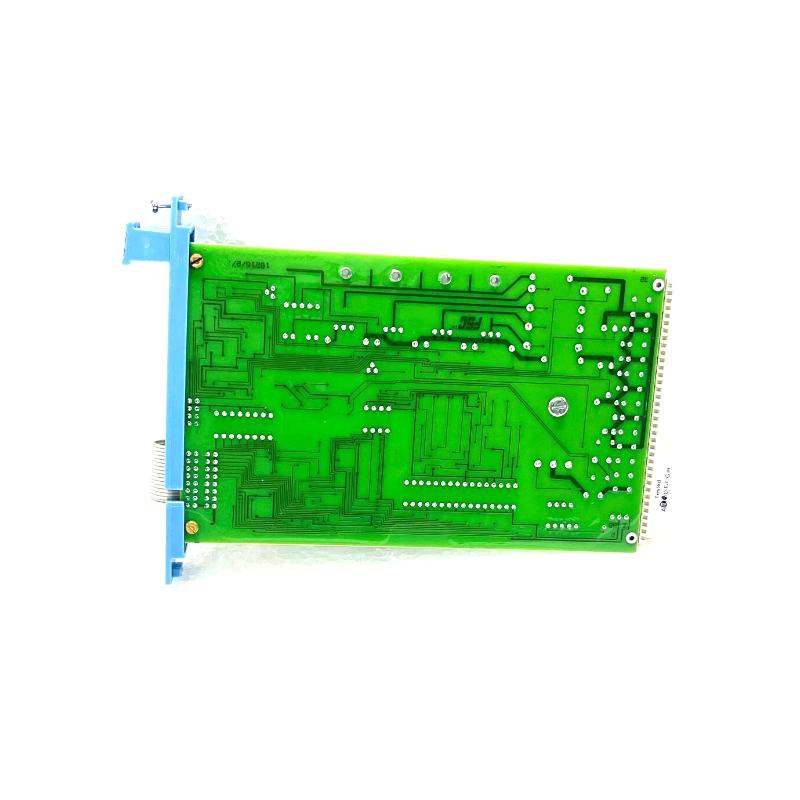

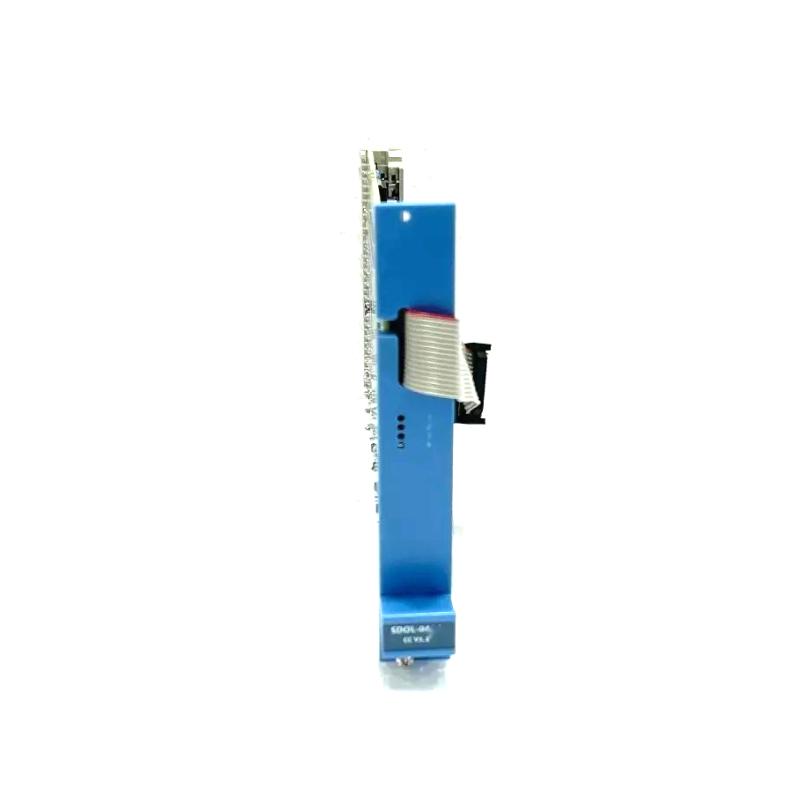

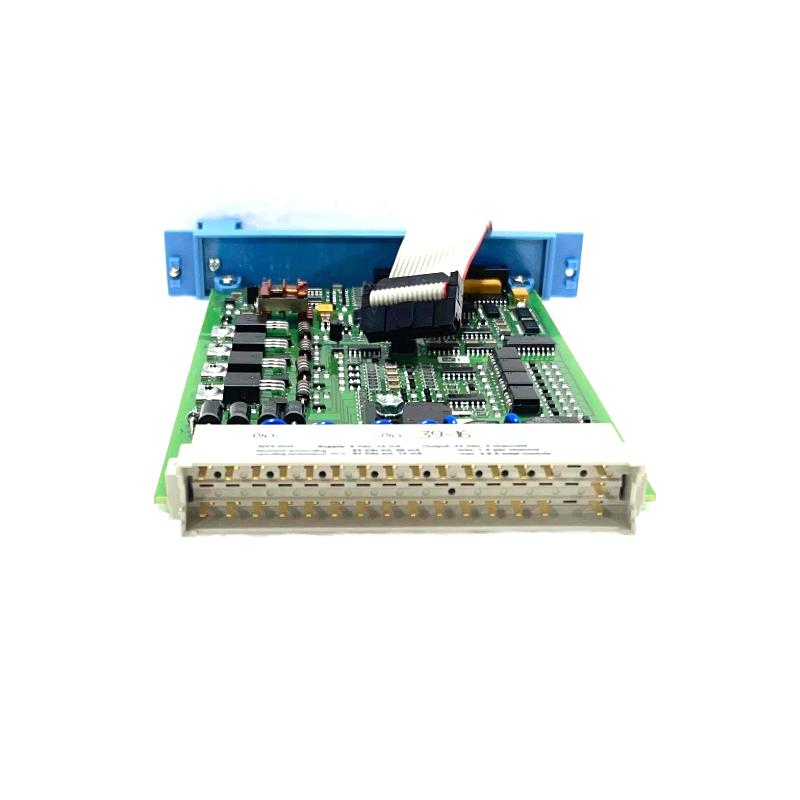

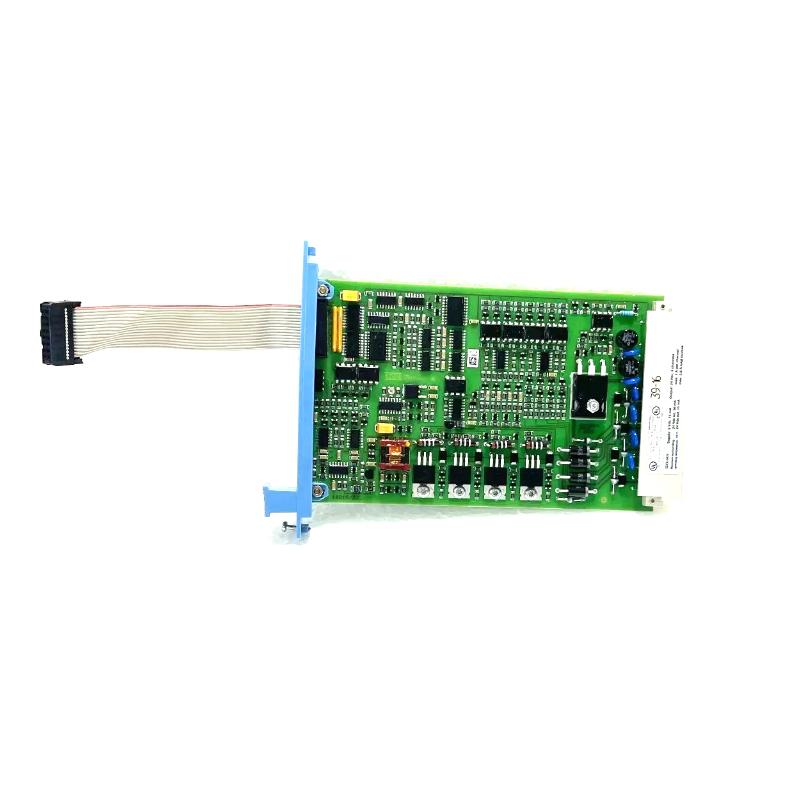

Honeywell FS‑SDOL‑0448 | Digital Output Module Price Advantage

Overview
The Honeywell FS‑SDOL‑0448 is a high-integrity digital output module designed for use in safety instrumented systems. It offers four isolated, loop‑monitored output channels rated at 48 V DC, and supports safe de‑energize capability and diagnostics, making it suitable for industrial safety applications.

General Information
Brand: Honeywell
Country of Origin: United States
Model Number: FS‑SDOL‑0448
Series: Safety Manager I/O Modules
Product Type: Safe Loop‑Monitored Digital Output Module
Application: Safety instrumented systems (SIS), actuator/valve control, safety logic output interface

Power Specifications
Supply Voltage: 48 V DC nominal for field outputs
Output Channels: 4 digital output channels
Output Rating: Max current approx. 0.5 A per channel (typical)
Protection Features: Short‑circuit and overload detection; loop‑monitoring of output circuits; fail‑safe de‑energize path

Communication & Interface
Channels: 4 independently isolated digital outputs
Output Type: 48 V DC, monitored solid‑state source
Load Capability: Designed for monitored loops, supports resistive or inductive loads within specified current rating
Diagnostics: Channel fault detection, loop integrity monitoring, status indication via LEDs

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Rack‑mounted in control cabinet environment
Certifications: Designed for use in safety instrumented applications, complies with industrial safety system requirements

Dimensions & Weight
Dimensions (L × W × H): Approx. 160 × 100 × 58 mm
Weight: Approx. 0.65 kg
