Honeywell 8C-PAINA1 51454470-175 Analog Input Module Efficient delivery

Overview

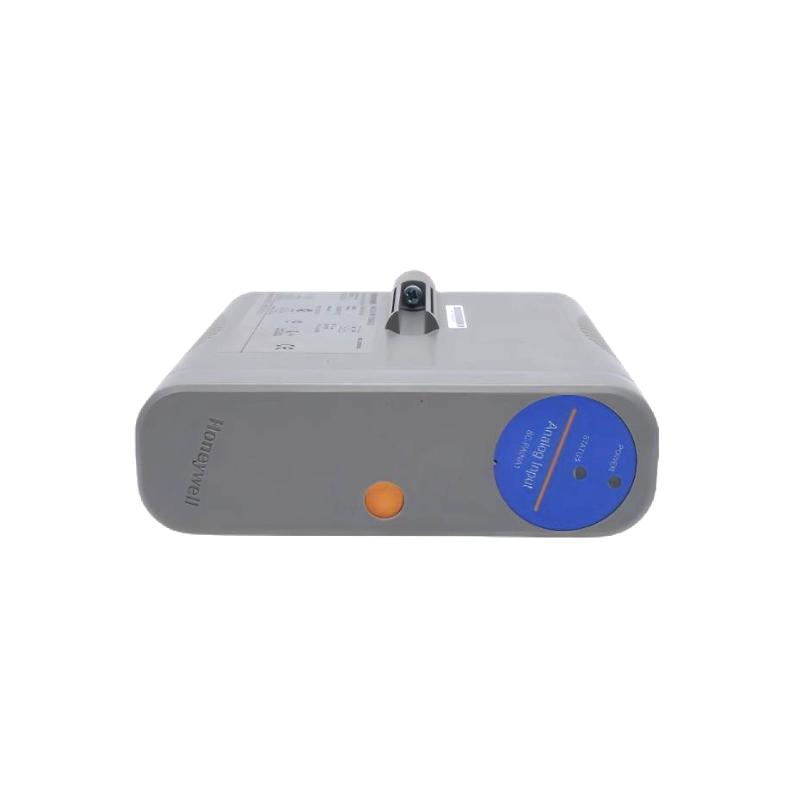

The Honeywell 8C-PAINA1 51454470-175 is a 16-channel analog input module designed for use in Honeywell's Series 8 Experion® Process Knowledge System (PKS). It interfaces with 2-wire or self-powered transmitters, converting analog signals into digital data for precise process monitoring and control.

General Information

• Part Number: 8C-PAINA1 51454470-175

• Manufacturer: Honeywell

• Country of Origin: USA


• Series: Series 8 Experion PKS

• Module Type: Analog Input Module

• Input Channels: 16 single-ended analog inputs

• Mounting: Rack-mounted in Series 8 I/O chassis

Input Specifications

• Input Type: Current (2-wire or self-powered transmitters)

• Input Range:

• 4–20 mA (through 250 Ω)

• 0–20 mA

• -10 to +10 mA

• A/D Converter Resolution: 16 bits

• Accuracy: ±0.1% of span

• Common Mode Rejection Ratio: 70 dB at 60 Hz

• Normal Mode Rejection Ratio: 19 dB at 60 Hz

• Filter Response: Single-pole RC, -3 dB at 6.5 Hz

Power and Environmental

• Supply Voltage: 24 V DC

• Module Current Rating: 105 mA

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for installation inside an industrial cabinet)

Communication and Diagnostics

• Communication Protocol: HART (Highway Addressable Remote Transducer)

• Diagnostics: LED indicators for power, communication, and channel status

• Isolation: Galvanic isolation between channels and ground

Dimensions and Weight

• Dimensions (L × W × H): 120  × 100  × 25 mm

• Weight: Approximately 0.5 kg

Authentic factory-new products in stock, ready for fast and reliable delivery.
