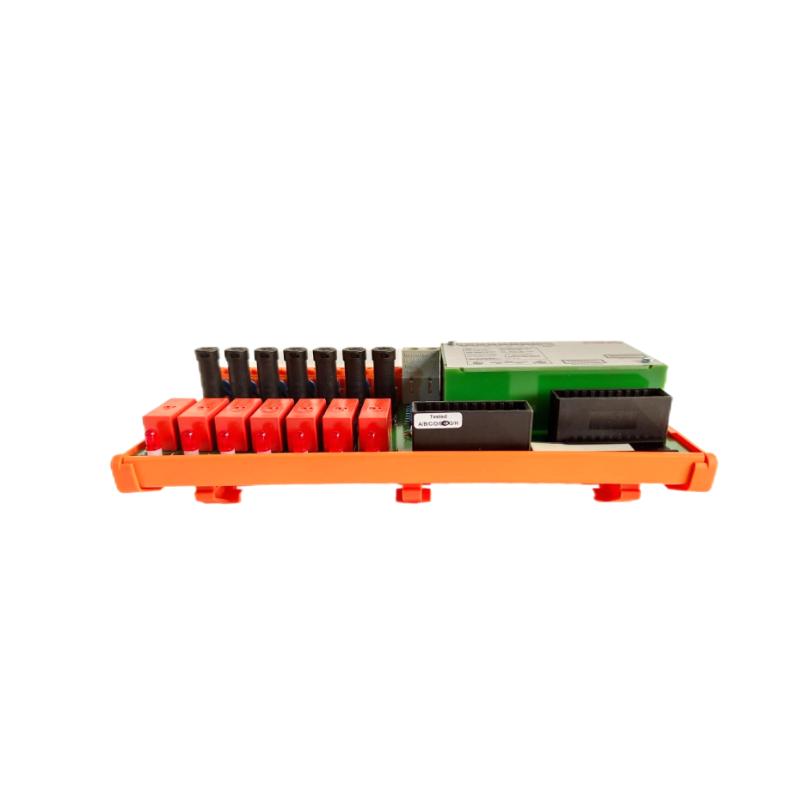

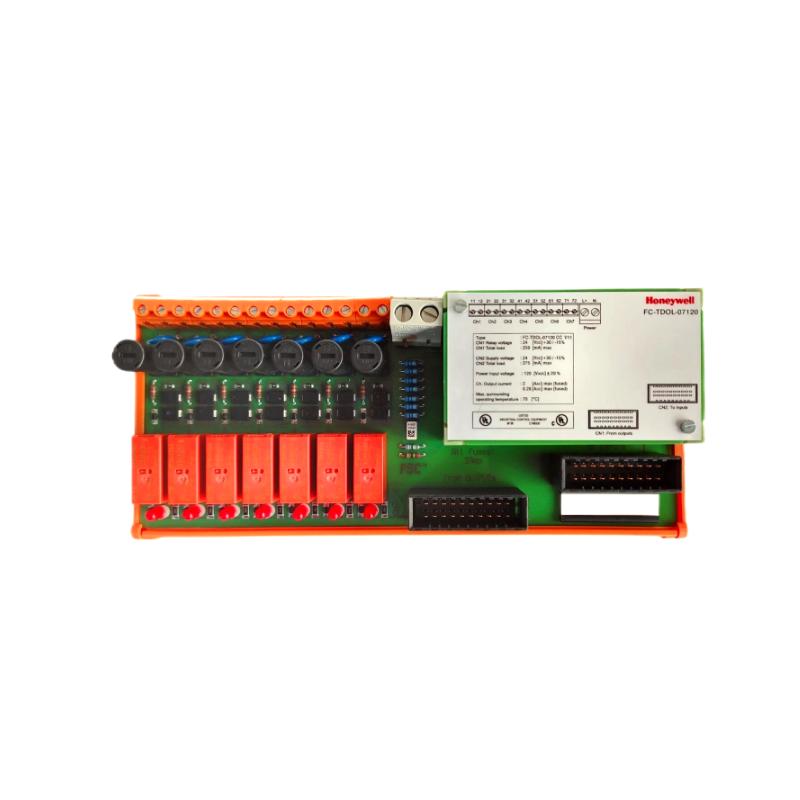

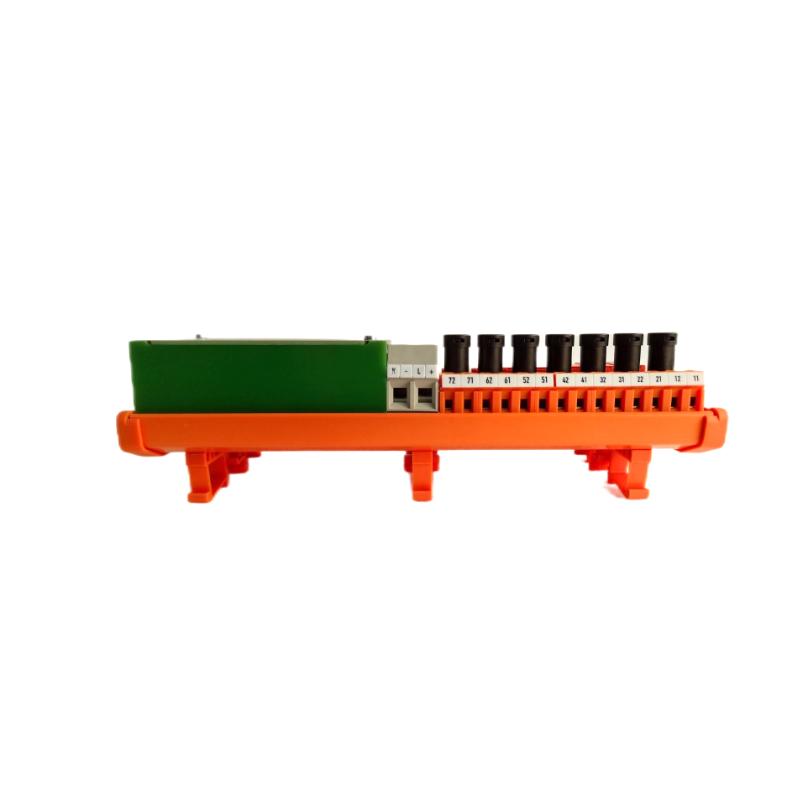

The Honeywell FS‑TDOL‑07120 is a 7‑channel digital output field termination assembly designed for loop‑monitored outputs operating at 120 V AC or 120 V DC. It serves as an interface between safe logic output modules and field loads, offering fault detection, load monitoring, and secure control in safety instrumented systems.

General Information
Brand: Honeywell
Country of Origin: United States
Model: FS‑TDOL‑07120
Series: Safety Manager I/O Modules
Product Type: Loop‑Monitored Digital Output FTA (Field Termination Assembly)
Application: Safety instrumented systems (SIS), industrial control, field device output interface for loads requiring 120 V

Power Specifications
Output Supply Voltage: 120 V AC or 120 V DC nominal (±20%)
Number of Channels: 7 fused relay contact outputs
Maximum Load per Channel: Up to approx. 240 VA (AC) or 150 W (DC)
Max Current per Channel: Up to approx. 2 A
Protection Features: Channel fuse protection, line‑monitoring, loop fault detection

Communication & Interface
Channel Type: Digital relay outputs with loop‑monitoring per output channel
Interface: Connects to safe digital output module (e.g., SDO‑0824) and monitors wiring to field device loads
Diagnostics: Line fault detection (open/short), LED indication per channel, integrated with safety logic for fault response

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Mounted in indoor control cabinet; designed for use in safety rated cabinets and industrial automation environments

Dimensions & Weight
Dimensions (L × W × H): 240 × 109 × 71 mm
Weight: Approx. 1.0 kg
