Overview

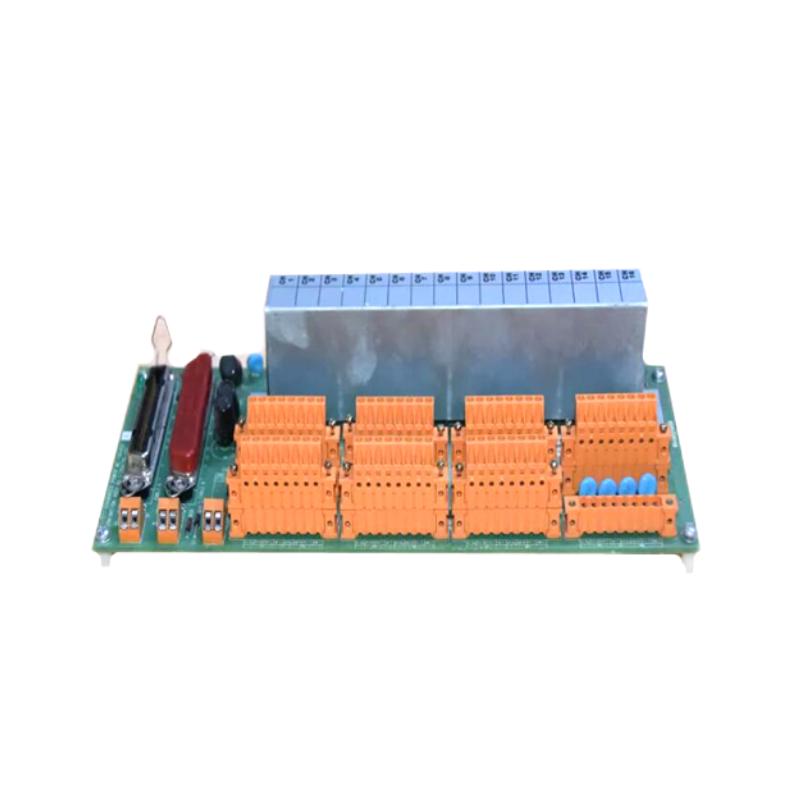

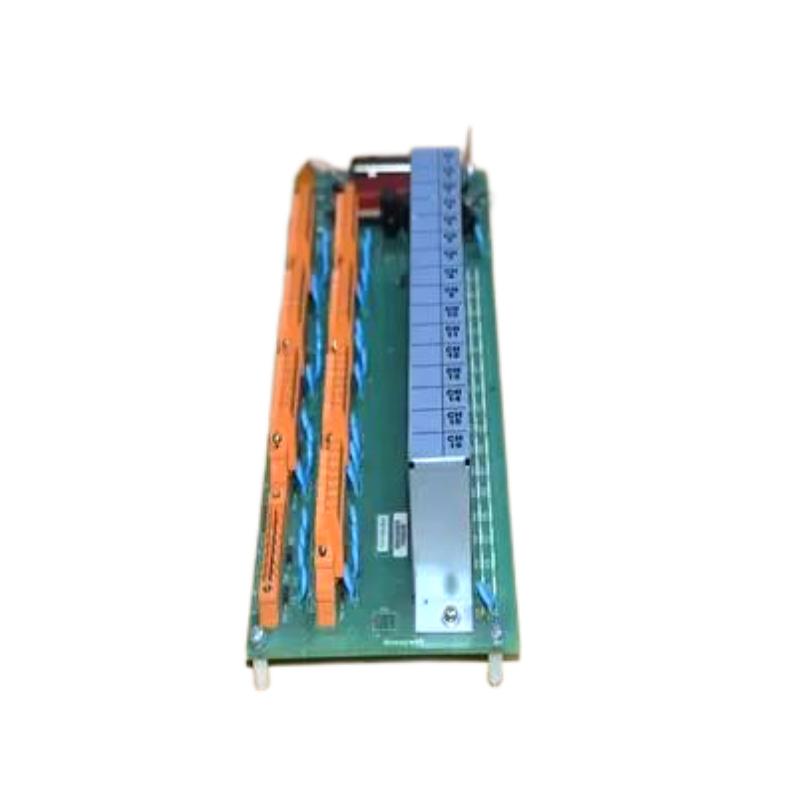

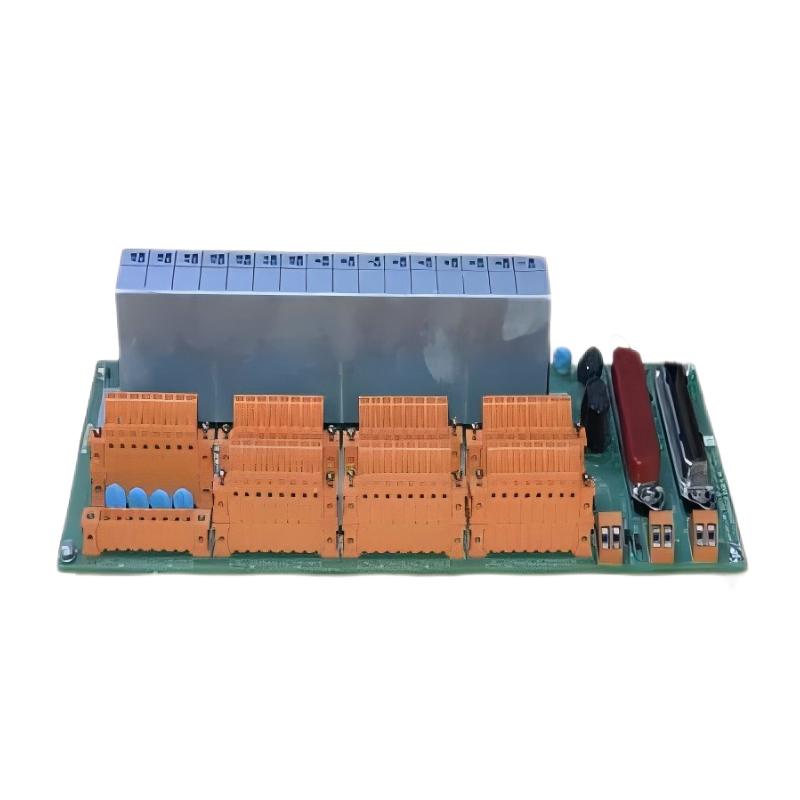

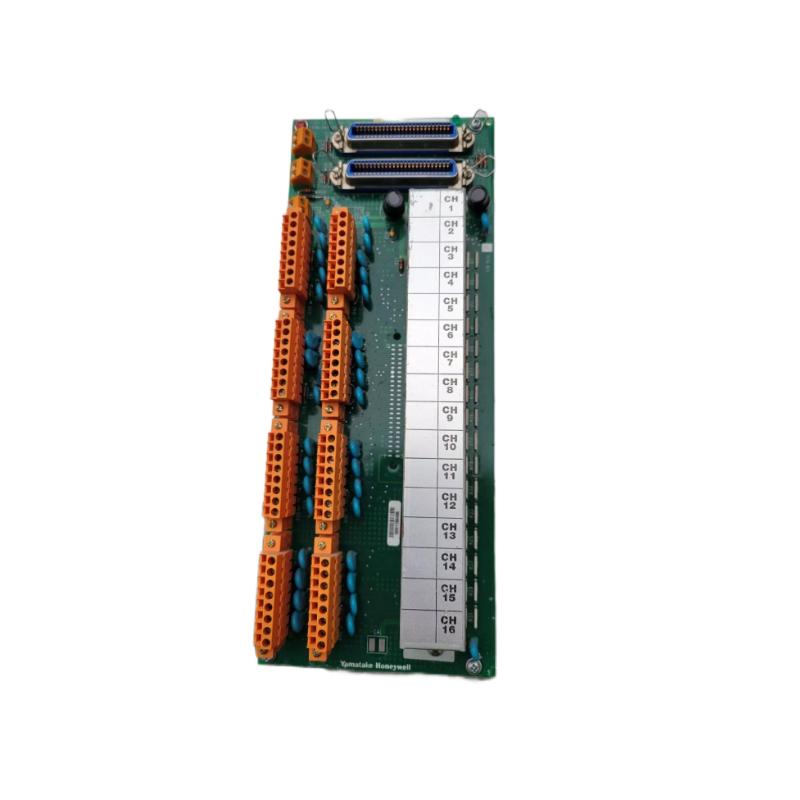

The Honeywell MC‑TAIH22 (51204170‑150) is a high-level analog input field termination assembly (FTA) designed for industrial process control systems. It manages 16 analog input channels and ensures accurate and reliable signal transmission from field devices to the control system.
General Information
Brand: Honeywell
Country of Origin: United States
Model Number: MC‑TAIH22 / 51204170‑150
Product Type: High-Level Analog Input FTA
Application: Industrial automation, process monitoring, and control signal acquisition
Power Specifications
Supply Voltage: 24 V DC nominal
Input Channels: 16 independent analog inputs
Input Signal Range: 0–10 V DC or 0–20 mA (depending on system configuration)
Communication & Interface
Interface Type: Field wiring termination with connection to Honeywell DCS backplane
Connectivity: Routes analog signals to I/O processor modules for digital conversion
Diagnostics: Supports channel monitoring, wiring fault detection, and signal verification
Environmental
Operating Temperature: −20 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation: Panel or rack mounted within industrial automation cabinet
Dimensions & Weight
Dimensions (L × W × H): Approx. 305 × 107 × 50 mm
Weight: Approx. 0.80 kg
