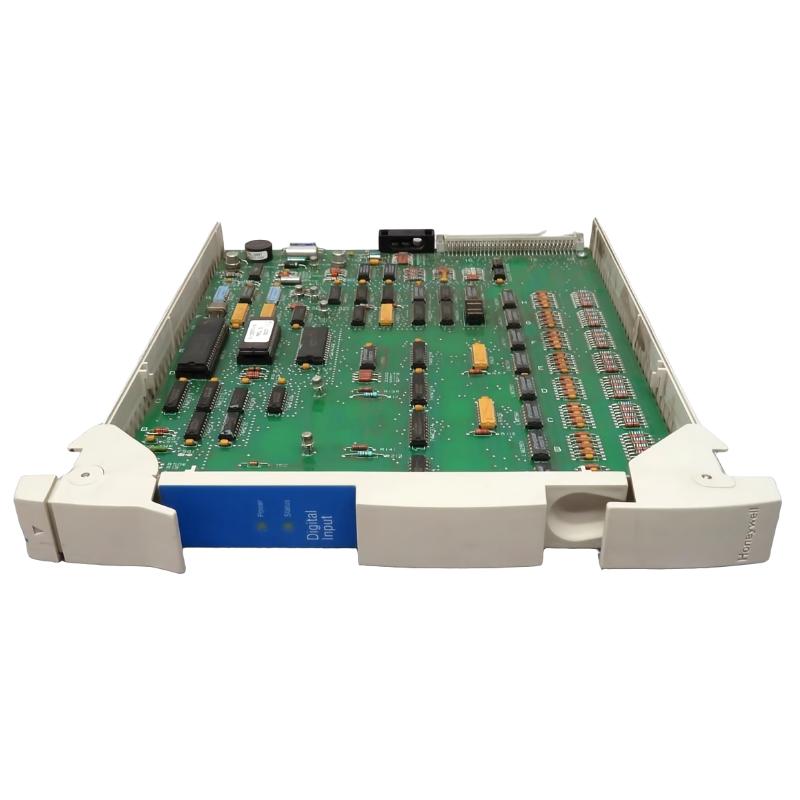

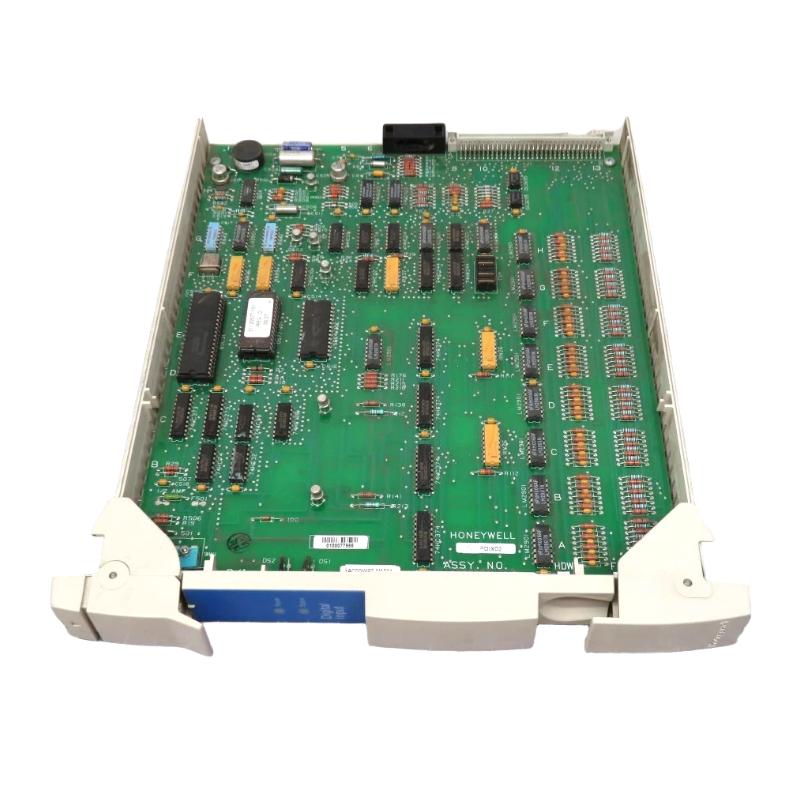

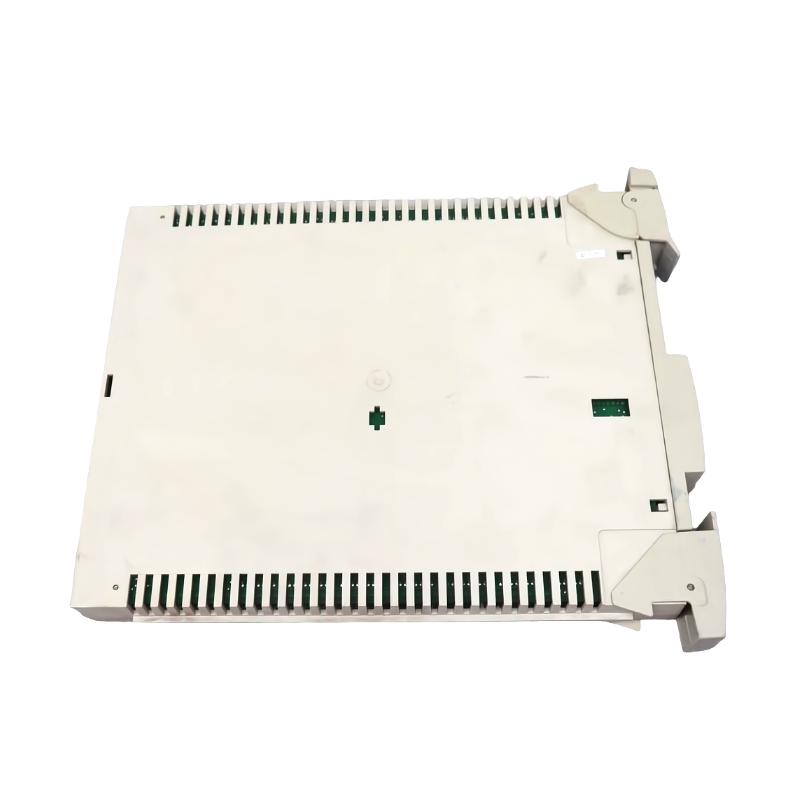

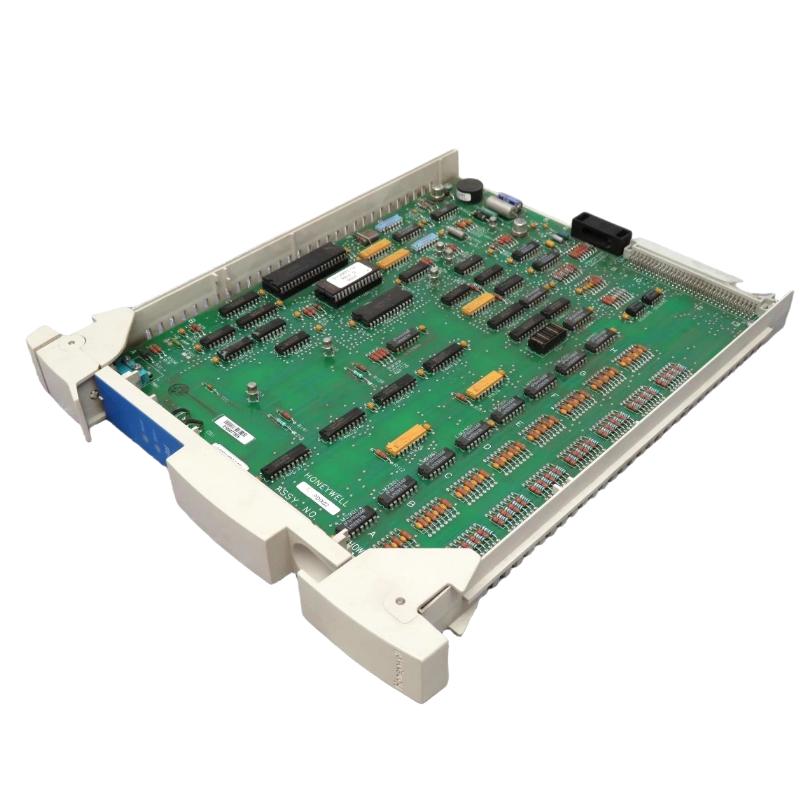

Honeywell MU‑PDIX02 51304485‑100 | Digital Input Processor Module Original

Overview

The MU‑PDIX02 is a digital input processor module designed to handle 32 discrete input channels. It integrates into Honeywell DCS systems, offering robust signal processing for industrial automation.

General Information

Part Number: 51304485‑100
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Type: Digital Input Processor Module
Function: Processes up to 32 discrete digital inputs, suitable for contact or logic‑level interfaces in control systems

Power Specifications

Input Channels: 32 discrete digital inputs
Input Range: 20–30 VDC (when using 24 VDC FTA), 90–132 VAC (120 VAC FTA), or 180–264 VAC (240 VAC FTA)
Protection & Diagnostics: Built‑in fault detection and status monitoring per channel

Communication & Interface

Interface Type: Rack backplane connection compatible with Honeywell UCN/Experion I/O architecture
Channels: 32 discrete inputs share a common isolated return
Diagnostics: Reports channel faults and module health via system diagnostics

Environmental

Operating Temperature Range: −40 °C to +70 °C
Humidity: Up to 95 % RH, non‑condensing
Protection Rating: IP20 (when installed in enclosure)
Cooling: Passive through natural convection

Dimensions & Weight

Dimensions (L × W × H): 130 x 35 x 110 mm
Weight: Approx. 3.0 kg

Brand-new original units, available immediately with full customer support access.
