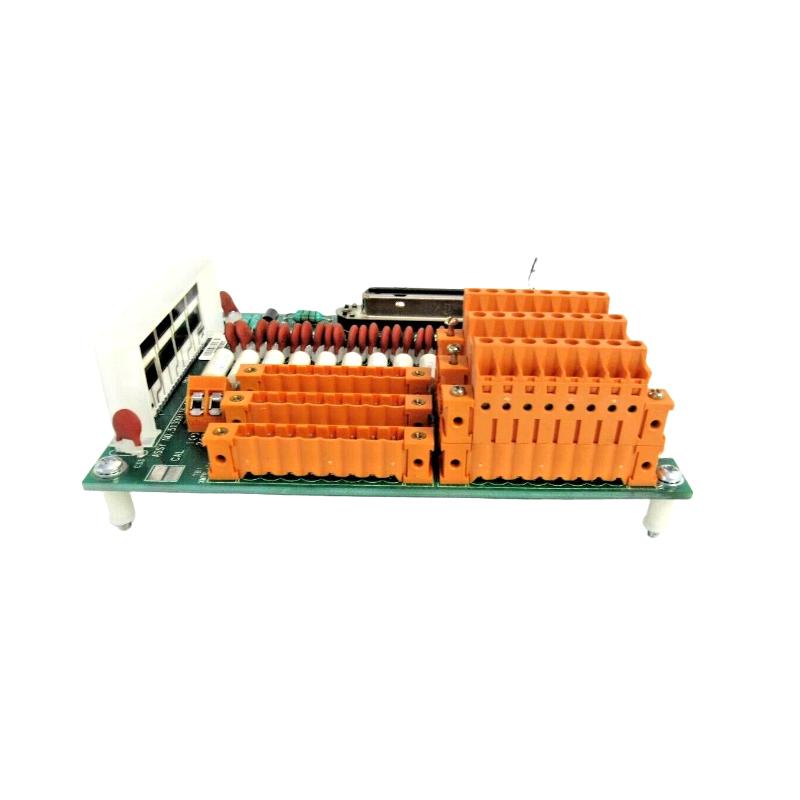

Honeywell MU‑TAIH03 51309136‑125 | High‑Level Analog Input 12-Month Warranty

Overview

The MU‑TAIH03 is a high‑level analog input processor module designed for industrial DCS systems. It accepts multiple analog signals (such as 0‑10 V, 4‑20 mA) and converts them into digital data for system monitoring and control.

General Information

Part Number: 51309136‑125
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Type: High‑Level Analog Input Processor Module
Function: Processes multiple analog input channels, provides fault detection and signal correctness diagnostics

Power Specifications

Supply Voltage: 24 V DC (via system backplane)
Input Signal Range: Supports a range of analog input types (e.g., 0‑10 V, 4‑20 mA)
Accuracy: Approximately ±0.1% of full scale under nominal conditions
Protection: Internal diagnostics and input protection include fault detection for open or shorted inputs

Communication & Interface

Interface Type: Backplane connection within Honeywell DCS I/O architecture
Input Channels: Multiple high‑level analog inputs (configurable)
Diagnostics: Module includes built‑in diagnostics for signal integrity and channel faults
Compatibility: Suitable for integration with Honeywell control systems supporting MU series I/O

Environmental

Operating Temperature: −20 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 (when installed in a control panel enclosure)
Cooling: Passive, natural convection

Dimensions & Weight

Dimensions (L × W × H): Approximate 26 × 242 × 175 mm
Weight: Approx. 0.20 kg
