Overview

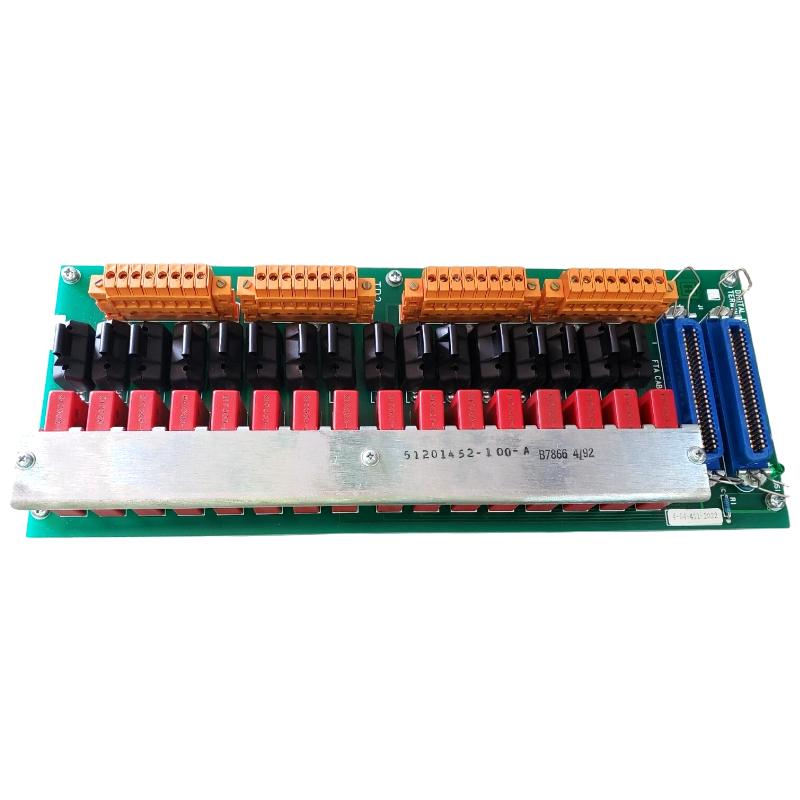

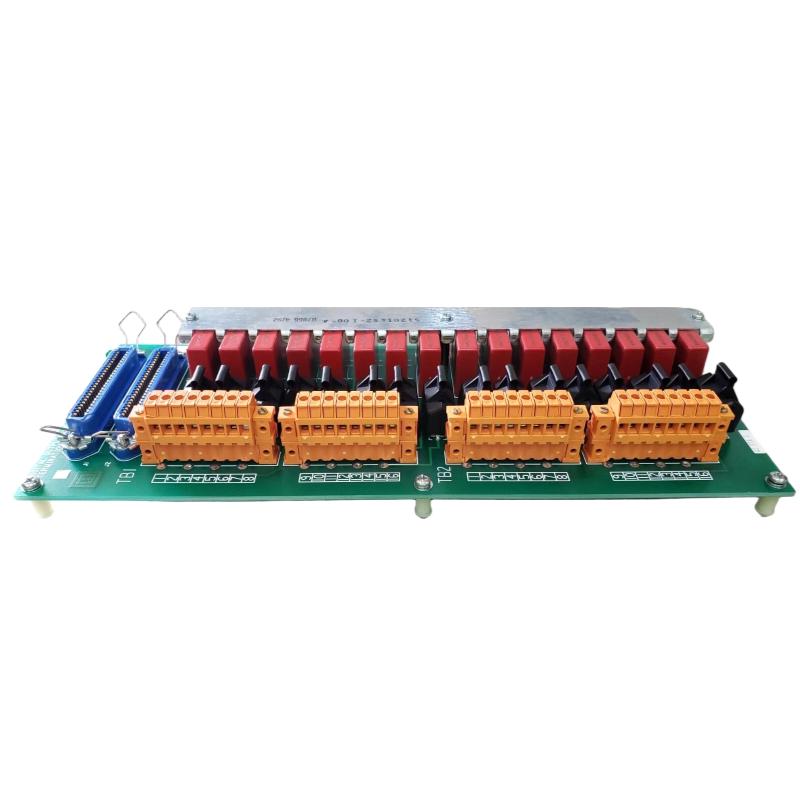

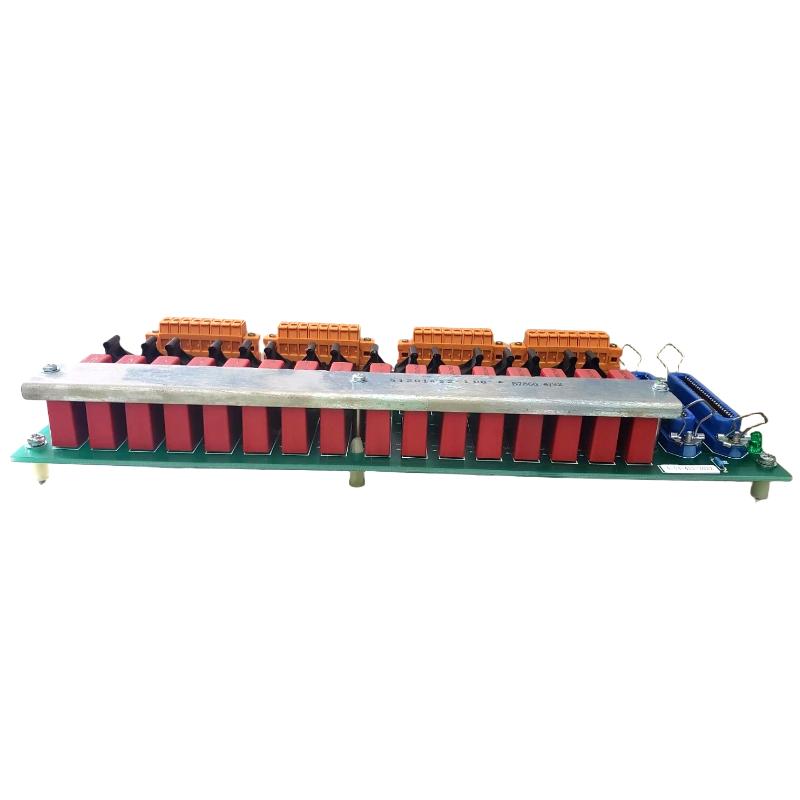

The Honeywell MU‑TDO D12 51304423‑100 is a robust digital output module designed for industrial control systems. It enables reliable signal switching of discrete outputs with integrated diagnostics for safe and efficient operation.
General Information
Part Number: 51304423‑100
Brand / Country of Origin: Honeywell / USA
Product Type: Digital Output Module
Application: Discrete signal control within Honeywell DCS/PLC systems
Power Specifications
Supply Voltage: 24 V DC (nominal)
Output Channels: 16 solid‑state digital outputs
Protection Features: Short‑circuit and open‑circuit detection, per‑channel status indication
Communication & Interface
Interface Type: Backplane I/O rack connection
Signal Connections: Output wiring terminals compatible with field devices such as valves or relays
Diagnostics: LED indicators for channel status and module health; compatible with Honeywell Fault‑Tolerant Architecture (FTA) systems
Environmental
Operating Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed inside enclosed cabinet
Dimensions & Weight
Dimensions (L × W × H): Approx. 158 × 47 × 108 mm
Weight: Approx. 0.20 kg
