Overview

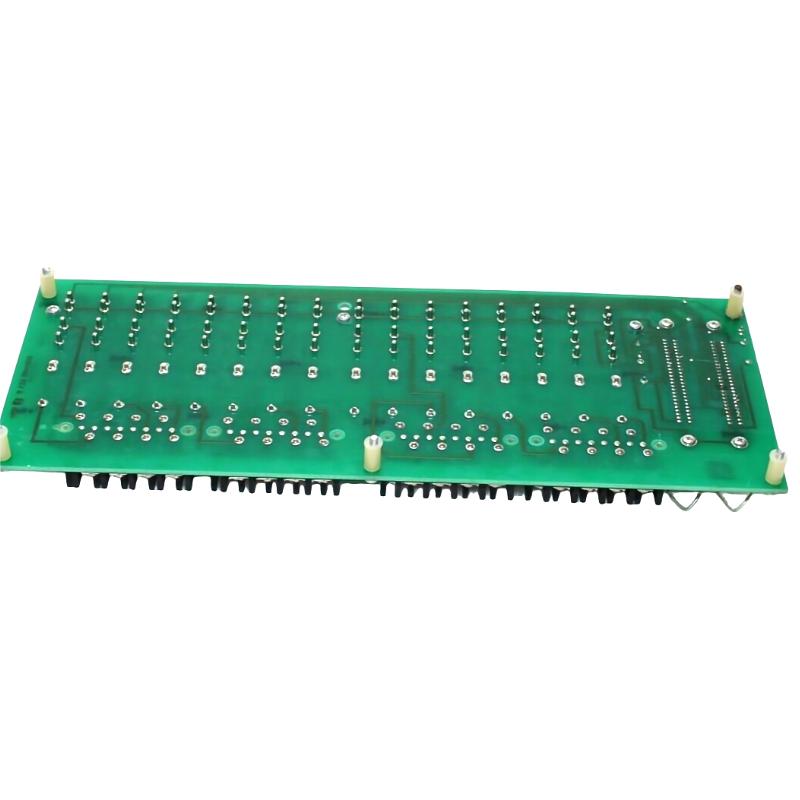

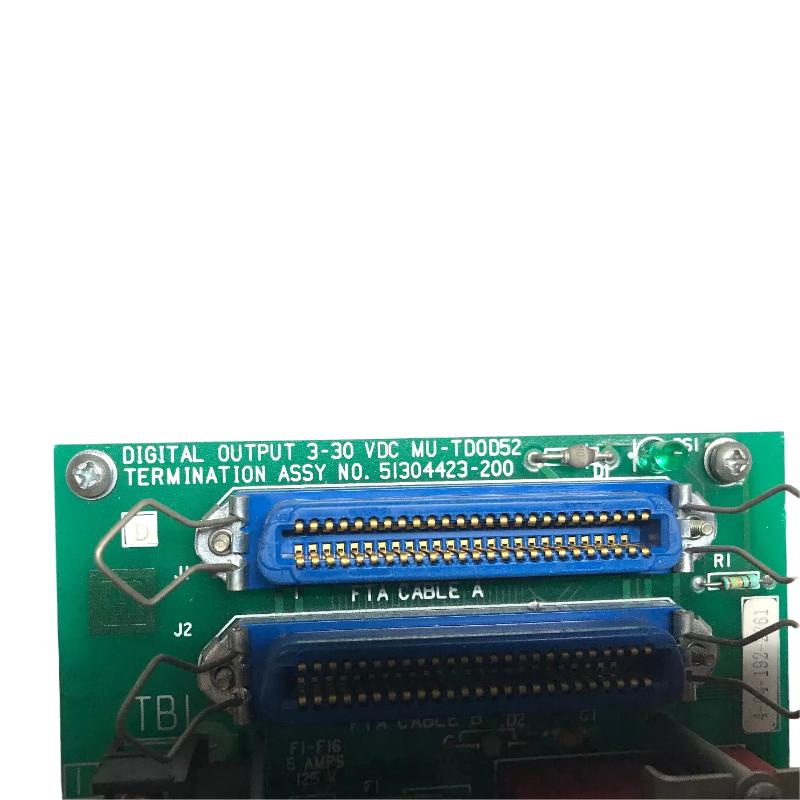

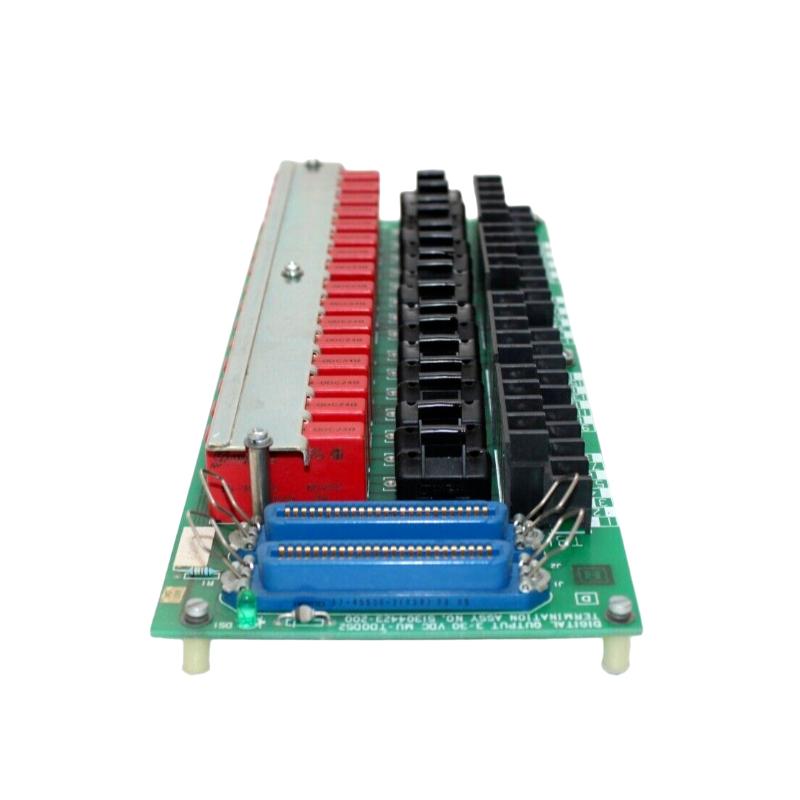

The Honeywell MU‑TDOD52 51304423‑200 is a digital output module designed for industrial control systems. It offers multiple high‑capacity solid‑state output channels and robust diagnostics to support reliable automation operations.
General Information
Part Number: 51304423‑200
Brand / Country of Origin: Honeywell / USA
Product Type: Digital Output Module
Application: Controls discrete field devices such as actuators, solenoids, and valves in process control environments
Power Specifications
Supply Voltage: 24 V DC nominal
Output Channels: 16 channels (solid‑state)
Output Switching Capacity: Up to 2 A per channel (typical)
Protection Features: Short‑circuit and open‑circuit detection per output channel
Communication & Interface
Interface Type: Rack‑mounted backplane connection (Honeywell I/O system)
Signal Connections: Field‑wiring terminals for each output channel
Diagnostics: Channel‑level status indication and module health feedback to host system
Environmental
Operating Temperature: −40 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when mounted within suitable enclosure
Dimensions & Weight
Dimensions (L × W × H): Approx. 120 × 80 × 50 mm
Weight: Approx. 1.0 kg
