Honeywell 8C-PDOD51 51454361-175 Digital Output Module Quality Selection

Overview

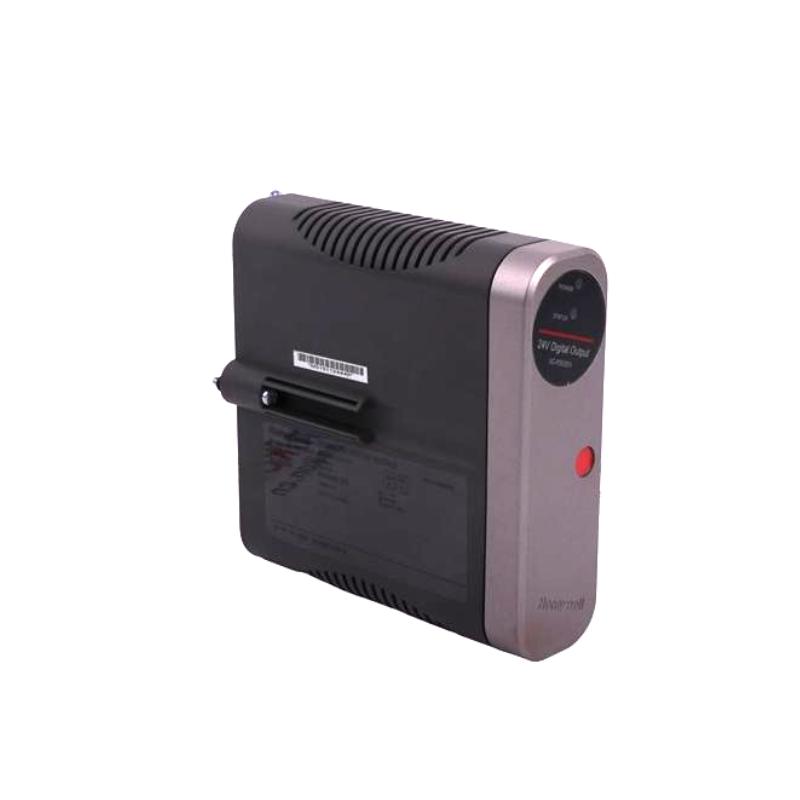

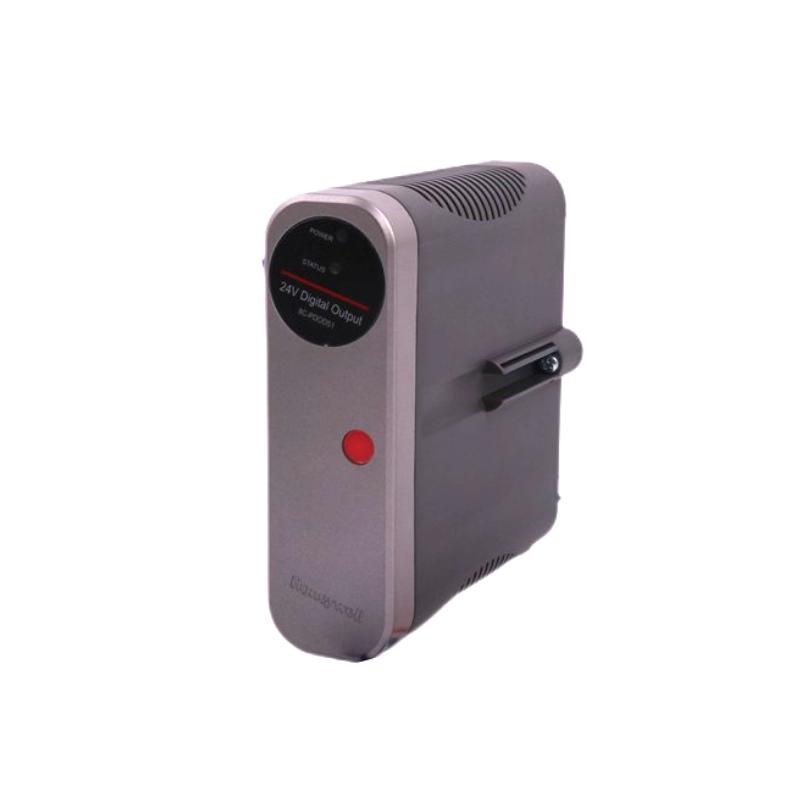

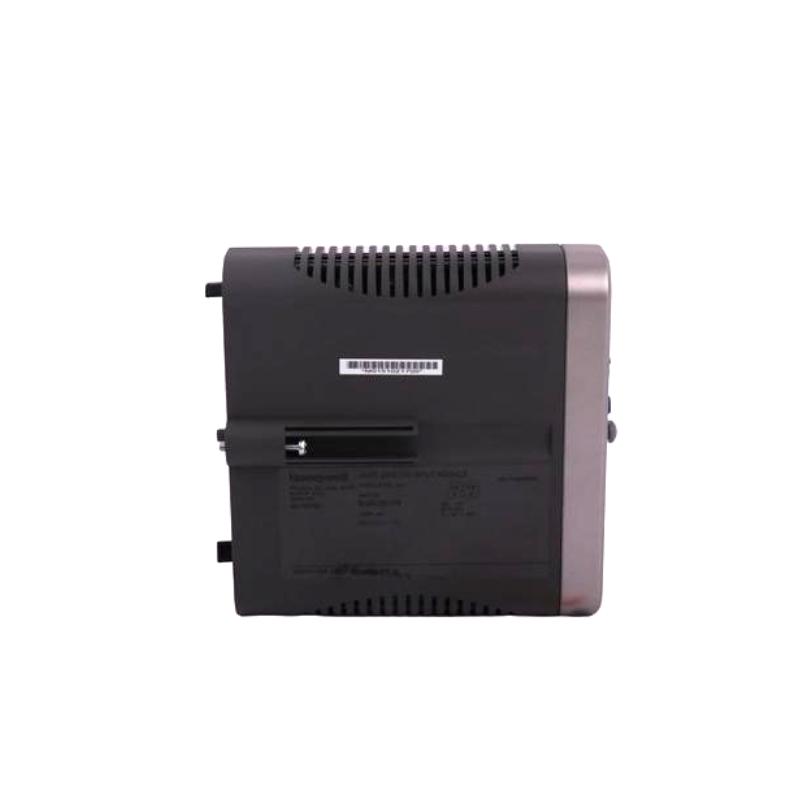

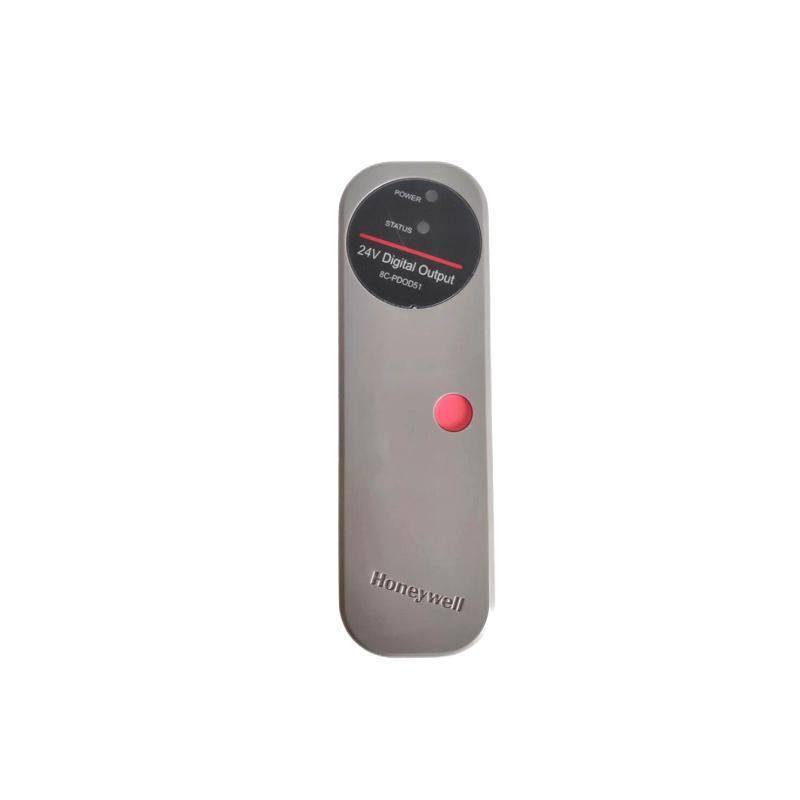

The Honeywell 8C-PDOD51 51454361-175 is a digital output module designed for the Experion PKS and C300 control systems. It provides reliable control of external field devices such as relays, solenoids, and indicator lamps by converting controller commands into discrete output signals, ensuring fast and accurate process actuation.

General Information

• Part Number: 51454361-175

• Manufacturer: Honeywell

• Product Model: 8C-PDOD51

• Series: Experion PKS / C300 Series

• Module Type: Digital Output Module

• Country of Origin: United States

• Mounting: Plug-in type for C300 system chassis

Power Specifications

• Supply Voltage: 24 V DC nominal (via backplane connection)

• Power Consumption: ≤ 8 W

• Output Power Source: Controller backplane or external 24 V DC supply

• Protection: Built-in surge, overload, and reverse-polarity protection

• Indicators: LED indicators for power, output channel status, and fault

Communication & Interface

• Communication Protocol: FIM / Fieldbus interface within C300 system

• Output Type: Digital (discrete) outputs

• Channels: 32 independently controlled output channels

• Output Voltage Range: 18–32 V DC

• Diagnostics: Output monitoring, short-circuit detection, and fault reporting

• Configuration: Performed via Honeywell Control Builder software

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for use in protected control enclosures)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112.5 mm

• Weight: ~0.3 kg

All our stock items are new, authentic, and supported by around-the-clock customer care.
