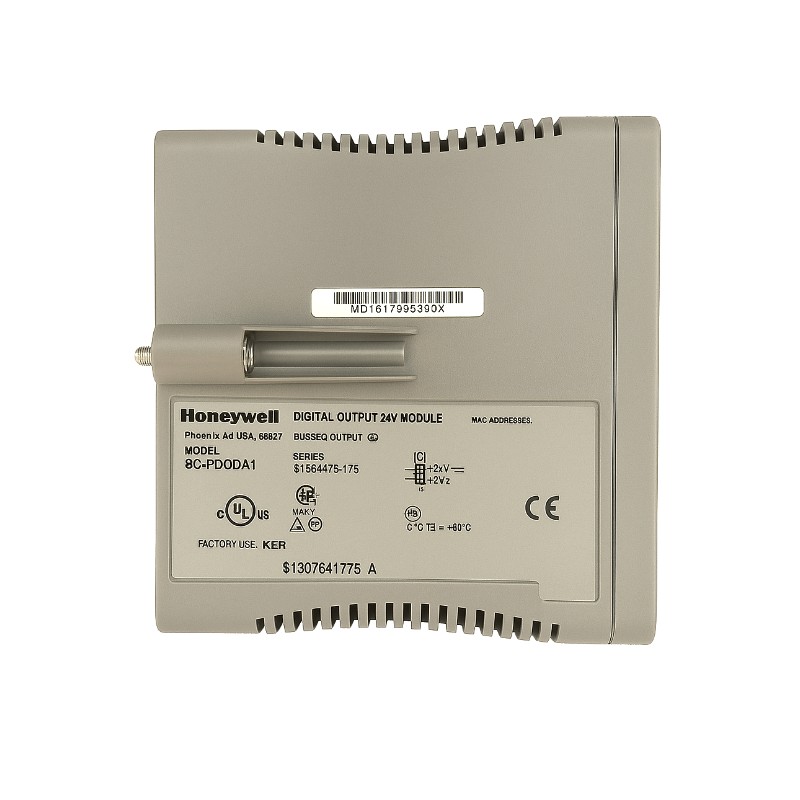

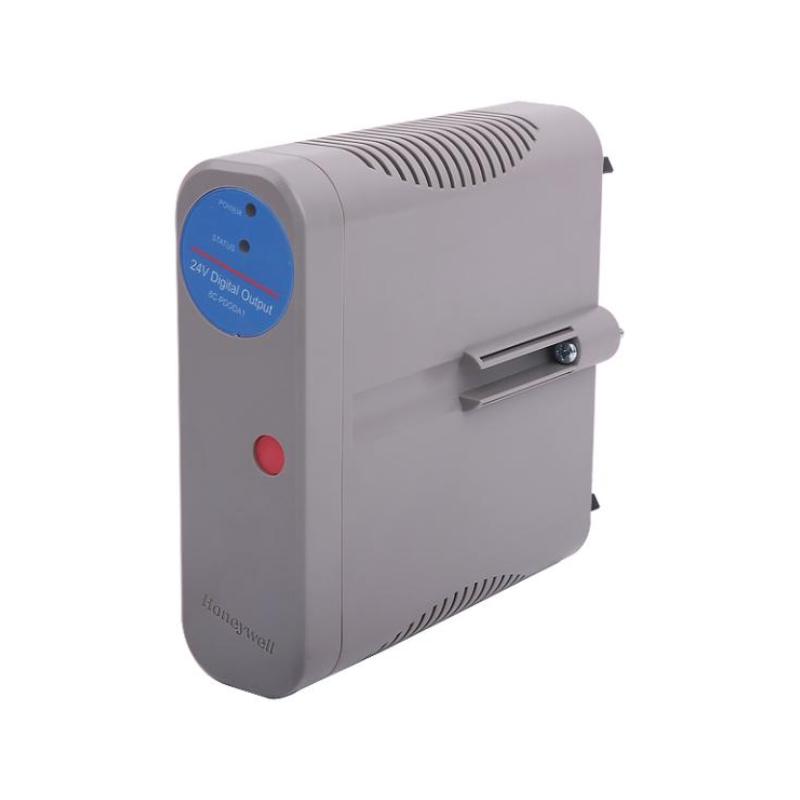

Honeywell 8C-PDODA1 51454472-175 Digital Output Module Rave reviews

Overview

The Honeywell 8C-PDODA1 51454472-175 is a digital output module engineered for Honeywell’s Experion PKS and C300 controller systems. It delivers reliable control of discrete field devices such as relays, solenoids, and indicator lamps by converting logic-level commands from the controller into precise electrical outputs for field actuation.

General Information

• Part Number: 51454472-175

• Manufacturer: Honeywell

• Product Model: 8C-PDODA1

• Series: Experion PKS / C300 Series

• Module Type: Digital Output Module

• Country of Origin: United States

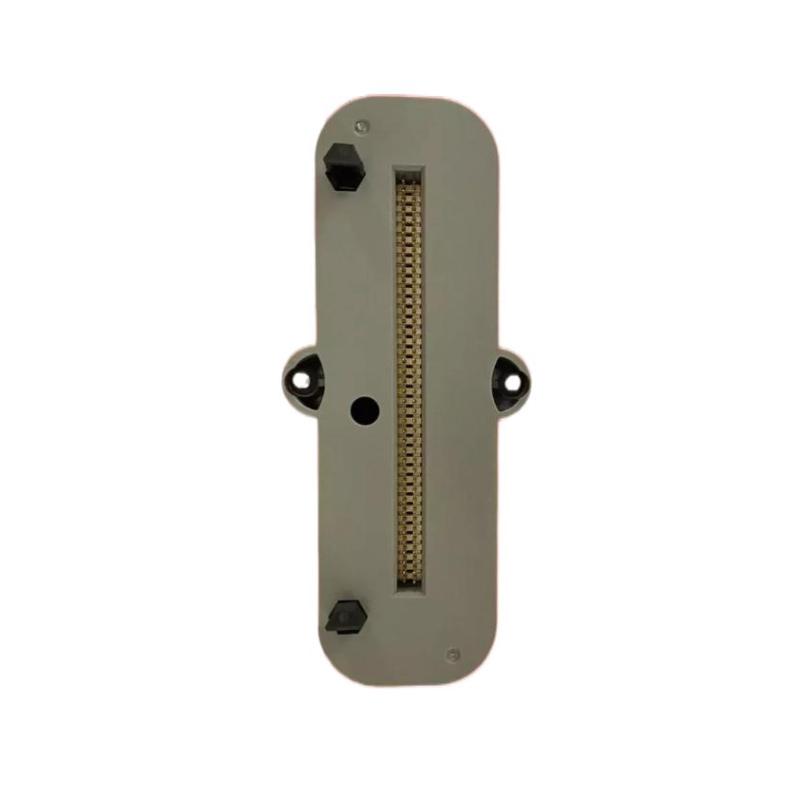

• Mounting: Plug-in module for C300 chassis backplane

Power Specifications

• Supply Voltage: 24 V DC nominal (via system backplane)

• Power Consumption: ≤ 8 W

• Output Power Source: System backplane or external 24 V DC source

• Protection: Short-circuit, surge, and reverse-polarity protection

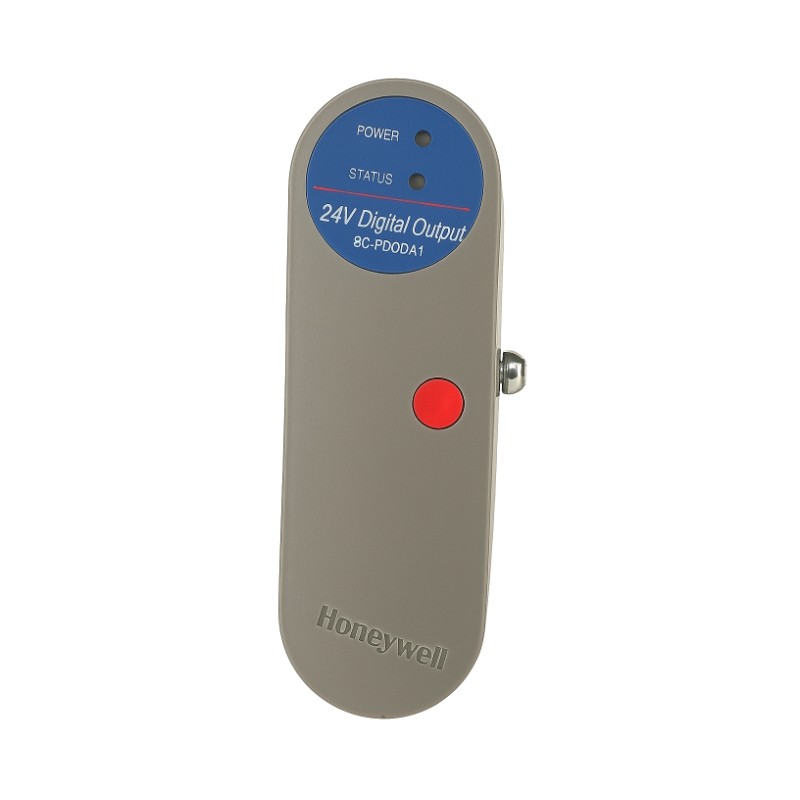

• Indicators: LED indicators for power, channel output, and fault status

Communication & Interface

• Communication Protocol: FIM / Fieldbus interface within Experion PKS

• Output Type: Digital (discrete) output

• Channels: 32 independently controlled output channels

• Output Voltage Range: 18–32 V DC

• Diagnostics: Output monitoring, fault detection, and channel status reporting

• Configuration: Managed through Honeywell Control Builder software

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (intended for installation within control cabinets)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112.5 mm

• Weight: ~0.3 kg

 We offer factory-sealed new products, available in stock, with professional assistance around the clock.
