Overview

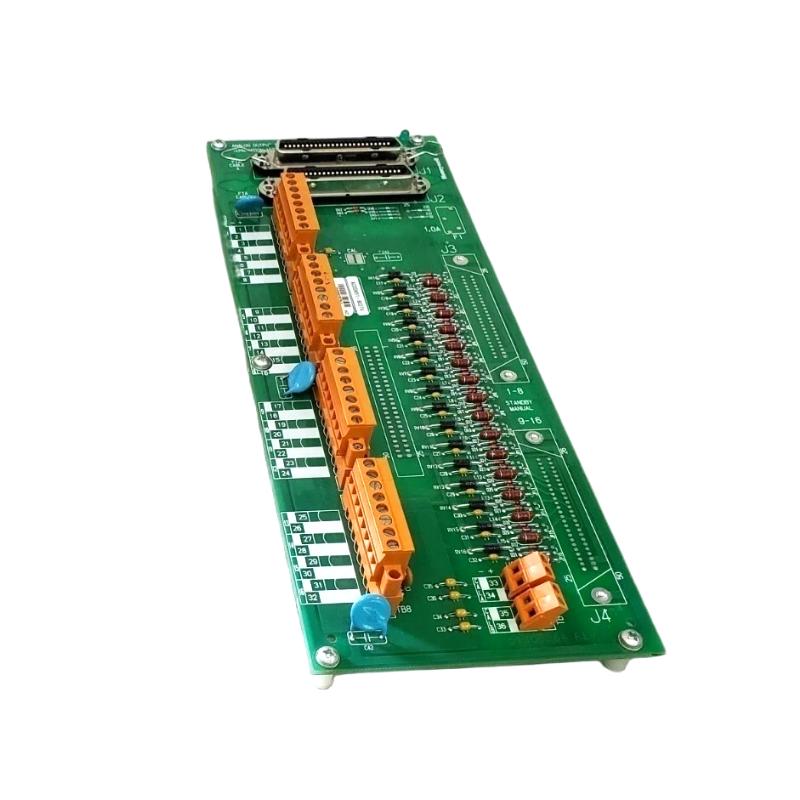

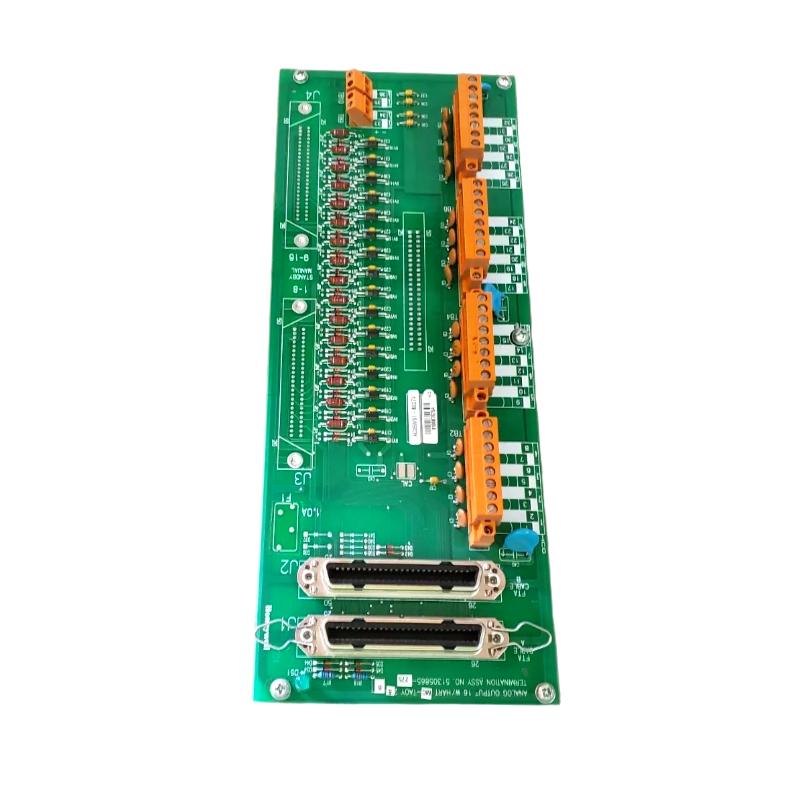

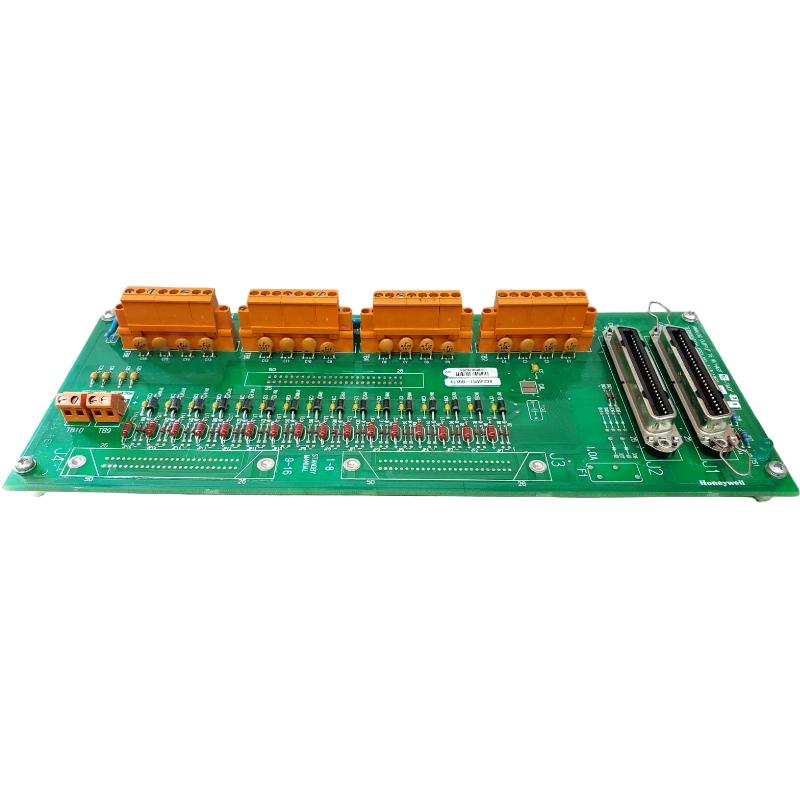

The Honeywell MC-TAOY25 (part number 51305865-275) is an analog output module used in Honeywell distributed control systems. It provides multiple analog output channels for precise signal control of actuators, valves, and other process equipment.
General Information
Brand: Honeywell
Country of Origin: United States
Part Number: 51305865-275
Model: MC-TAOY25
Type: Analog Output Module
Function: Converts digital control signals into analog outputs for field devices
System Compatibility: Honeywell TDC 3000 / Experion Series
Power Specifications
Supply Voltage: 24 V DC nominal (18–32 V DC range)
Power Consumption: ≤ 10 W
Output Channels: 16 analog outputs
Output Range: 0–20 mA / 4–20 mA / 0–10 V configurable
Accuracy: ±0.1% of full scale
Resolution: 16-bit digital to analog conversion
Communication & Interface
Communication Protocol: HART compatible
Connection Type: Field terminal assembly (FTA)
Isolation: Channel to channel and channel to system isolation
Diagnostics: Loop monitoring, channel fault reporting, self-test function
Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Installation Environment: Control cabinet or rack mount
Dimensions & Weight
Dimensions: Approx. 330 × 25 × 100 mm
Weight: Approx. 0.45 kg
