Overview

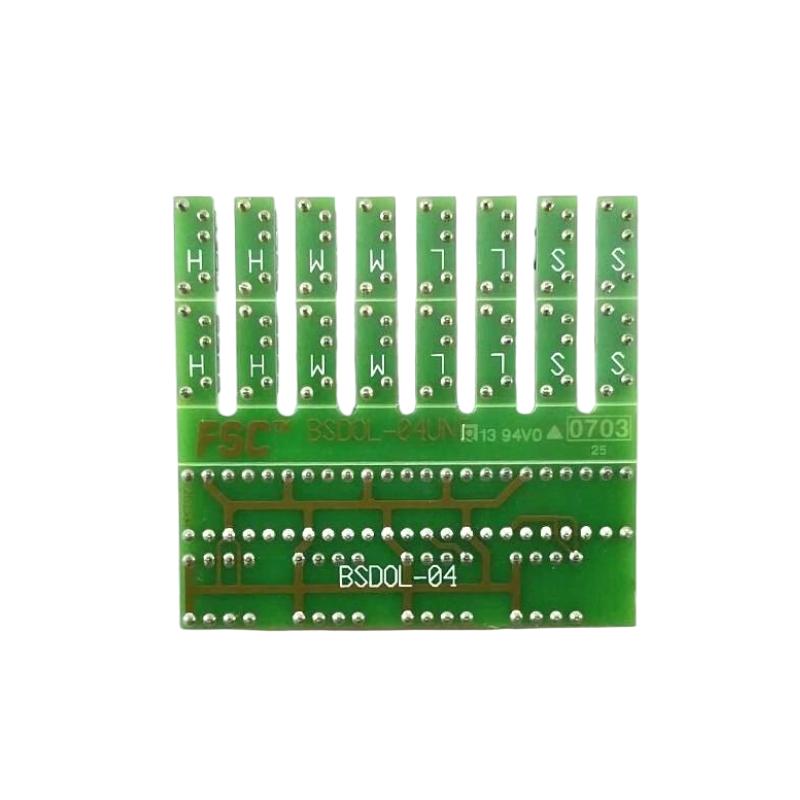

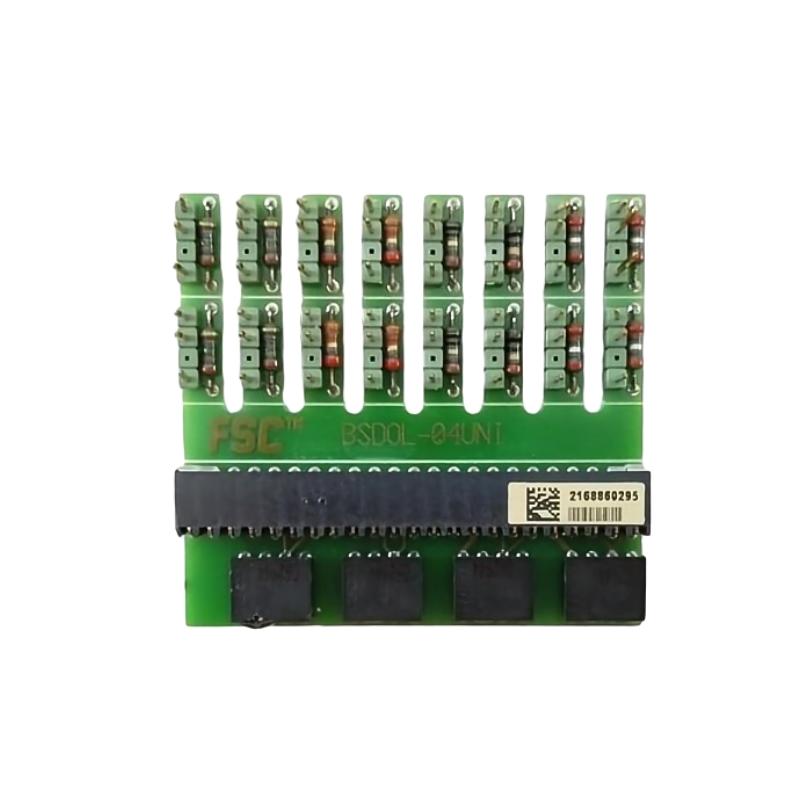

The Honeywell FS-BSDOL-04UNI is a four-channel range-setting module used with the Safety Manager IO system. It allows programming of current-sense levels per channel to ensure proper load monitoring and loop integrity.
General Information
Brand: Honeywell
Country of Origin: United States
Model: FS-BSDOL-04UNI
Type: Range-Setting Module
Function: Configures four channels with selectable current load ranges for system monitoring
Compatible System: SDOL series modules in Safety Manager architecture
Power Specifications
Number of Channels: 4
Load-Range Options: S: 4–16 mA, L: 17–47 mA, M: 48–199 mA, H: ≥200 mA
Additional Power: Minimal current draw from 24 V supply for S range, other ranges require no additional power
Communication & Interface
Interface Type: Plug-in module for IO backplane programming connector
Function: Sets current-sense thresholds for IO module channels to detect lead-break or short-circuit conditions
Environmental
Operating Temperature: Standard industrial ambient
Humidity: Non-condensing, suitable for control cabinet installation
Dimensions & Weight
Dimensions: 58.5 × 54.5 × 12.5 mm
Weight: 0.1 kg
