Overview

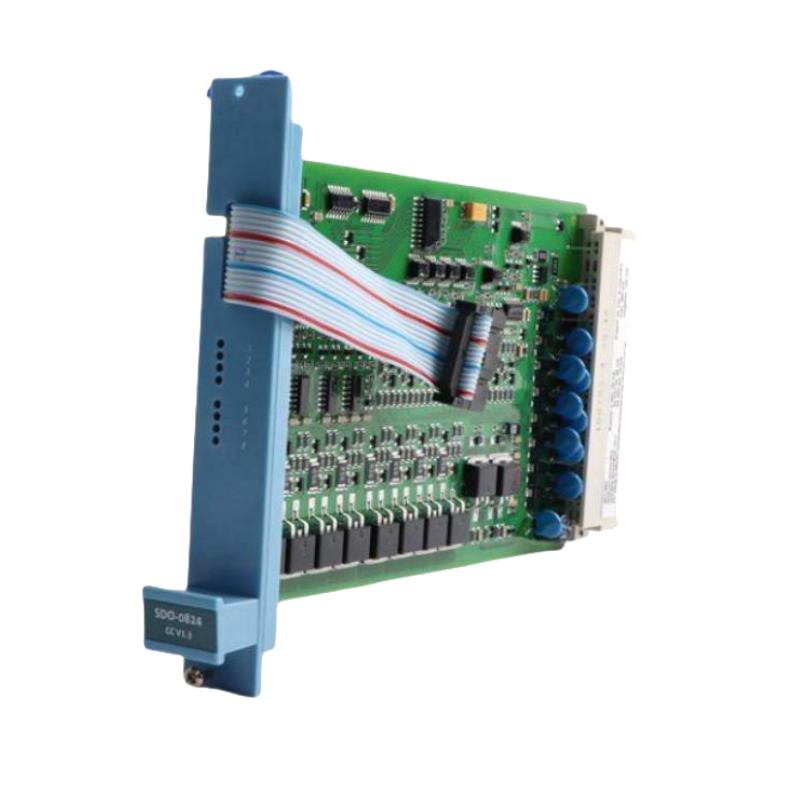

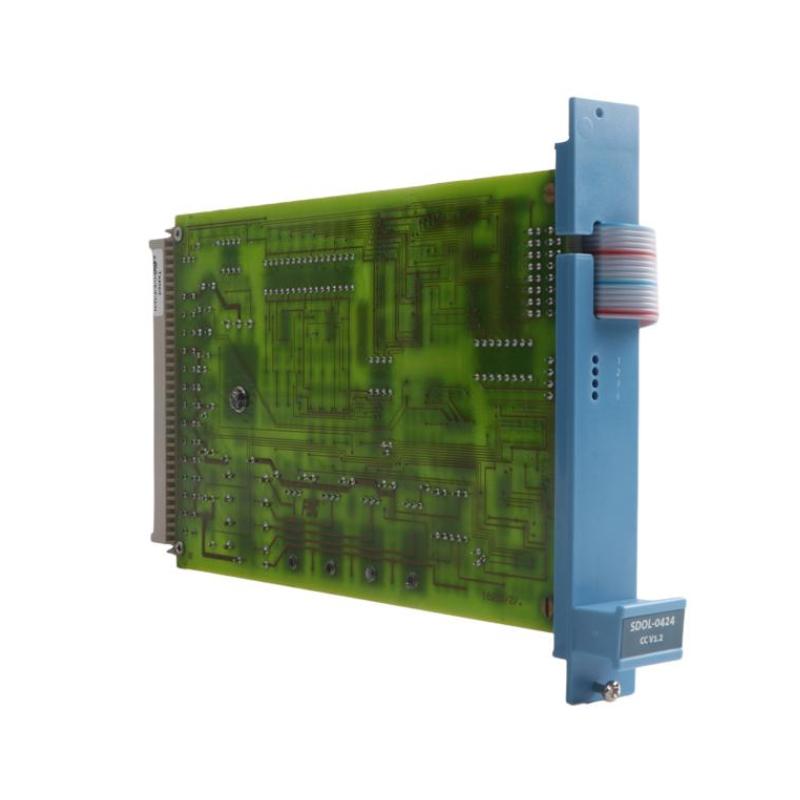

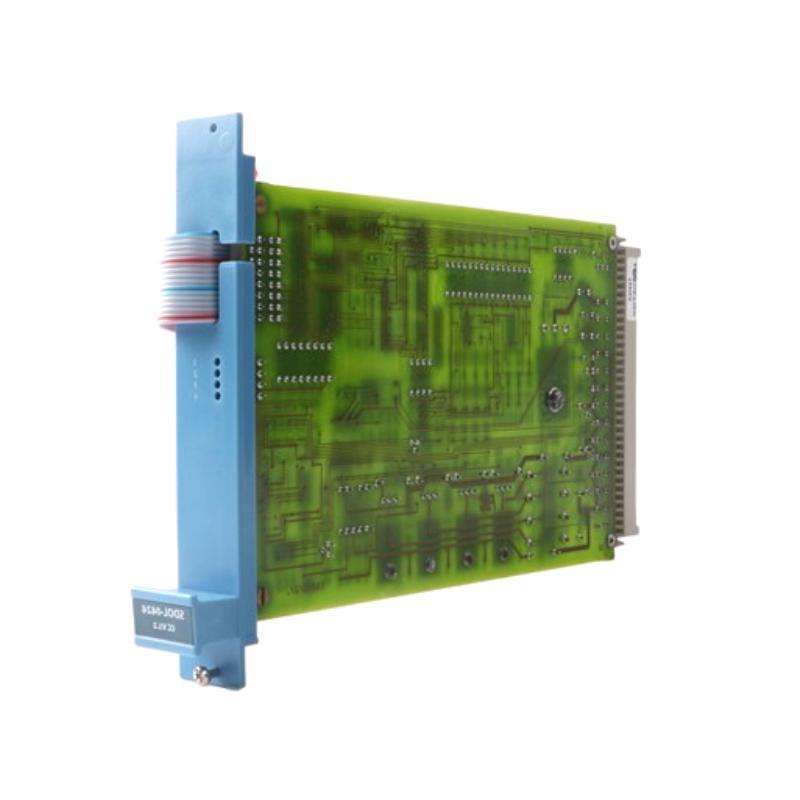

The Honeywell FC-SDO-0424 is a safety-rated digital output module designed for use in Honeywell’s Safety Manager / FC series safety systems. It provides multiple independent output channels for driving actuators or modules in high-integrity automation and safety instrumented systems.

General Information

• Model / Type: FC-SDO-0424

• Manufacturer: Honeywell

• Country of Origin: United States / Netherlands (various sources)

• Product Category: Safe Digital Output Module – 24 V DC typical output, 4 channels

• Application: Safety instrumented systems (SIS), redundant I/O racks, fail-safe digital outputs

Electrical & Functional Specifications

• Number of Output Channels: 4

• Output Voltage: 24 V DC solid-state source (each channel)

• Maximum Current per Channel: 2 A (typical)

• Maximum Total Module Load: 6 A (for all channels combined)

• Short-circuit Proof: Yes

• Voltage Drop at Max Current: < 1.3 V at 2 A (typical)

• Maximum Load Capacitance: 1 µF

• Onboard Suppression for Inductive Loads: Each output includes suppression diode for inductive load protection

• Logic Supply Requirements:

• 5 V DC logic supply (typical current ~15 mA)

• 24 V DC internal/external supply (no-load currents: internal ~35 mA; external ~50 mA)

• Diagnostic / Safety Features:

• Output monitoring (loop test)

• Cross-channel diagnostics

• Fail-safe de-energize of outputs when required

• Certifications / Approvals: CE, TUV, UL, CSA, FM (depending on system configuration)

Environmental Conditions

• Operating Temperature Range: –40 °C to +70 °C

• Storage Temperature Range: –40 °C to +85 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: Module suitable for internal cabinet use (nominal IP20)

• Mounting: Rack or chassis mounting within a Safety Manager I/O system; space requirement: 4 TE width, 3 HE height unit

Dimensions & Weight

• Dimension: ~ 196.9  × 149.4  × 74.4 mm

• Weight: ~ 0.38 kg
