Honeywell FC-SDO-1624 Safe Digital Output Module Recommended products

Overview

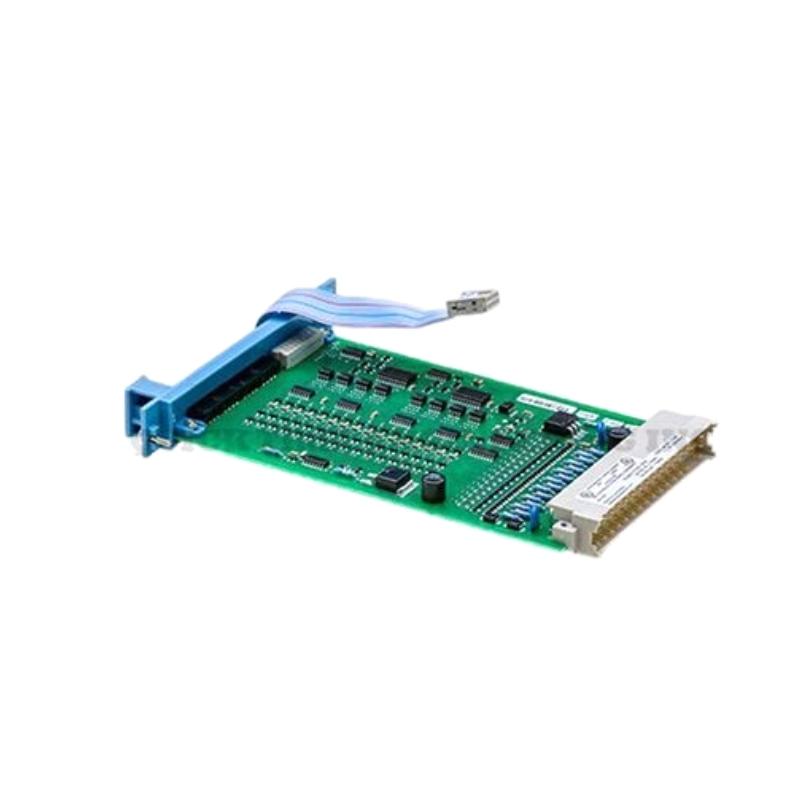

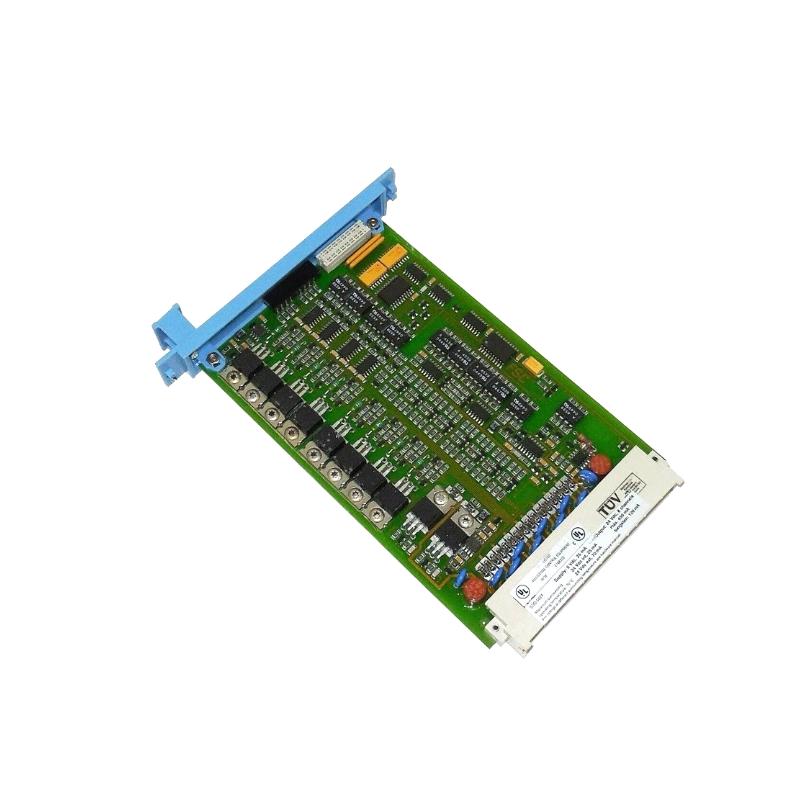

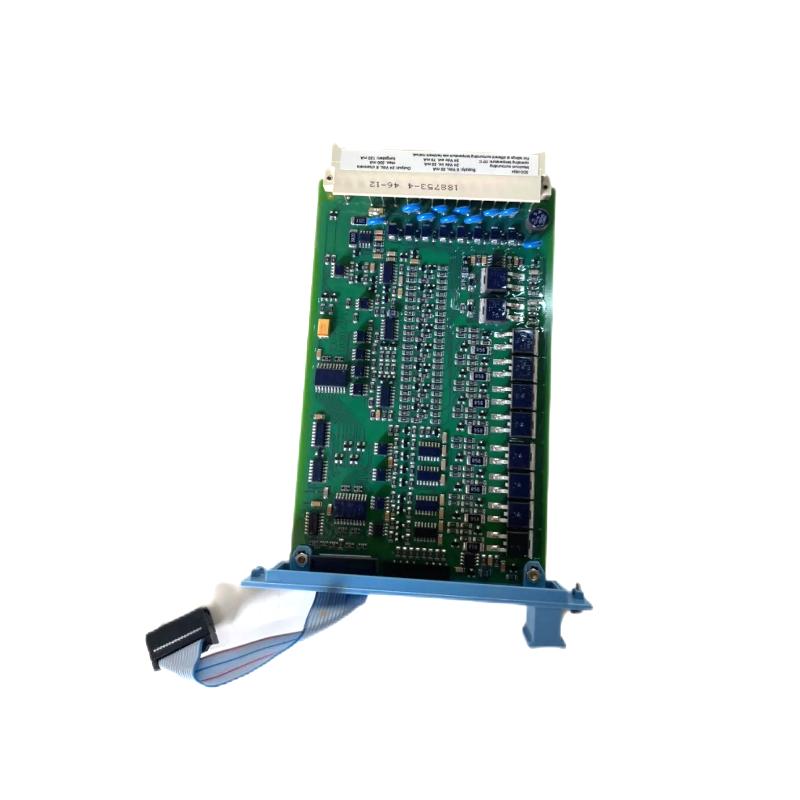

The Honeywell FC‑SDO‑1624 is a safety‑rated digital output module designed for use in Honeywell’s Safety Manager / FC‑series I/O systems. It provides 16 independent 24 V DC output channels with integrated safety diagnostics for high‑integrity automation and Safety Instrumented Systems (SIS).

General Information

• Model / Type: FC‑SDO‑1624

• Manufacturer: Honeywell

• Country of Origin: USA

• Product Category: Safe Digital Output Module – 16 channels, 24 V DC

• Application: Safety instrumented systems (SIS), redundant I/O racks, industrial automation

Electrical & Functional Specifications

• Number of Output Channels: 16

• Output Voltage: 24 V DC solid‑state source (per channel)

• Maximum Current per Channel: 0.55 A typical

• Load Capability: Supports resistive or inductive loads with built‑in suppression; max load capacitance 1 µF

• Voltage Drop at Max Current: < 2 V per channel

• Off‑Current (No Load): < 0.1 mA

• Power Supply Requirements:

• 5 V DC logic supply: ~25 mA

• 24 V DC internal: ~25 mA

• 24 V DC external: ~70 mA (no output load)

• Diagnostics / Safety Features:

• Channel‑level monitoring

• Cross‑channel diagnostics

• Fail‑safe de‑energize of outputs

• Certifications / Approvals: CE, TÜV, UL, CSA, FM

Environmental Conditions

• Operating Temperature Range: −20 °C to +60 °C

• Storage Temperature Range: −40 °C to +85 °C

• Humidity: Up to 95% RH, non‑condensing

• Protection Rating: IP20 (module designed for internal cabinet environment)

• Mounting: Rack or chassis mounting in Safety Manager I/O system

Dimensions & Weight

• Dimension: 196.9  × 149.4  × 74.4 mm

• Weight: ~0.38 kg
