Overview

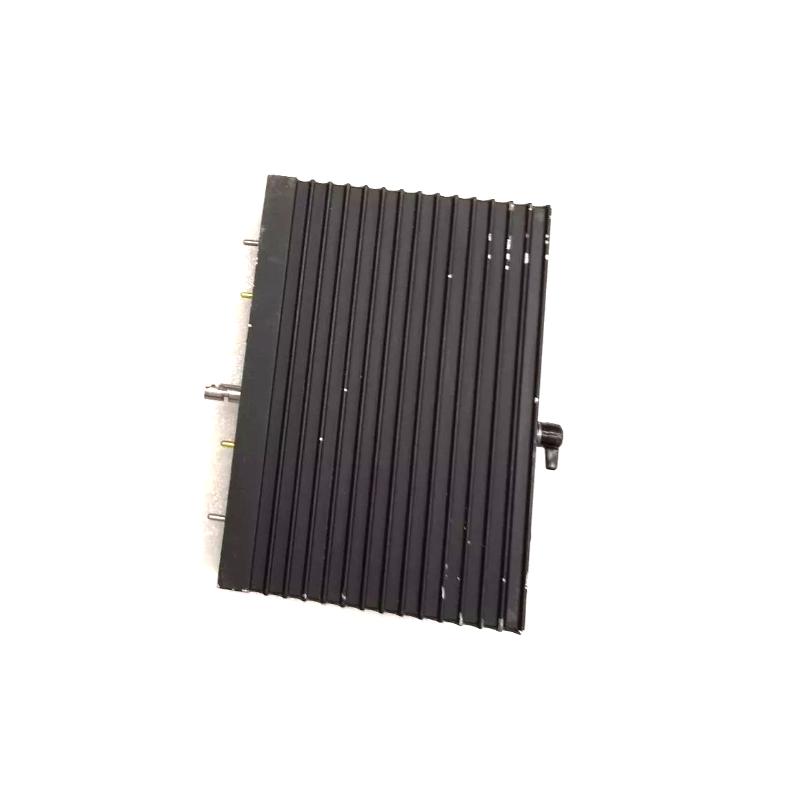

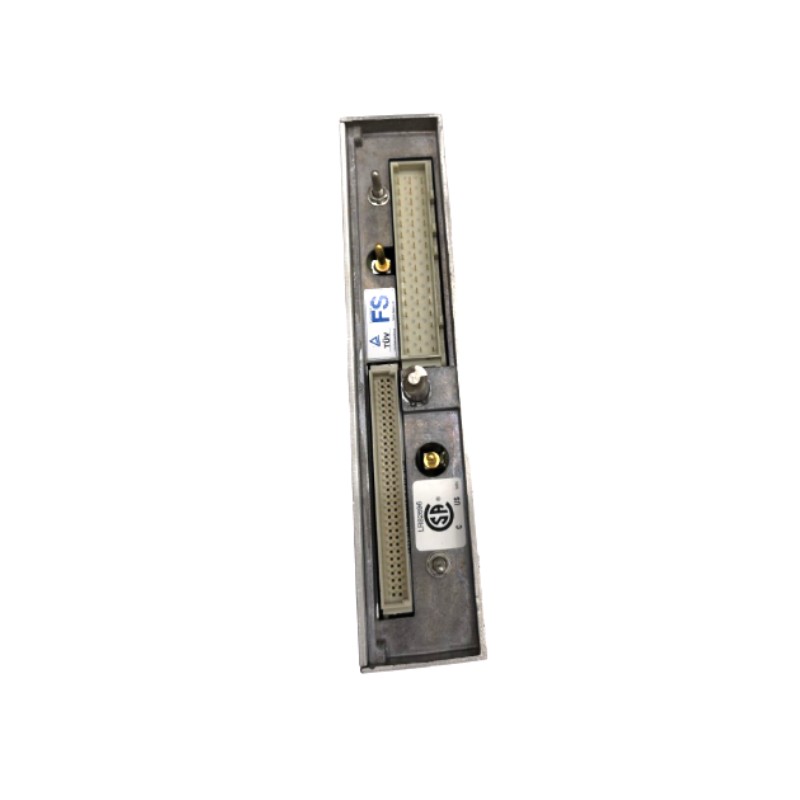

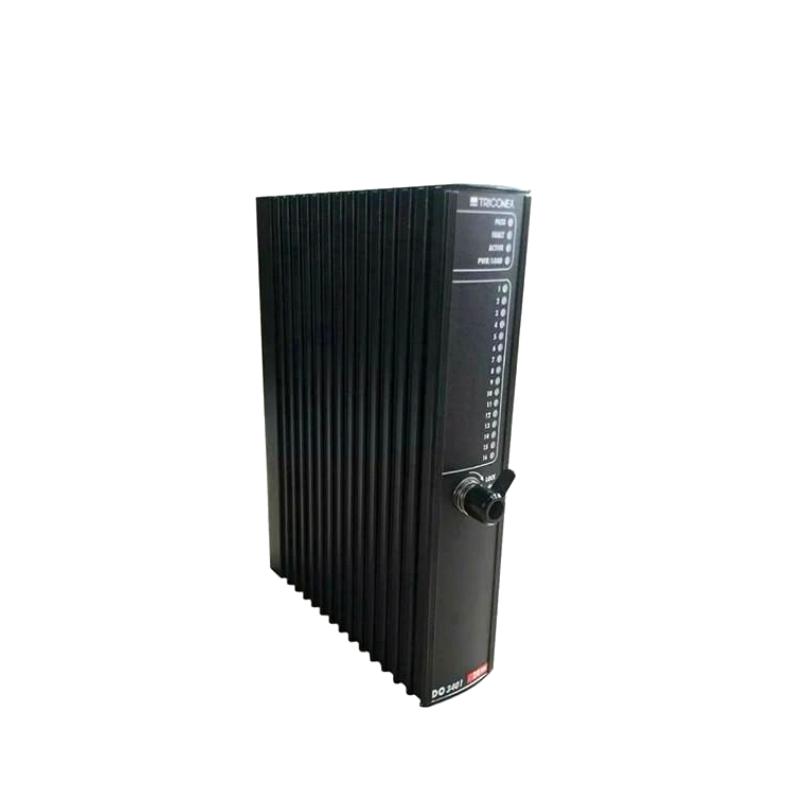

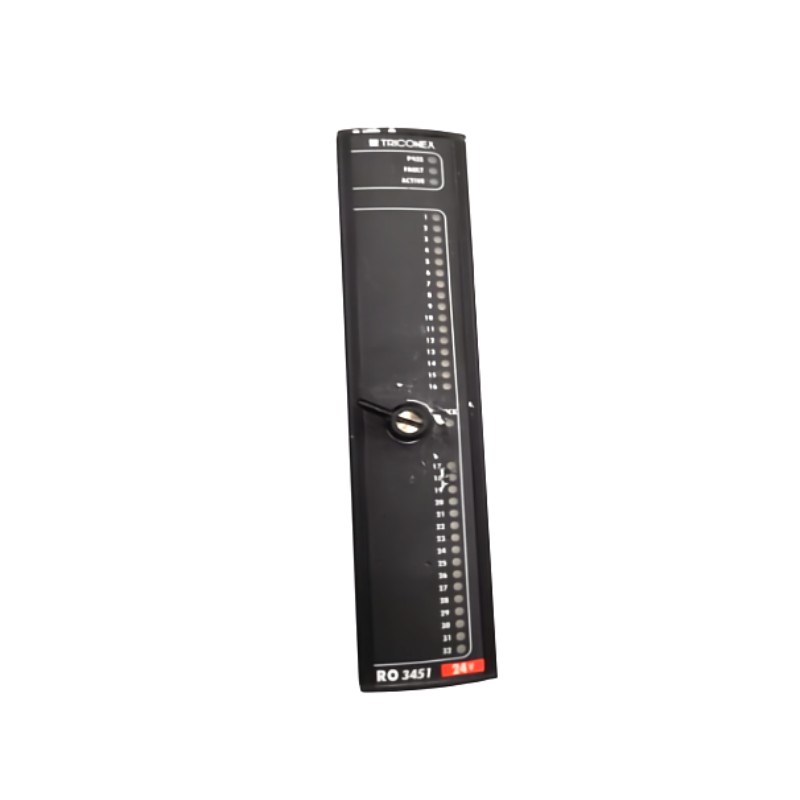

The Triconex 3451 is a solid‑state relay output module for safety‑critical systems. Brand: Triconex. Country of Origin: USA.
General Information
Part Number: 3451
Manufacturer: Triconex (Schneider Electric)
Brand: Triconex
Country of Origin: USA
Type: Solid‑State Relay Output Module
Channels: 32 output points
Function: Converts logic signals into field output switching
Power Specifications
Nominal Voltage: ±24 V
Maximum Switching Voltage: ±33 V
Max Switching Current: 0.7 A per channel
Off‑State Leakage: <100 µA
Communication & Interface
Signal Type: Solid‑state relay output
Interface: Backplane connection; terminal board for field wiring
Diagnostics: Self‑test and loop‑back monitoring
Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: 5% to 95% RH, non‑condensing
Dimensions & Weight
Dimensions: 62 × 420 × 177 mm
Weight: 2.32 kg
